Metra AXDI-GM5 2005 - 2006 GM and Pontiac LAN Data Bus interface with Navigation outputs
$69.99
In stock
SKU
AXDI-GM5
Expert Knowledge
Talk to a specialist
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified or amplified systems
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Retains all factory warning chimes
- Used in vehicles without OnStar or when not retaining OnStar

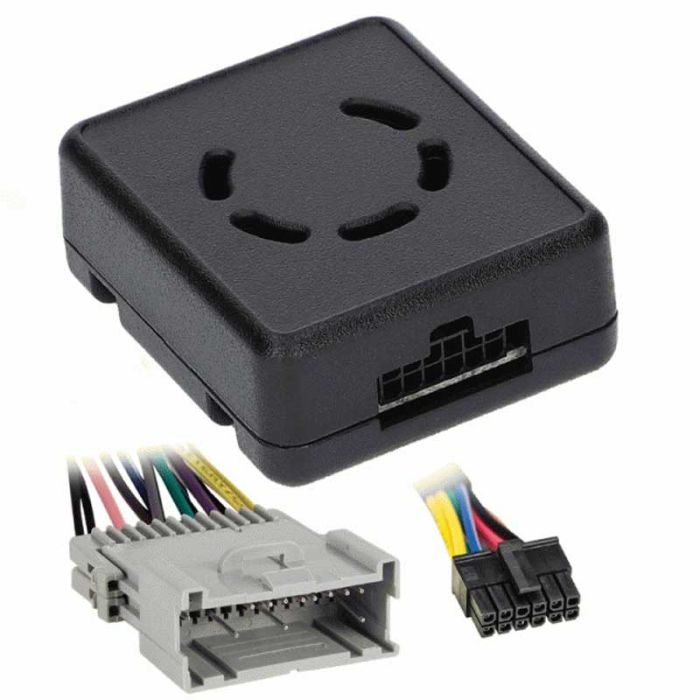

Unit includes: A) Interface, B) Bare lead to factory harness, and Instruction manual
Metra AXDI-GM5 2005 - 2006 GM and Pontiac LAN Data Bus interface with Navigation outputs
Vehicle Applications:
Metra AXDI-GM5 2005 - 2006 GM and Pontiac LAN Data Bus interface with Navigation outputs
-
Interface Features:
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified or amplified systems
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Retains all factory warning chimes
- Used in vehicles without OnStar or when not retaining OnStar
- Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange with White Stripe – Not used
- Blue – Antenna turn on
- Blue with White Stripe – Radio amplifier turn on
- Brown – Radio mute
- Light Green – Parking brake
- Blue with Pink Stripe – VSS (Vehicle speed sensor)
- Green with Violet Stripe - Reverse trigger (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
-
Kit Components:
- A) XSVI-2103-NAV Interface
- B) Bare lead to factory harness
- C) Instruction manual
-
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
-
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-GM10 GM Antenna adapter
- ASWC Steering wheel interface harness
Vehicle Applications:
-
Chevrolet:
- 2005 - 2006 Equinox
-
Pontiac:
- 2006 - 2006 Torrent
