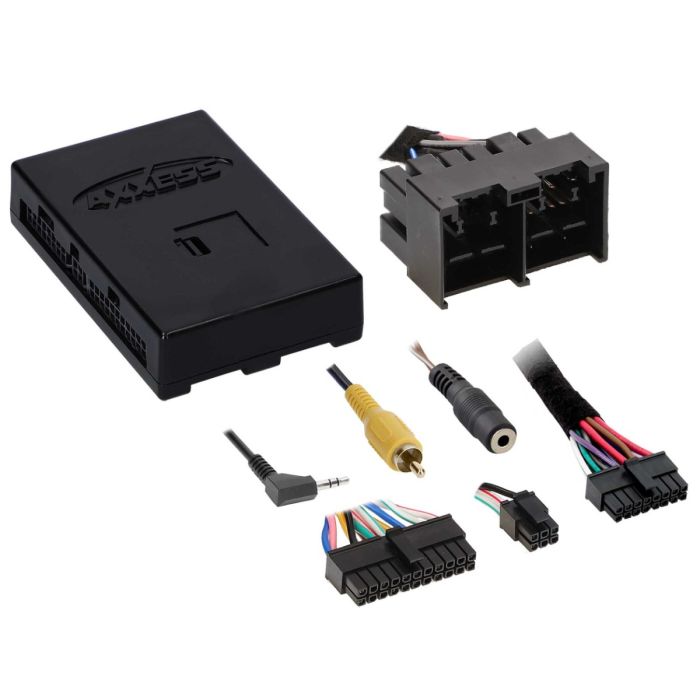

The Axxess AXDIS-FD3 provides the connections needed to install an aftermarket radio in select 2020–2023 Ford vehicles with non-amplified audio systems. It retains steering-wheel audio controls and retained accessory power while providing 12-volt, 10-amp accessory power and navigation outputs for the parking brake, reverse gear, and vehicle-speed signal. Its auto-detect steering-wheel-control technology simplifies setup, while the Micro-B USB port allows firmware updates. Vehicles with a factory amplifier require the separately sold Axxess AXA2B-FD1 amplifier-retention interface. The AXDIS-FD3 does not retain Ford SYNC.

Features:

• Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions except SYNC
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Interface is designed for non-amplified audio systems
• Does not retain SYNC
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains audio controls on the steering wheel (Aftermarket radio must have 3.5mm or two-wire steering wheel input)
• Axxess AXA2B-FD1 Ford amplifier integration interface
• Speaker level inputs from aftermarket radio
• USB updatable
• Retains balance and fade
• Axxess AXDIS-FD3 2020 - 2023 Ford radio replacement interface harness Instruction manual

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Orange/White - Dash Light Dimmer/Illumination
• Blue - Power Antenna turn on
• Blue/White - Subwoofer Amplifier turn on
• Brown - Mute connection
• Light green - (-) Parking brake lead
• Blue/Pink - VSS (Vehicle speed sensor)
• White RCA - Left Auxiliary input
• Red RCA - Right Auxiliary input
• Green/Purple - (+) Reverse trigger
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Fitments:

Ford
• 2021 - 2023 Ford Bronco
• 2021 - 2022 Ford E-350 Super Duty
• 2020 - 2022 Ford EcoSport
• 2020 - 2023 Ford Escape
• 2020 - 2022 Ford F-250 Super Duty
• 2020 - 2022 Ford F-350 Super Duty
• 2022 - 2023 Ford Maverick
• 2020 - 2023 Ford Transit-150
• 2020 - 2023 Ford Transit-250
• 2020 - 2023 Ford Transit-350
• 2020 - 2023 Ford Transit-350 HD
• 2020 - 2023 Ford Transit Connect
