Axxess AXDIS-VL42 2012 - and Up Volvo XC90 radio replacement CAN-BUS interface with steering wheel and navigation outputs

$269.99
Out of stock
SKU
AXDIS-VL42

Key Features

  • Volvo complete radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Integrated steering wheel control interface for direct plug in to aftermarket radio
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Retains the 3.5mm AUX-IN jack
  • Includes 5v factory amplifier step-down

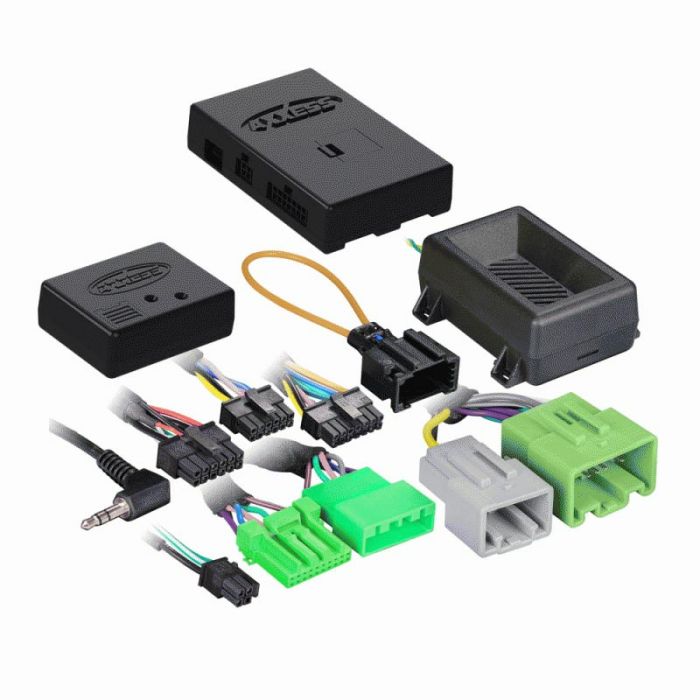

Unit includes: AXTC-FD1 Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, Female 3.5mm connector with stripped leads, and Instruction manual

Axxess AXDIS-VL42 2012 - and Up Volvo XC90 radio replacement CAN-BUS interface with steering wheel and navigation outputs
    Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Retains chimes
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Integrated steering wheel control interface for direct plug in to aftermarket radio
  • Retains memory settings even after battery disconnection or interface removal (non volatile memory)
  • Retains the 3.5mm AUX-IN jack
  • Includes 5v factory amplifier step-down
  • High level speaker input
  • USB updatable
  • Axxess AXTC-VW2 2015 - and Up Volkswagen radio replacement interface Instruction manual
    Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Brown - Mute connection
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
  • White RCA - Left Subwoofer signal
  • Red RCA - Center Channel signal (Note: If this jack is not present on the aftermarket radio, just leave be. Only the center channel speaker will be lost.)
    Fitments: Volvo
    • 2013 - 2016 Escape
    • 2012 - 2014 Focus
    • 2019 - and Up Ranger
    • 2014 - 2016 Transit Connect
More Information
Manufacturer Axxess
Part Number AXDIS-VL42
Integration Module Radio Replacement and Steering Wheel
Steering Wheel Control Input Yes, Built in control
Speaker level inputs Yes
Warranty 1 Year
Vehicle Year 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Vehicle Brand Volvo
Vehicle Model XC90
UPC Code 086429384716
Return period 30 days
Exchange period 30 days
