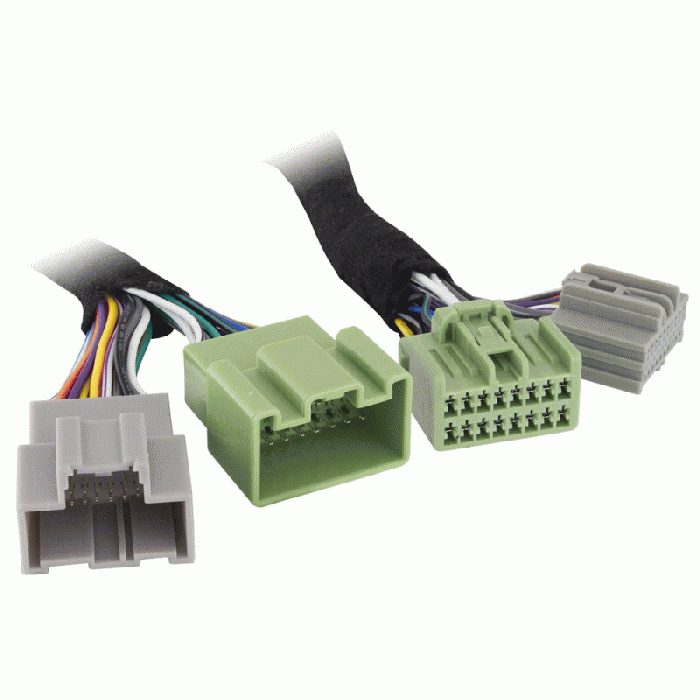

Metra AXEXH-GM09 Factory Amplifier Extension Harness for 2014 - and Up Chevrolet and GMC vehicles with M.O.S.T. Amplifier
$38.99
In stock
SKU
AXEXH-GM09
Expert Knowledge
Talk to a specialist
- Works for 2014 - and Up GM vehicles
- Used to install and aftermarket car stereo and bypass factory amplifier without cutting stock connections
- Includes plug for power, ground, speaker and subwoofer connections
- 208" Long leads for amplifier bypass
Unit includes: Extension Wire harness, Power harness, and Instruction manual
Metra AXEXH-GM09 Factory Amplifier Extension Harness for 2014 - and Up Chevrolet and GMC vehicles with M.O.S.T. Amplifier
Metra AXEXH-GM09 Factory Amplifier Extension Harness for 2014 - and Up Chevrolet and GMC vehicles with M.O.S.T. Amplifier
-
Features
- Used to install and aftermarket car stereo and bypass factory amplifier without cutting stock connections
- Includes plug for power, ground, speaker, center channel and subwoofer connections
- 72" Long leads for amplifier bypass
- Bypass Harness is plugged in at the factory M.O.S.T. Amplifier and ran to the location of the aftermarket radio or the aftermarket amplifier
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo wiring very easy
- No cutting of factory wiring needed
-
Connections:
- Yellow - 12V Constant
- Black - Ground
- White - Left Front Speaker (+) Mid-range and Woofer
- White with Black Stripe - (-) Mid-range and Woofer
- Brown - Not used
- Brown with Black Stripe - Not used
- Gray - Right Front Speaker (+) Mid-range and Woofer
- Gray with Black Stripe - Right Front Speaker (-) Mid-range and Woofer
- Pink - Center Front Speaker (+)
- Pink with Black Stripe - Center Front Speaker (-)
- Blue - Right Front Tweeter (+)
- Blue with Black Stripe - Right Front Tweeter (-)
- Red - Left Front Tweeter (+)
- Red with Black Stripe - Left Front Tweeter (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- Orange - dual voice coil 1 sub + (if equipped)
- Orange with Black Stripe - dual voice coil 1 - (if equipped)
- Orange - dual voice coil 2 sub + (if equipped)
- Orangewith Black Stripe - dual voice coil 2 sub - (if equipped)
- Yellow with Gray Stripe - not used
- Yellow with Black Stripe- not used
- 2003 - 2011 Element
- 2015 - 2018 Colorado
- 2019 - 2019 Silverado 1500-LD, 2500, 3500
- 2015 - 2018 Silverado 1500, 2500, 3500
- 2014 - 2014 Silverado 1500
- 2015 - 2017 Suburban
- 2015 - 2017 Tahoe
- 2015 - 2018 Canyon
- 2019 - 2019 Sierra 1500-Limited, 2500, 3500
- 2015 - 2018 Sierra 1500, 2500, 3500
- 2014 - 2014 Sierra 1500
- 2015 - 2016 Yukon, Yukon XL
- 2015 - 2016 Yukon Denali, Yukon XL Denali
-
Fitments:
-
Chevrolet
-
GMC
| Manufacturer | Metra |
|---|---|
| Part Number | AXEXH-GM09 |
| Warranty | 1 Year |
| Vehicle Year | 2014, 2015, 2016, 2017, 2018, 2019 |
| Vehicle Brand | Chevrolet, GMC |
| UPC Code | 086429386802 |
| Return period | 30 days |
| Exchange period | 30 days |
