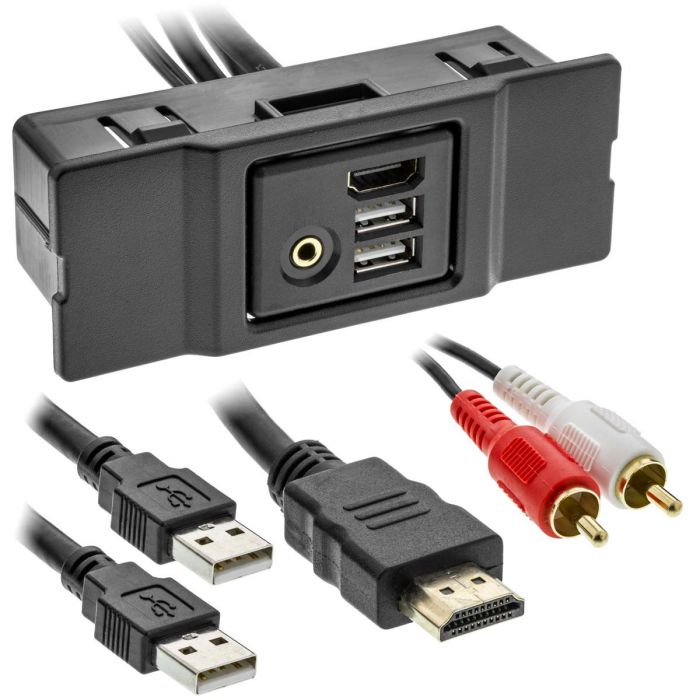

Axxess AXFD-USB3 USB Media Hub Replacement - Ford Edge 2011-2014

Install the AXFD-USB3 in factory Ford Edge trucks with rectangular cut-out. This panel jack fits Ford Edge 2011-2014 that have the factory Hub. The jack panel is designed to be used when replacing the factory radio and where you cannot retain the factory Hub due to the new radio. But now you can provide easy connections to your replacement car radio and have HDMI, Dual USB inputs, and 3.5mm audio input without ever touching the back of the radio.

Features:
• Replaces exiting Ford Edge Hub when replacing the factory radio to retain jacks to the new radio
• HDMI, (2) USB's and 3.5mm Auxiliary mount jack with extension cable
• Can be used with any radio that supports HDMI, USB and 3.5mm inputs
• 3.5 mm jack is a 2 ring type for audio connection
• Enables you to conveniently mount the USB on the dash and make connections to the rear of the radio
• Works with USB 2.0 storage devices
• Up to 12Mbps transfer rate
• Hot pluggable

Dimensions:
• Jack Panel Overall: 1-1/4" (H) x 1-11/16" (W) x 2-1/2" (D)
• Jack Panel Cutout: 1-1/16" (H) x 1-1/2" (W) x 2-1/2" (D)
• Trim Cutout: 1-9/16" (H) x 2-3/16" (W)
• Trim Overall: 1-3/4" (H) x 2-7/16" (W) x 1-1/4" (D)

Vehicle specific fitment:

Ford Edge
• 2011-2014
