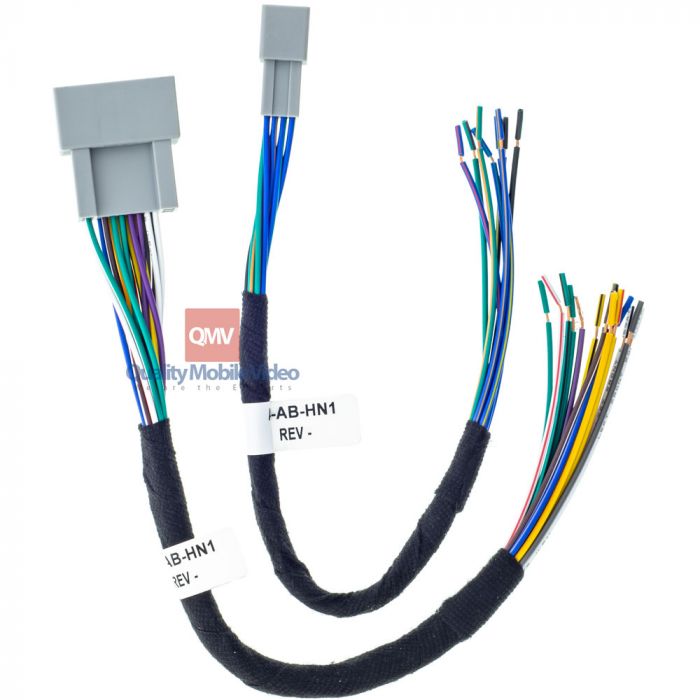

Axxess AX-AB-HN1 Amplifier Bypass Harness for 2016 - and Up Honda vehicles
$20.99
In stock
SKU
AX-AB-HN1
Expert Knowledge
Talk to a specialist
- Fits 2016 - and Up Honda vehicles
- T-harness is a basic and simple plug-n-play harness for easy installation of aftermarket amplifiers while bypassing the factory amp
- Provides connections to all factory speaker wires with an aftermarket amplifier
Unit Includes: Plug-and-Play Amp Bypass Harness
Axxess AX-AB-HN1 Amplifier Bypass Harness for 2016 - and Up Honda vehicles
Axxess AX-AB-HN1 Amplifier Bypass Harness for 2016 - and Up Honda vehicles
-
Features:
- Fits 2016 - and Up Honda vehicles
- T-harness is a basic and simple plug-n-play harness for easy installation of aftermarket amplifiers while bypassing the factory amp
- Provides connections to all factory speaker wires with an aftermarket amplifier
- Plug and play installation, requires no cutting of the factory speaker wires and amplifier connections
- Instruction Manual - Axxess AX-AB-HN1 Amplifier Bypass Harness Instruction manual
-
Tools Required:
- Panel Removal tool
- Wire Crimper
- Crimp connectors
- Digital volt meters
- Phillips Screwdriver
- Socket wrench
- Vehicle Applications:
- Honda
- 2018 - and Up Accord
- 2016 - 2018 Civic
- 2017 - 2018 CR-V
- 2019 - and Up Insight
- 2016 - 2018 Pilot
- Wire connections
- 18-Pin Harness
- White - Left Front Woofer (+)
- White with Black Stripe - Left Front Woofer (-)
- Gray - Front Woofer (+)
- Gray with Black Stripe - Front Woofer (-)
- Yellow with Blue Stripe - Left Front Tweeter (+)
- Yellow with Black Stripe - Left Front Tweeter (-)
- Yellow with Red Stripe - Right Front Tweeter (+)
- Yellow with Orange Stripe - Right Front Tweeter (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- Brown with White Stripe - Center Channel (+)
- Blue with Pink Stripe - Center Channel (-)
- Green with White Stripe - Subwoofer (+)
- White with Red Stripe - Subwoofer (-)
- 8-Pin Harness
- Blue with Orange Stripe - Left Satellite Speaker (+)
- Blue with Red Stripe - Left Satellite Speaker (-)
- Blue with Yellow Stripe - Right Satellite Speaker (+)
- Blue with Green Stripe - Right Satellite Speaker (-)
- Green with Orange Stripe - Rear Left Tweeter (+)
- Green with Red Stripe - Rear Left Tweeter (-)
- Black with Yellow Stripe - Rear Right Tweeter (+)
- Black with Green Stripe - Rear Right Tweeter (-)
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-AB-HN1 |
| Wiring harness function | Bypass OEM Amplifier |
| UPC Code | 086429373475 |
| Return period | 30 days |
| Exchange period | 30 days |
