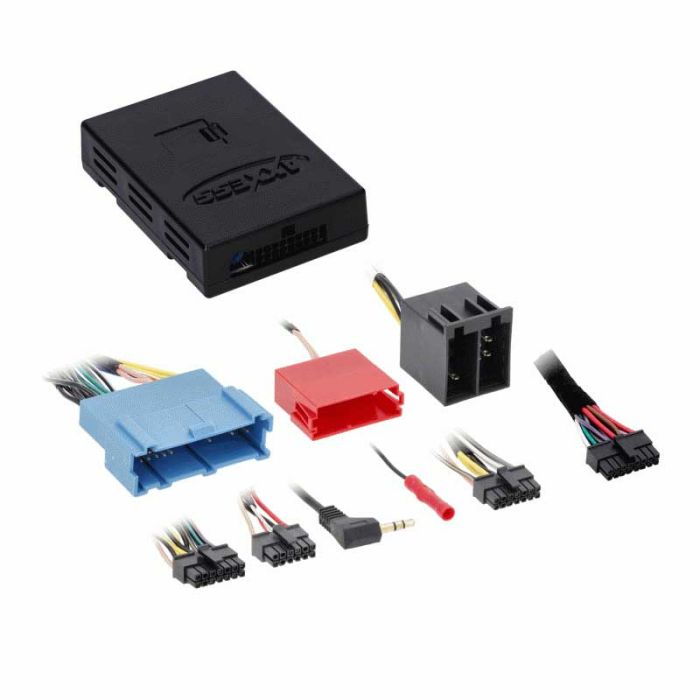

Metra AXGM-16 1996 - 2007 Cadillac Radio Replacement Interface for Onstar and Amplified Audio systems

The AXGM-16 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle and OnStar system. The GMOS-06 is designed for 1996 - 2007 Cadillac vehicles that use the GM Class II data bus system. The interface retains full functionality of the OnStar system as well as all safety and warning chimes.

The AXGM-16 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting chime and OnStar volumes as well. In addition to these features, the AXGM-16 now has the required outputs for the installation of a navigation radio.

Features:
• Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in Amplified audio systems
• Retains chimes
• Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
• ASWC-1 harness included (ASWC-1 not included)
• Adjustable volume for chimes and OnStar
• Retains OnStar and OEM Bluetooth
• High level speaker input
• USB updatable
• Retains balance and fade
• Instruction Manual - Metra AXGM-16 1996 - 2007 Cadillac Radio Replacement Interface

Connections:
• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange/White – Dash Light Dimmer/Illumination
• Blue/White – Amplifier turn on
• Brown - Mute connection
• Light green – (-) Parking brake lead
• Blue/Pink – VSS (Vehicle speed sensor)
• Black/Yellow - OnStar volume adjustment
• Black/White - Ground if noise is present
• Green/Purple – (+) Reverse trigger
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Fitments:

Cadillac
• 1997 - 2001 Catera
• 2003 - 2006 CTS
• 1998 - 2005 Deville
• 1998 - 2002 Eldorado
• 1998 - 2004 Seville
• 2004 - 2006 SRX with RPO codes u2R U2S
