Axxess AXHN-3 Car Stereo and Steering Wheel Interface for 2013 - 2017 Honda Accord
$229.99
In stock
SKU
AXHN-3
Expert Knowledge
Talk to a specialist
- Audio interface harness and control box for 2013 - 2017 Honda Accord
- Complete car stereo integration harness for non-amplified and amplified audio systems
- Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
- Retains audio controls on the steering wheel
- Retains factory backup camera and Honda LaneWatch™ camera
- Provides NAV outputs (parking brake, reverse, and speed sense
- Retain factory AUX IN
- High level speaker inputs for connections to factory speakers
- Low level subwoofer connections
- Retains balance and fade
- Pre-wired for Axxess AXSWC2 steering wheel control interface (sold separately)
- Note: Does not retain factory clock and date

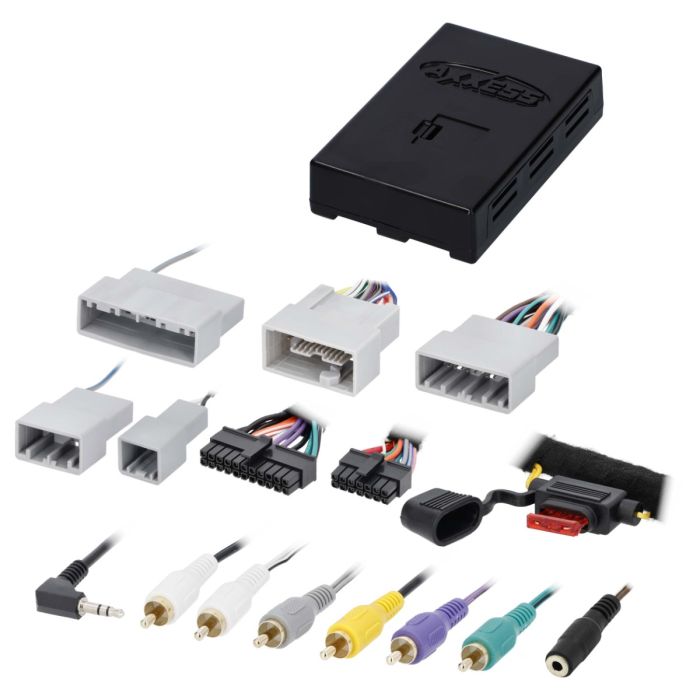

Unit includes: AXHN-3 interface module, Vehicle-specific wiring harness, 3.5mm auxiliary pigtail, Complete installation instructions, and Instruction manual
The Axxess AXHN-3 is a highly reliable data interface that allows you to retain critical factory vehicle functions when replacing the OEM Honda Accord radio with an aftermarket head unit.
Engineered specifically for the 2013 - 2017 Honda Accord, this interface supports non-amplified and amplified factory audio systems. It delivers seamless integration for steering wheel audio controls, NAV outputs, and accessory power — making it an ideal solution for professional installers and DIYers using radios purchased from online retailers.
Axxess AXHN-3 Car Stereo and Steering Wheel Interface for 2013 - 2017 Honda Accord- Features
- Designed for amplified and non-amplified systems
- Provides 12-volt 10-amp accessory power output
- Retains R.A.P. (Retained Accessory Power)
- Provides NAV outputs (parking brake and reverse)
- Retains audio controls on the steering wheel
- Retains factory backup camera and Honda LaneWatch™ camera
- Retains factory AUX-IN jack
- Retains balance and fade
- Pre-wired for Axxess steering wheel control interface (sold separately)
- Retains and controls personalization settings via Bluetooth® wireless technology when used with the AX-CUSTOM-BT app for smartphones and tablets
- Micro “B” USB updatable
- 1-year limited warranty
- Pre-wired for Axxess AXSWC2 steering wheel control interface (sold separately)
- Note: Does not retain factory clock and date
- Axxess AXHN-3 Car Stereo and Steering Wheel Interface for 2013 - 2017 Honda Accord Instruction manual
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Blue - Power antenna turn on (+)
- Light Green - Parking brake wire(-)
- Blue with Pink Stripe - VSS (Vehicle speed sensor)
- Green with Purple Stripe - Reverse wire (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- White RCA – Left Subwoofer signal
- Red RCA – Right Subwoofer signal
- Compatible With:
- Honda
- 2013 - 2017 Accord
| Manufacturer | Axxess |
|---|---|
| Part Number | AXHN-3 |
| Return period | 30 days |
| Exchange period | 30 days |
