Axxess AXTC-FD1 2007 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
$139.99
In stock
SKU
AXTC-FD1
Expert Knowledge
Talk to a specialist
- Ford complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Interface is designed for both non-amplified and amplified models (including SYNC/Sony/THX)
- Integrated steering wheel control interface for direct plug in to aftermarket radio
- Provides NAV outputs (parking brake, reverse, and speed sense)
- Retains the factory Subwoofer and Center channel

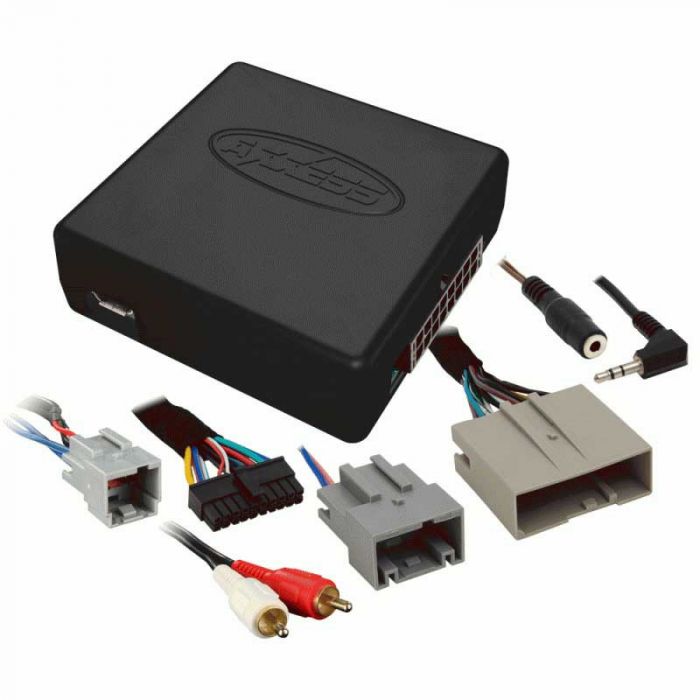

Unit includes: AXTC-FD1 Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, Female 3.5mm connector with stripped leads, and Instruction manual
Axxess AXTC-FD1 2007 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
Fitments:
Ford
Axxess AXTC-FD1 2007 - and Up Ford radio replacement CAN-BUS interface with steering wheel and navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in both non-amplified and amplified models (including Sony/THX)
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Integrated steering wheel control interface for direct plug in to aftermarket radio
- Retains RSE (rear seat entertainment)
- Retains SAT (satellite radio)
- Retains SYNC
- Retains the factory AUX-IN jack
- High level speaker input
- USB updatable
- Retains balance and fade (excluding Sony/THX)
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Black/Yellow - OnStar volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
- White RCA - Left Subwoofer signal
- Red RCA - Center Channel signal (Note: If this jack is not present on the aftermarket radio, just leave be. Only the center channel speaker will be lost.)
Fitments:
Ford
- 2007 - 2010 Edge
- 2008 - 2012 Escape
- 2007 - 2014 Expedition
- 2009 - 2010 Explorer (with factory navigation)
- 2009 - 2010 Explorer Sport Trac (with factory navigation)
- 2009 - 2012 F150
- 2013 - 2013 F150 STX/FX2 base/XLT base
- 2012 - 2012 F150 STX/XLT base
- 2011 - 2012 F250/F350/F450/F550
- 2013 - 2016 F250/F350/F450/F550 (must have factory CD player)
- 2016 - and Up F650/F750 (must have factory CD player)
- 2008 - 2011 Focus
- 2010 - 2012 Fusion
- 2009 - 2014 Mustang
- 2010 - 2012 Taurus
- Lincoln
- 2007 - 2010 MKX
- 2007 - 2009 MKZ
- 2007 - 2014 Navigator
- Mazda
- 2008 - 2011 Tribute
- Mercury
- 2008 - 2011 Mariner
- 2008 - 2011 Milan
| Manufacturer | Axxess |
|---|---|
| Part Number | AXTC-FD1 |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, Built in control |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
