Axxess AXTC-TY2 2018 - 2024 Toyota radio replacement interface with steering wheel and navigation outputs
$149.99
In stock
SKU
AXTC-TY2
Expert Knowledge
Talk to a specialist
- 2018 - 2024 Toyota complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Retains R.A.P. (Retained Accessory Power)
- Retains steering wheel controls
- Provides NAV outputs (parking brake, reverse, and speed sense)
- Retains the factory AUX-IN jack
- Designed for amplified and non-amplified systems
Upgrade the factory radio in select 2018–2024 Toyota vehicles with the Axxess AXTC-TY2 radio replacement interface. Designed for amplified and non-amplified systems, this interface retains steering wheel audio controls, retained accessory power, and the factory backup camera when equipped. Its built-in auto-detection simplifies setup by identifying the vehicle and aftermarket radio, while dedicated parking brake, reverse, and vehicle-speed outputs support compatible navigation receivers. The AXTC-TY2 also provides a 12-volt, 10-amp accessory output, supports dual-assignment of steering wheel buttons, and features a Micro-B USB connection for firmware updates.

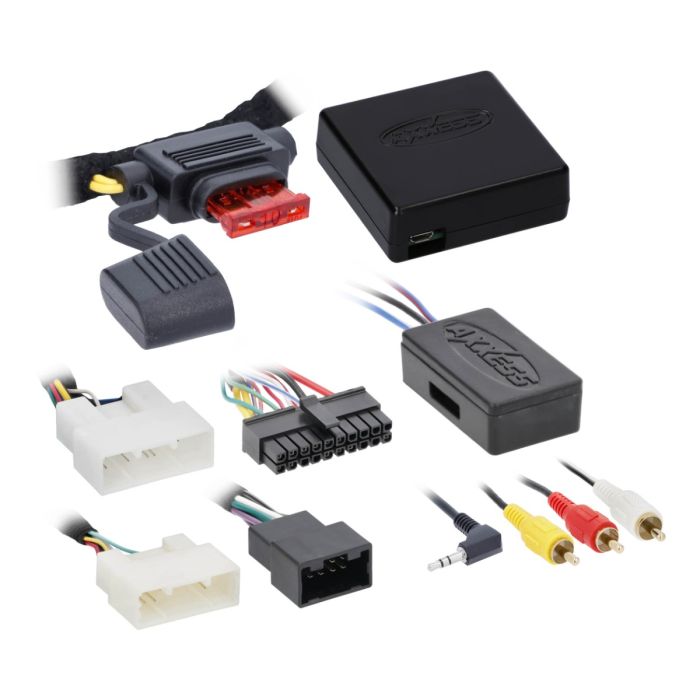

Unit includes: AXTC-TY2 Interface control box, AXTC-TY2 harness, Female 3.5mm connector with stripped lead, AX-CAM6V, Backup camera harness and Instruction manualAxxess AXTC-TY2 2018 - 2024 Toyota radio replacement interface with steering wheel and navigation outputs
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Auto-detect feature - automatically detects the vehicle type, radio connection, and preset controls
- Ability to dual-assign steering wheel control buttons
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified and non-amplified audio systems
- Retains steering controls on the steering wheel for use with aftermarket radio
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Retains the factory AUX-IN jack
- Retains the factory backup camera
- Includes an AX-CAM6V 12-to-6V step-down for the factory camera
- High level speaker input
- USB updatable
- Retains balance and fade (excludes amplified models)
- Axxess AXTC-TY2 2018 - 2024 Toyota radio replacement interface Instruction manual
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Blue/White - Amplifier turn on
- Blue - Power antenna turn on
- Brown - Mute connection
- Yellow RCA - Factory backup camera
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Fitments:
Toyota
- 2020 - 2024 Toyota 4Runner
- 2019 - 2022 Toyota Avalon
- 2019 - 2022 Toyota C-HR
- 2018 - 2024 Toyota Camry
- 2020 - 2021 Toyota Corolla
- 2019 - 2021 Toyota RAV4
- 2020 - 2022 Toyota Sequoia
- 2018 - 2023 Toyota Sienna
- 2020 - 2023 Toyota Tacoma
- 2020 - 2021 Toyota Tundra
| Manufacturer | Axxess |
|---|---|
| Part Number | AXTC-TY2 |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Retain OEM Amplifier, Retain OE AUX Input, Retain OEM Backup Camera, Retain OEM Subwoofer, Retain Factory Steering Wheel Controls, Replace Factory Radio |
| Steering Wheel Control | Yes, Built in control |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2018, 2019, 2020, 2021, 2022 |
| Vehicle Brand | Toyota |
| UPC Code | 086429440535 |
| Return period | 30 days |
| Exchange period | 30 days |
