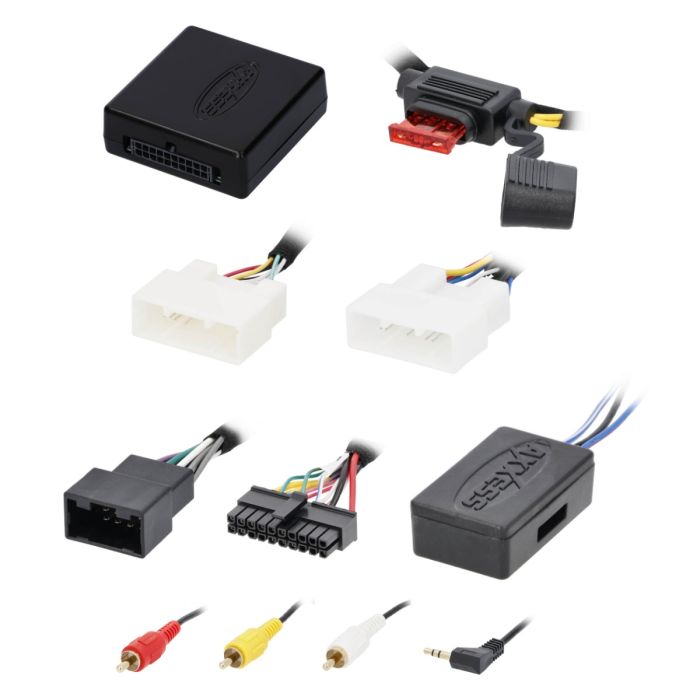

Replace the factory radio in select 2018–2024 Toyota vehicles while retaining important factory functions with the Axxess AXTC-TY2BT radio replacement interface. Designed for amplified and non-amplified systems, it retains steering-wheel audio controls, retained accessory power, supported vehicle personalization settings, and the factory backup camera when equipped. Bluetooth connectivity works with the free AX-CUSTOM-BT mobile app to retain and adjust compatible vehicle settings; it is not intended for audio streaming. Patented auto-detection identifies the vehicle, aftermarket radio, and preset steering-wheel controls, while supporting dual assignment of compatible buttons. The interface also provides a 12-volt, 10-amp accessory output and parking-brake, reverse, and vehicle-speed navigation outputs. It works with major aftermarket radio brands, retains balance and fade in non-amplified systems, and features a Micro-B USB port for firmware updates

Features:

• Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
• Retains and controls personalization settings via Bluetooth® wireless technology when used with the free AX-CUSTOM-BT app for smartphones and tablets
• Auto-detect feature - automatically detects the vehicle type, radio connection, and preset controls
• Ability to dual-assign steering wheel control buttons
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in amplified and non-amplified audio systems
• Retains steering controls on the steering wheel for use with aftermarket radio
• Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
• Retains the factory AUX-IN jack
• Retains the factory backup camera
• Includes an AX-CAM6V 12-to-6V step-down for the factory camera
• High level speaker input
• USB updatable
• Retains balance and fade (excludes amplified models)
• Axxess AXTC-TY2BT 2018 - 2024 Toyota radio replacement interface Instruction manual

Connections:

• Yellow - 12V Constant
• Red - 12V Accessory
• Black - Ground
• Blue/White - Amplifier turn on
• Blue - Power antenna turn on
• Brown - Mute connection
• Yellow RCA - Factory backup camera
• White RCA - Left Auxiliary input
• Red RCA - Right Auxiliary input
• Green/Purple - (+) Reverse trigger
• Green - Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White - Left Front Speaker (+)
• White with Black Stripe - Left Front Speaker (-)
• Purple - Right Rear Speaker (+)
• Purple with Black Stripe - Right Rear Speaker (-)
• Gray - Right Front Speaker (+)
• Gray with Black Stripe - Right Front Speaker (-)

Fitments:

Toyota

• 2020 - 2024 Toyota 4Runner
• 2019 - 2022 Toyota Avalon
• 2019 - 2022 Toyota C-HR
• 2018 - 2024 Toyota Camry
• 2020 - 2021 Toyota Corolla
• 2019 - 2021 Toyota RAV4
• 2020 - 2022 Toyota Sequoia
• 2018 - 2023 Toyota Sienna
• 2020 - 2023 Toyota Tacoma
• 2020 - 2021 Toyota Tundra
