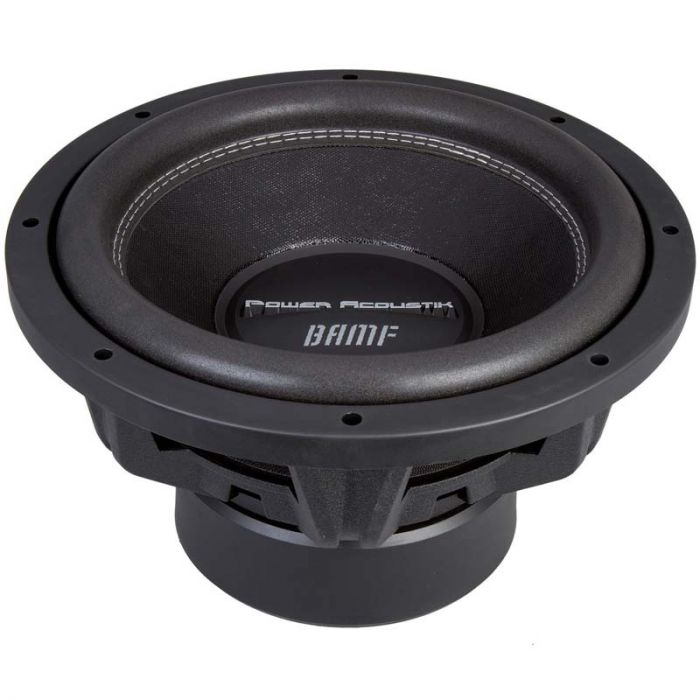

Power Acoustik BAMF-122 12" Car Subwoofer - Dual 2 Ohm

$139.99
In stock
SKU
BAMF122

Key Features

  • 12" BAMF Series Subwoofer with dual 2 ohm voice-coils
  • 3” 4-Layer Voice Coil with Direct Connect Wire
  • Overcompensating Motor Structure
  • Extended excursion polyether foam surround
  • Maximum Power Peak: 3,500 Watts
  • Maximum Power RMS: 1,750 Watts
  • Mounting depth: 6 inches
Unit Includes: 12 inch car subwoofer driver, 1-pc gasket and trim ring, mounting hardware and Instruction manual

Power Acoustik BAMF-122 12" Car Subwoofer - Dual 2 Ohm

Features:
  • 12" BAMF Series Subwoofer with dual 2 ohm voice-coils
  • 3” 4-Layer Voice Coil with Direct Connect Wire increases power handling
  • Stitched Voice Coil leads prevent damage during high excursion levels
  • Overcompensating Motor Structure for Increased Magnetic Strength
  • Non-Transfer Spruce Pulp Cone with UV and Chemical Protection
  • Cone is designed with strength in mind and the dual Poly-Cotton suspension dampens violent accelerations
  • Extended excursion polyether foam surround to facilitate high levels of excursion
  • Stitched and glued surround to cone joints for the strongest bonding and to prevent delamination
  • 12mm T-Yoke and Top Plate improve low frequency response
  • Vented T-Yoke and Frame reduces voice coil heat build-up and improves power handling
  • Constructed with High-Temperature tolerant adhesives resist thermal failure
  • 8 AWG Binding post terminal
  • Vented pole piece
  • Non-magnetic non-resonant die-cast aluminum frame for rigidity and thermal dissipation
  • 1-pc gasket and trim ring with concealed mounting holes
    Power Handling Max:
  • Maximum Power: 3,500 Watts
    Power Handling RMS:
  • 1,750 Watts nominal continuous power handling RMS
    Quick Specs
  • Nominal Impedance: Dual 2 -Ohm
  • Frequency Response: 20 Hz - 600 Hz
  • Sensitivity: 81dB /watt at 1m
  • Magnet weight: 204 ounces
Dimensions:
  • Mounting depth: 6 inches
  • Cutout diameter: 11-1/8 inches
More Information
Manufacturer Power Acoustik
Part Number BAMF-122
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 2 ohm
Sensitivity 81 dB
Frequency Response 20 Hz - 600 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 1501 - 2500 Watts
Power Handling Peak 3500 Watts
Shallow Mount Subwoofer No
Mounting Depth 6.00 Inches
Sealed Enclosure Recommended Size 1.5 ft3
Ported Enclosure Recommended Size 2.5 ft3
Color Black
Warranty 1 Year
UPC Code 709483050273
Return period 30 days
Exchange period 30 days
