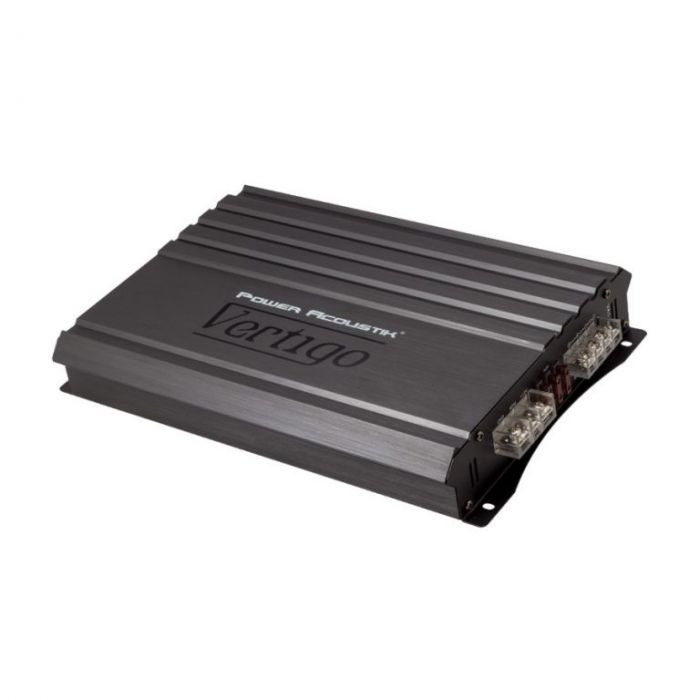

Power Acoustik Vertigo Series VA1-1600D Class-D Monoblock Amplifier - 1,600 Watts
Expert Knowledge
Talk to a specialist
- Class-D Monoblock Amplifier
- Designed as a dedicated full range audio amplifier
- Stable 2 ohm and 4 ohm loads
- 2-Ohms: 360 watts x 1
- 4-Ohms: 200 watts x 1
- High/Speaker Level & Low Level/RCA Input
Power Acoustik Vertigo Series VA1-1600D Class-D Monoblock Amplifier - 1,600 Watts
- Features:
- Class-D Monoblock Amplifier
- Military Grade SMT PCB Maintains Dynamic Performance
- 200mV-6V Low Level/RCA Input w/ Bridged Operation Outputs
- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- 12dB Bass Boost Increases Low Octave Harmonics
- Barrier Strip Wire Terminals, 4g Power & 8g Speaker Outputs
- Inputs and Outputs:
- RCA low level inputs and outputs (250 mV - 6 V)
- Input sensitivity is 250 mV to 6V
- 8 AWG to 18 AWG speaker connections
- 4 AWG to 8 AWG power connections (4 Gauge Recommended)
- MAX Power Output:
- 1,600 watts
- RMS Power Output:
- 2-Ohms: 360 watts x 1
- 4-Ohms: 200 watts x 1
- Built in Crossover:
- Variable low-pass filter: 12 dB/octave
- Subsonic filter: 12 dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost
- Dimensions:
- Overall Dimensions: 8.75"W x 9"L x 2"H
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | VA1-1600D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 2 ohm | 360.00 |
| Total RMS Power at 4 ohm | 200.00 |
| RMS Output per Channel (x1 at 4 ohms) | 200.00 Watts |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
Car amplifier installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Amplifier Installation basics
Let's start with the basics of adding or installing a car amplifier. First you will need to plan your installation and power wiring, this usually is the most difficult part of the installation for most.
How to choose the proper wire size explained
What size power wire do I need for my amplifier? Well, that depends on the length of the wire and the power consumption of the amplifier. We walk you through how to choose the right gauge wire and wire material depending on your amplifier installation requirements.
How to wire speakers and subwoofers to your new amplifier
In our third video we demonstrate the various ways you can wire speakers and amplifiers to all types of amplifiers. There different ways to do this depending on the type of amplifier you choose to purchase.
What is gain? How do I set it properly?
In our fourth video we demonstrate how to set the gains on your amplifier to prevent damage to your speakers, subwoofers and even possibly your new amplifier. Using a portable oscilloscope we show you how to set your gains.
