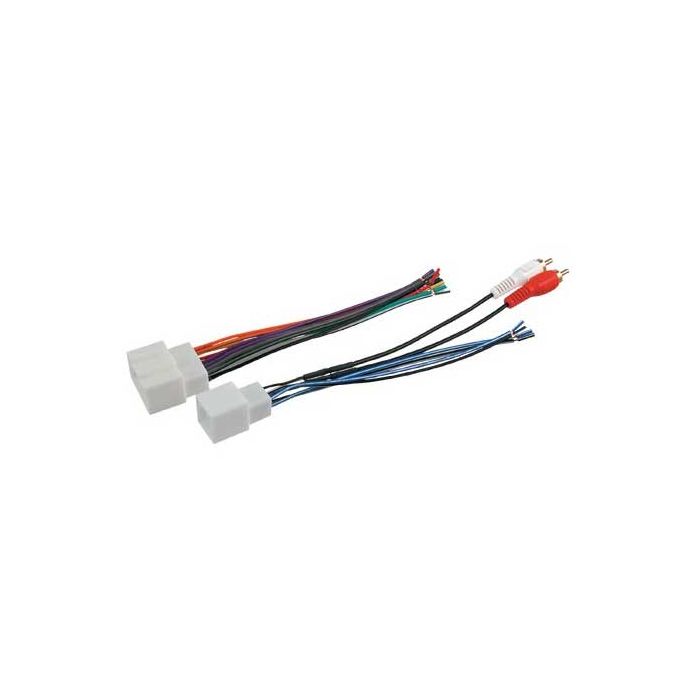

Best Kits BHA5700R Car Stereo Wiring Harness for 1998 - 2008 Ford, Lincoln and Mercury vehicles

Description

Unit includes: Car Stereo harness

Best Kits BHA5700r Car Stereo Wiring Harness for 1998 - 2008 Ford, Lincoln and Mercury vehicles

Features

For 1998 - 2008 Ford and Lincoln vehicles
Used to install an aftermarket car stereo without cutting stock connections
Designed for vehicles with premium audio systems and factory amplifier
Uses high level speaker outputs for speaker connections
Includes 16 pin plug for power and rear speaker connections
Includes 8 pin plug for front and subwoofer speaker connections
Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
ABS plastic for maximum reliability
Factory OEM quality
Makes replacing the factory car stereo wiring very easy
No cutting of factory wiring needed

Connections:

Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Blue - Power Antenna
Orange - Dash Light Dimmer/Illumination
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)
White RCA - Left Subwoofer (Signal)
Red - Right Subwoofer (Signal)

Fitments:

Ford:

1998 - 2002 Crown Victoria
2001 - 2004 Escape
2000 - 2004 Excursion
1998 - 2002 Expedition
1998 - 2005 Explorer
2000 - 2006 Explorer Sport Trac
1999 - 2003 F-150
2004 - 2006 F-150 Heritage Model
1999 - 2004 F-250
1999 - 2004 F-350
1999 - 2004 F-450
2005 - 2007 Five Hundred
2001 - 2003 Mustang
1999 - 2004 Super Duty
2017 Super Duty (With 4.3 inch factory screen)
2002 - 2005 Thunderbird

Lincoln:

2003 - 2005 Aviator
2002 - 2003 Blackwood
1998 - 2002 Continental
2000 - 2006 LS
1998 - 2002 Navigator
1998 - 2002 Town Car

Lincoln:

2001 - 2002 Cougar
1998 - 2002 Grand Marquis
1998 - 2005 Mountaineer
2000 - 2002 Villager

Specifications

More Information
Part Number	BHA5700R
Warranty	1 Year
Vehicle Year	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
Vehicle Brand	Ford, Lincoln, Mercury
UPC Code	60909878596
Return period	30 days
Exchange period	30 days
