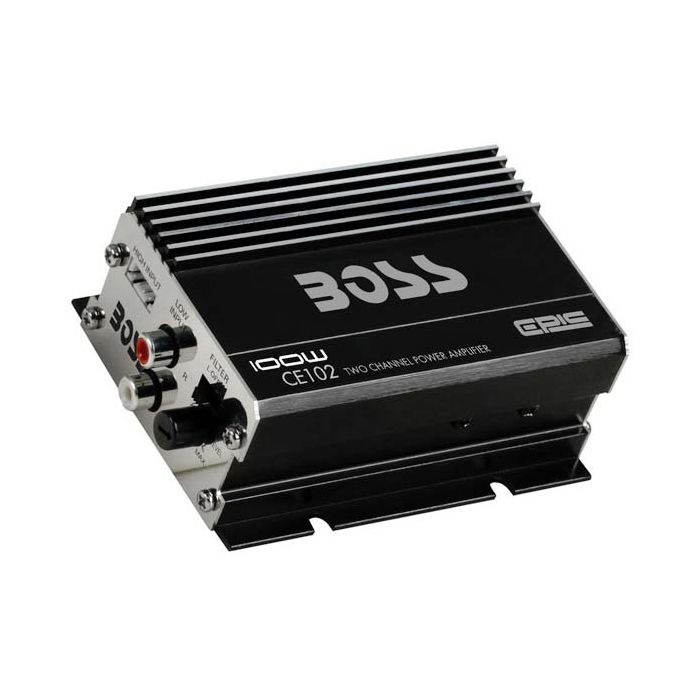

Boss Audio CE102 Chaos Epic Compact All-Terrain Class AB Amp (2 Channels, 100 Watts)
$31.99
In stock
SKU
CE102
Expert Knowledge
Talk to a specialist
- Full Range Class AB car 2-channel amplifier
- Compact design for use in space limited applications
- 38 watts RMS x 2 channel at 4-Ohms
- MOSFET power supply
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual
Boss Audio CE102 Chaos Epic Compact All-Terrain Class AB Amp (2 Channels, 100 Watts)
Boss Audio CE102 Chaos Epic Compact All-Terrain Class AB Amp (2 Channels, 100 Watts)
-
Features:
- Full Range Class AB car amplifier
- Incredibly small making it perfect for Motorcycles and other applications where size is an issue
- 2 channel output to drive stereo speakers
- MOSFET power supply
- Power and protection LEDs
- Low and high-level inputs
- Fixed low-pass crossover
- Fixed high-pass crossover
- Frequency resp: 20 Hz to 20 kHz ± 1 dB
- Signal to noise ratio: 90 dB
- Channel separation: 60 dB
- Fuse protected
-
Inputs and Outputs:
- 2 - Nickel-plated RCA low level inputs (150 mV - 4 V)
- 2 - 4 Wire speaker level inputs (5V - 10 V)
- Input sensitivity is 150 mV to 4V
- 18 AWG speaker connections
- 16 AWG power connections
-
Max Power Output:
- 4-Ohms: 100 watts x 2 channel
-
RMS Power Output:
- 4-Ohms: 38 watts x 2 channel
- 2-Ohms: 50 watts x 2 channel
-
Built in Crossover:
- Variable high-pass filter: 200 Hz @ 12 dB/octave
- Variable low-pass filter: 80 Hz @ 12 dB/octave
- All Pass
-
Dimensions:
- Overall Dimensions: 4” (L) x 1.625” (H) x 3.125” (W)
-
Current consumption:
- Recommended Fuse: 20 amp
| Manufacturer | Boss Audio |
|---|---|
| Part Number | CE102 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 2 Channel |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 150 mV - 12 V |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 791489118507 |
| Return period | 30 days |
| Exchange period | 30 days |
