DISCONTINUED - Boyo A-PASS Touch Keyless Vehicle Digital Touch Keypad

DISCONTINUED - Boyo A-PASS Touch Keyless Vehicle Digital Touch Keypad

Boyo A-PASS Touch Keyless Vehicle Digital Touch Keypad

More Views

Boyo
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo A-PASS Product Highlights

Boyo A-PASS Touch Keyless Vehicle Digital Touch Keypad
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: Remote Control, Window touch panel, Wiring harness, and Instruction manual

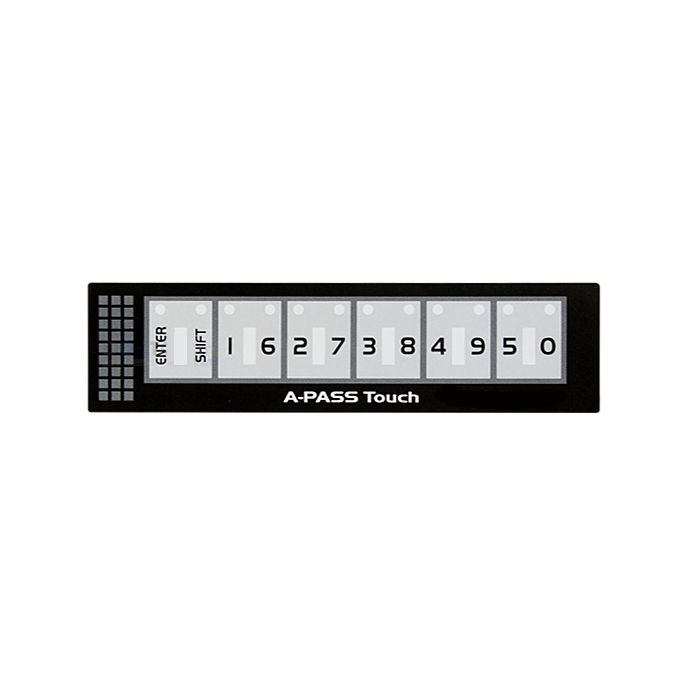

Boyo A-PASS Touch Keyless Vehicle Digital Touch Keypad

  • A-Pass is a simple add-on module that will sit behind the front windshield of your car. You can assign your own 4-10 digit PIN CODE which you can change at any time. In the event that you lock the keys inside, you can simply "touch" your PIN code on the module from outside your front windshield. Once the last digit is accepted, you will hear two chirps from the the siren and the door will unlock automatically.
  • Easy Installation
  • Works inside the vehicle through the windshield
  • Intelligent Software (Rainy, Snow, Hot, Cold weather)
  • Scanner function(Blue color LED)
  • Simple install inside the window
  • Pin code(4-10 digits)
  • Simple to change the Pin code
  • Slim and compact size



Installation process

Black: (-) System Ground Input

This wire should be connected to a ground source. Please ensure that no paint or rust exists on the surface where the wire will be attached. Please, also, ensure that the wire is securely fastened to the ground source.

Red: (+12V) System Power Input

This wire should be connected to a constant +12V.

Brown: (-) Unlock Output

This wire provides a negative (-) pulse to lock the vehicle's doors. This wire can also be used to control the Arm Trigger of some aftermarket security products. Please refer to the Installer Programmable Options for programming details.

Orange: (-) Lock Output

This wire provides a negative (-) pulse to unlock the vehicle's doors. This wire can also be used to control the Disarm Trigger of some aftermarket security products. Please refer to the Installer Programmable Options for programming details.

Blue: (-) Factory Alarm Rearm Output

This wire provides a negative (-) pulse to rearm the vehicle's factory alarm after the lock pulse has occurred on the module. The pulse duration is 0.8 second.

White: (-) Factory Alarm Disarm Output

This wire provides a negative (-) pulse to disarm the vehicle's factory alarm before the unlock pulse has occurred on the module. The pulse duration is 0.8 second.



Specifications:

  • Supply Voltage DC 12V (Negative car only)
  • Console unit dimensions: 112 (W) × 29 (H) × 9 (D) mm
  • Control panel Dimensions: 125 (W) × 32 (H) mm
  • Current Draw Standby:
    • without LED scan →5mA (0.06W),
    • with LED scan → 6mA (0.072W)
  • Keypad Operating Environment
    • - 30℃ to +80℃

Technical Specifications

Manufacturer Boyo
Part Number A-PASS
Warranty No
UPC Code No
