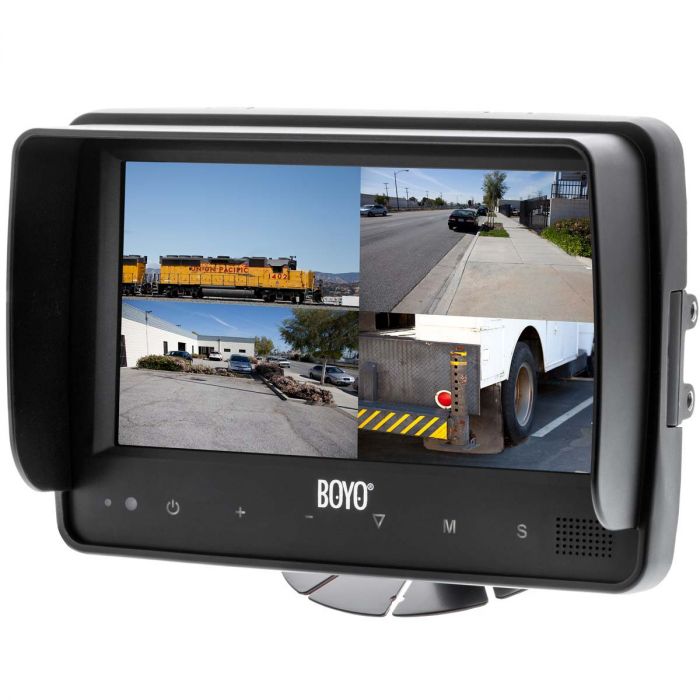

Boyo VTM7003QMA 7" Color LCD Digital Waterproof Touch Button Marine Monitor
Boyo VTM7003QMA 7" Color LCD Digital Waterproof Touch Button Marine Monitor
Key Features
7" Color LCD Digital Waterproof Touch Button Monitor IP67 rated and Waterproof Built in Speaker Image Adjustable Will Supply Power to Camera 4 AHD / CVBS Video Inputs Mirror and Normal image switch Automatic back-lighting for buttons
Unit includes: 7 inch monitor, Wiring harness, 4-Pin adapter, Remote control, and Instruction manual
Boyo VTM7003QMA 7" Color LCD Digital Waterproof Touch Button Marine Monitor features: <
Features:
7" Color LCD Digital Waterproof Touch Button Monitor w/ 22PIN (4cameras inputs, 1 video output and 1 audio output)
Can accept RCA composite inputs with optional adapters, see part number SMCRCA02
Marine grade waterproof IP67 rating - Can be submerged up to 3 feet of water
Auto Adjustment of Monitor Brightness, dims at night and increases brightness during the day
Touch Button for more convenient operation and longer durability
8 languages available for user operation
Accepts video formats: AHD / PAL / NTSC
Auto video format detection: 1080P30 / 1080P25 / 720P30 / 720P25 / PAL / NTSC
Automatic back-lighting for buttons
Mirror and Normal image switch available for converting non-reverse cameras into reverse image view
Camera inputs provide camera power
Operates from 10-32 Volts
Built-in Speaker
Full function remote control
Multiple display modes: Single, dual, triplex, quad, trefoil, Y-split, and PIP view display
Image adjustment for each channel - horizontal (reverse-normal) and vertical (upside-down) image flip, brightness, contrast
Auto camera scanning, with scanning sequence and editable hold time
Adjustable parking lines for each channel and easy installation and convenient operation, with innovative functions
Supplies power to camera
Image adjustable for Horizontal, Vertical, Mirror and Normal viewing
Inputs and Outputs:
Four camera inputs
Five trigger wires, with trigger display image, delay, and priority adjustable
Power and Ground inputs
Dimensions:
Dimensions without sun shade: 1-5/8" (D) x 9-1/16" (W) x 6" (H)
Dimensions with sun shade: 3-3/16(D) x 9-1/16" (W) x 6" (H)
More Information
Manufacturer
Boyo
Part Number
VTM7003QMA
LCD Screen Size
7 inch - 8 inch
Native Screen Resolution
800 x 480
Widescreen Display
16:9 Widescreen Display
LCD back light type
LED
LCD Screen Brightness
300 Nit
Swivel Screen
No
Touchscreen
No
Modulation
AHD
Built in Speakers
Yes
HDMI input
No
VGA input
No - VGA input
Audio Video inputs
4 Video Input
Audio Video Outputs
1 Audio/Video output
Composite video input
Yes
Front mounted auxiliary input
None
USB input
No
SD Card input
No
Built in Phone Mirroring
No
Housing material
Metal
Slide track on back
Yes
Mounting thread for stand mount
Yes
Mount included
Yes, Pedistal stand
Trigger wire
Yes
Image Flip Function
Image rotate
Quad Screen
Yes
Cigarette Lighter Cord Included
No
Operation Voltage
12-32 Volt DC
Wireless Remote Control
Yes
Monitor Color
Black
Color
Black
Warranty
1 Year
UPC Code
794504973952
Return period
30 days
Exchange period
30 days
