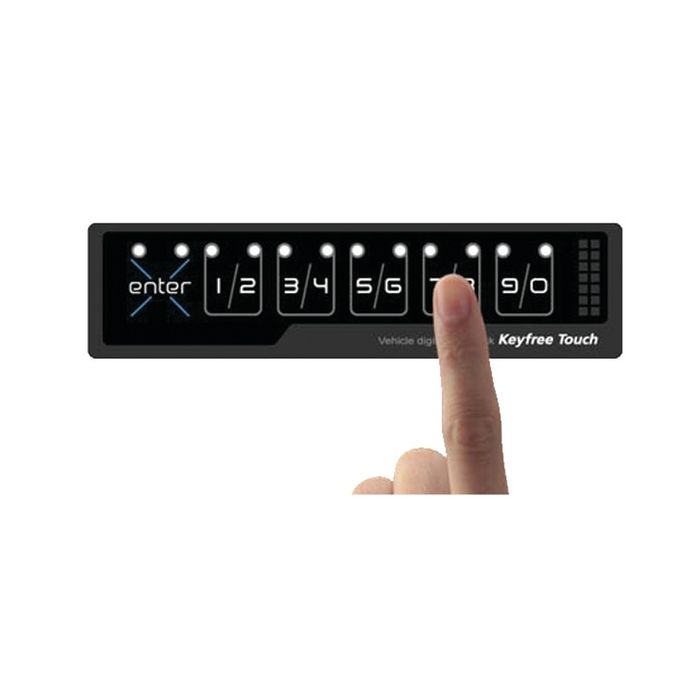

Boyo KEYFREE TOUCH Key-Free Touch Vehicle Digital Door Lock
$73.99
In stock
SKU
KEYFREETOUCH
- Key-Free allowing you to unlock and lock the vehicle by entering personal 4-10 digit PIN CODE
- Works inside the vehicle through the windshield
- On/off LED scanning function
- Compatible with original remote or key
Unit includes: Window touch panel, Wiring harness, and Instruction manual
Boyo KEYFREE TOUCH Key-Free Touch Vehicle Digital Door Lock
Boyo KEYFREE TOUCH Key-Free Touch Vehicle Digital Door Lock
- Features:
- KEYFREE TOUCH is a simple add-on module that will sit behind the windshield of your car. You can assign your own 4-10 digit PIN CODE which you can change at any time. In the event that you lock the keys inside, you can simply "touch" your PIN code on the module from outside your front windshield. Once the last digit is accepted, the door will unlock automatically.
- After a valid code is entered, trailing digits can be used to open a trunk or any electrically controlled auxiliary device
- Perfect for when you want to lock your keys and personal items in your vehicle without carrying any key, like at the beach
- Easy Installation (Does require professional installation to door lock system)
- Electrostatic touch technology
- Works inside the vehicle through the windshield
- Intelligent Software (Rainy, Snow, Hot, Cold weather)
- Scanner function(Blue color LED)
- On/off LED scanning function
- Simple install inside the window
- Pin code (4-10 digits) to unlock or lock vehicle
- Simple to change the Pin code
- Slim and compact size
- Compatible with original remote or key
- Supply Voltage DC 12V (Negative car only)
- Inputs and Outputs:
- Black: (-) System Ground Input -This wire should be connected to a ground source. Please ensure that no paint or rust exists on the surface where the wire will be attached. Please, also, ensure that the wire is securely fastened to the ground source.
- Red: (+12V) System Power Input - This wire should be connected to a constant +12V.
- Brown: (-) Unlock Output - This wire provides a negative (-) pulse to lock the vehicle's doors. This wire can also be used to control the Arm Trigger of some aftermarket security products. Please refer to the Installer Programmable Options for programming details.
- Orange: (-) Lock Output - This wire provides a negative (-) pulse to unlock the vehicle's doors. This wire can also be used to control the Disarm Trigger of some aftermarket security products. Please refer to the Installer Programmable Options for programming details.
- Blue: (-) Factory Alarm Rearm Output - This wire provides a negative (-) pulse to rearm the vehicle's factory alarm after the lock pulse has occurred on the module. The pulse duration is 0.8 second.
- White: (-) Factory Alarm Disarm Output - This wire provides a negative (-) pulse to disarm the vehicle's factory alarm before the unlock pulse has occurred on the module. The pulse duration is 0.8 second.
-
Dimensions:
- Console unit dimensions: 112 (W) × 29 (H) × 9 (D) mm
- Control panel Dimensions: 125 (W) × 32 (H) mm
- Current Draw Standby:
- Without LED scan: 5mA (0.06W),
- With LED scan: 6mA (0.072W)
- Operating temperature
- - 30℃ to +80℃
Most newer vehicles have databus systems that prevent simple installation. Databus vehicles, require interfaces and professional installation.
Manufacturer | Boyo |
---|---|
Part Number | KEYFREETOUCH |
Warranty | 1 Year |
UPC Code | 852052006314 |
Return period | 30 days |
Exchange period | 30 days |
