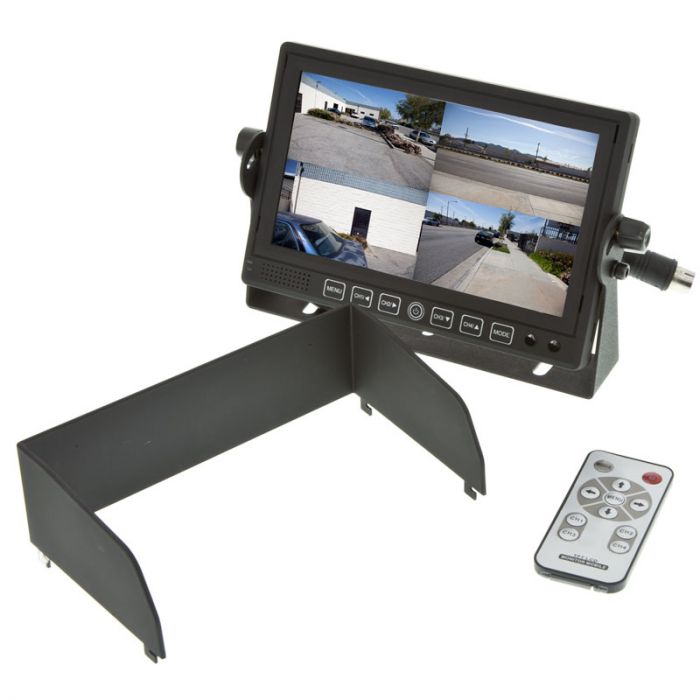

Boyo VTM7012MQ 7 Inch LCD Quad Monitor with removable sun shade and triggered inputs

Boyo VTM7012MQ 7 Inch LCD Quad Monitor with removable sun shade and triggered inputs

Boyo VTM7012MQ 7 Inch LCD Quad Monitor - Sun shade and remote control

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Boyo VTM7012MQ Product Highlights

  • 7” TFT LCD Monitor
  • Removable sun shield
  • Rugged u-bracket with thumb screw angle adjustments
  • 4 AV inputs with quad screen
  • DC 12V ~ 24V
  • Built-in Speaker
  • Automatic switching with trigger
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 7 inch quad LCD monitor, Wiring harness, Remote control, Removable sun shade, and Instruction manual

Boyo VTM7012MQ 7 Inch TFT LCD Quad Monitor

  • 7” TFT LCD Monitor
  • Removable sun shield
  • Elegant rubberized finish
  • Rugged u-bracket with thumb screw angle adjustments
  • Slide track on back for use with a variety of mounts
  • Four triggered video inputs
  • Image rotaion function to modify display settings for different cameras mounted in non normal positions
  • 16:9 wide screen display
  • 4 ways Audio Video inputs
  • NTSC & PAL auto-switching
  • Resolution: 800 x RGB x480
  • DC 12V ~ 24V
  • Built-in Speaker
  • Full image/ 2 images/ 4 images adjustable
  • Automatic switching with trigger
  • Dimensions of monitor no bracket: 7" (W) x 4-3/4"(H) x 1" (D)
  • Dimensions of monitor with bracket: 8-1/4" (W) x 5-1/4"(H) x 1" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTM7012MQ
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 350 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 705105194080

Customer Reviews

Worked as advertised
Review by
Install (5 star for easy)
Unit worked as advertised. Received on time. (Posted on 7/28/2015)

Write Your Own Review

You're reviewing: Boyo VTM7012MQ 7 Inch LCD Quad Monitor with removable sun shade and triggered inputs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Tracey, Friday, October 11, 2013


Does one input allow for a tilt camera?


  • Posted by Salvador Diaz on Friday, October 11, 2013

    Camera input allows for any camera on our site to be used no problem.
