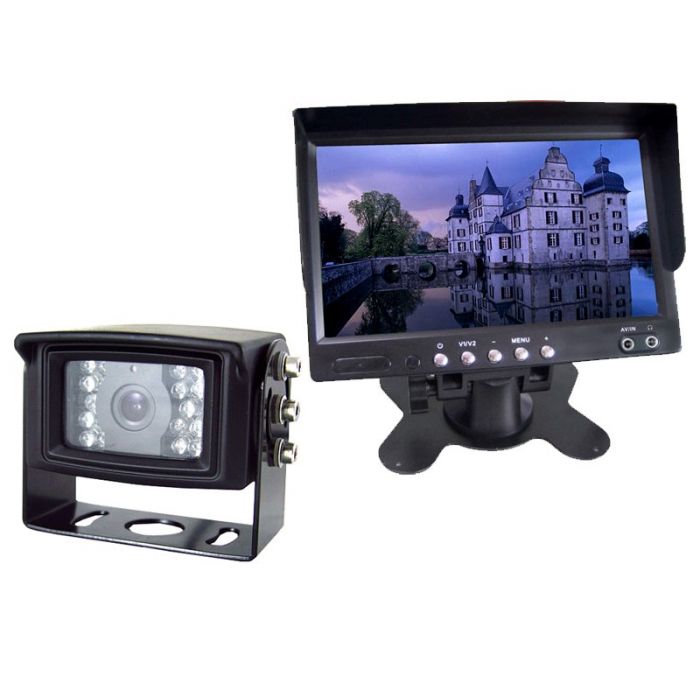

RV Back Up System - Boyo VTM7000 7 inch TFT LCD Monitor with Stand plus Boyo VTB201 Night Vision Camera

$239.99
In stock
SKU
47511

Key Features

  • 7" LCD Commercial Grade Monitor
  • Built in Speaker
  • Heavy Duty Camera
  • 60 Ft Cable Included
RV & Commercial Back Up System Combo Package
- Boyo (Vision Tech) VTM7000 Universal 7 inch TFT LCD Monitor with Stand & Sunshade
- Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera


Unit includes: Connectors

Boyo (Vision Tech) VTM7000 7 inch TFT LCD Monitor with Stand and Sunshade features:
  • 7" Security TFT Monitor with Stand
  • Easy to Install
  • Remote Controller
  • OSD Menu
  • 2 Video/Audio Inputs
  • Automatic reverse trigger
  • Brightness Control
  • Low power consumption
  • Built In Speaker

  • Model: VTM7000
  • Device: Card Slot
  • Screen size: 7" color TFT
  • Operation Temperature: -4 degrees F ~ 149 degrees F ( -20 degrees C ~ + 65 degrees C )
  • Humidity: 90% (Max)
  • Power Supply: DC 12V
  • Resolution: 1440(W) x 234(H)
  • Video System: PAL/NTSC
  • Input: Dual Video/Audio Input
  • Way of Control: Push button / Remote controller

  • Product Manual


Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual

Boyo VTB201 Compact Night Vision Bracket Mount Type Camera
  • Weatherproof and water resistant
  • Image device: 1/3" SHARP CCD
  • Mirror/ Normal image switch
  • 360 deg. adjustable mounting angle
  • Integrated microphone
  • Minimum illumination: 0 Lux (Infrared lamps on)
  • Nightvision distance: approx 8m (6 infrared lights)
  • Wider viewing angle up tp 120 degrees
  • Day/ Night sensor for automatic adjustment
  • Image device: 1/3" SHARP SENSOR CCD
  • TV System: NTSC
  • Effective pixels: 512 x 492 pixels
  • Sensing area: 4.9mm x 3.7mm
  • Sync. system: Internal
  • Resolution: 420 TV lines
  • Minimum illumination: 0 Lux
  • Microphone: Yes
  • Video output: 1.0vp-p, 75 Ohm
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60 - 12ยต
  • Current consumption: Max. 250mA
  • BLC: Auto
  • Power supply: DC12V
  • Operating Temp: -4 degrees F - 142 degrees F ( -20 degrees C - + 70 degrees C )
  • Storage Temp: -20 degrees F - 152 degrees F ( -40 degrees C - + 80 degrees C )
  • Humidity: Within 95% RH
  • Lens: f=2.8mm / F=2.0
  • Lens Angle: 120 degrees

  • Instruction manual
More Information
Manufacturer Boyo
Part Number VTM7000-VTB201
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Modulation NTSC and PAL
Built in Speakers Yes
Mount included Yes, Pedistal stand
Audio Video inputs 2 Audio Video Inputs
Wireless Remote Control Yes
Color Grey
Warranty 1 Year
Return period 30 days
Exchange period 30 days
