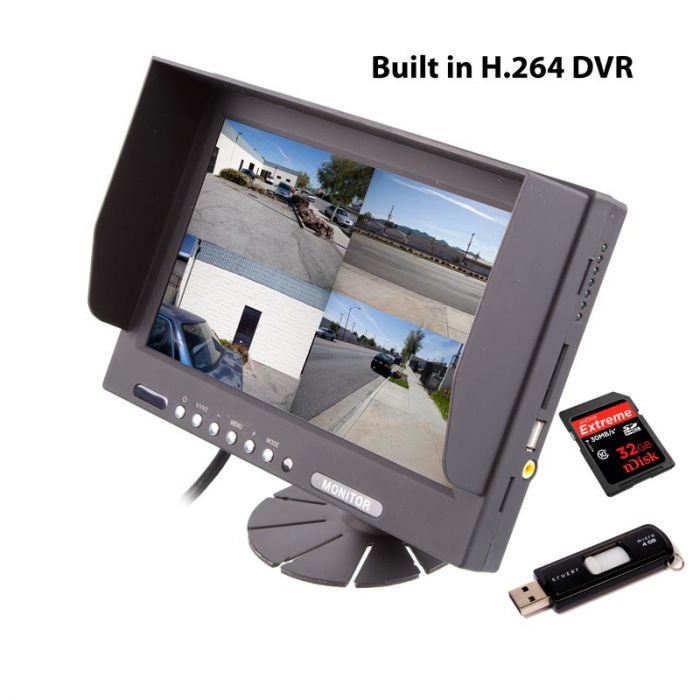

Safesight TOP-SS-D9003Q 9" Quad Screen LCD Monitor with built in DVR

Safesight TOP-SS-D9003Q 9" Quad Screen LCD Monitor with built in DVR

Safesight TOP-SS-D9003Q 9" Quad Screen LCD Monitor with built in DVR - Main unit

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-D9003Q Product Highlights

  • 9 inch LCD monitor with built in DVR
  • 4 channel recording with quad screen
  • Built in speaker
  • USB and SD support
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: LCD Monitor, Mounting stand, Remote control, Wiring harness, and Instruction manual

Safesight TOP-SS-D9003Q 9" Universal LCD Monitor with Quad Screen Capability

  • 9" Vehicle HD digital Quad monitor Built-in H.264 DVR
  • Resolution: 800(H)*R.G.B*480(V) dots
  • Wide screen display:16:9
  • PAL / NTSC auto-switching
  • Video decode:H.264
  • Audio decode:ADPCM
  • 4 ways video inputs,4 way audio input,1 way video input
  • With 4pin connector - purchase SMCRCA02 to convert to RCA connectors
  • With RCA connector (Optional)
  • Built-in Speaker
  • Built-in Quad inside
  • Full image /4 images adjustment
  • Monitor controlled by buttons on panel
  • DVR controllled by the remote controller
  • 4 Channels simultaneously to full time live record
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • Picture adjust with single and quad pictures
  • Recording backup with USB port
  • Recording saved to SD card
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in:4 switching value (Optional)
  • Interface port: USB port,SD card port,AV port
  • One way ignition signal
  • With IR Remote controller
  • OSD menu display,multi-languages
  • Dimension: 235(L)*158(W)*72.5(H)mm
  • DC9~32V wide voltage

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-D9003Q
Recorder Type DVR Recorder
Camera Sensor type No
Camera sensor diameter No
Infrared Illumination No
GPS Data No
Built in Microphone No
Built in Speakers Yes
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 300 Nit
Touchscreen No
Headphone Jack No
Built in FM Modulator No
Audio Video inputs 4 Video Input
Audio Video Outputs No
HDMI output No
USB input No
SD Card input Yes, SD Card
Cigarette Lighter Cord Included No
Auto on/off Yes
Slide track on back Yes
Mount included Yes, Pedistal stand
Mounting thread for stand mount Yes
Operation Voltage 12 - 32 Volt DC
Housing material Plastic
Trigger wire Yes
Image Flip Function Yes, reverse image flip
Quad Screen Yes
Warranty 1 Year
Color Black
UPC Code 736211912381

Write Your Own Review

You're reviewing: Safesight TOP-SS-D9003Q 9" Quad Screen LCD Monitor with built in DVR

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Ron Waldorf, Friday, June 28, 2013


Regarding: Safesight TOP-D9003Q 9" Quad Screen LCD Monitor with built in DVR If I want to purchase some quantity of these, i.e. 6 at a time, what would be the pricing and do you have availability?? Thanks. R-


  • Posted by Salvador Diaz on Friday, June 28, 2013

    These monitors are always in stock, price would be $258.00 each for 6

Please login to ask a product question

Ships Free!
Your Price: $269.99
$0.00 Tax Outside CA
Item sku:TOP-SS-D9003Q
Availability:In stock
Free shipping on all orders over $50!
  - Shipping options
    Quantity Discounts
  • Buy 2 for $259.99 each and save 4%
  • Buy 5 for $249.99 each and save 8%
