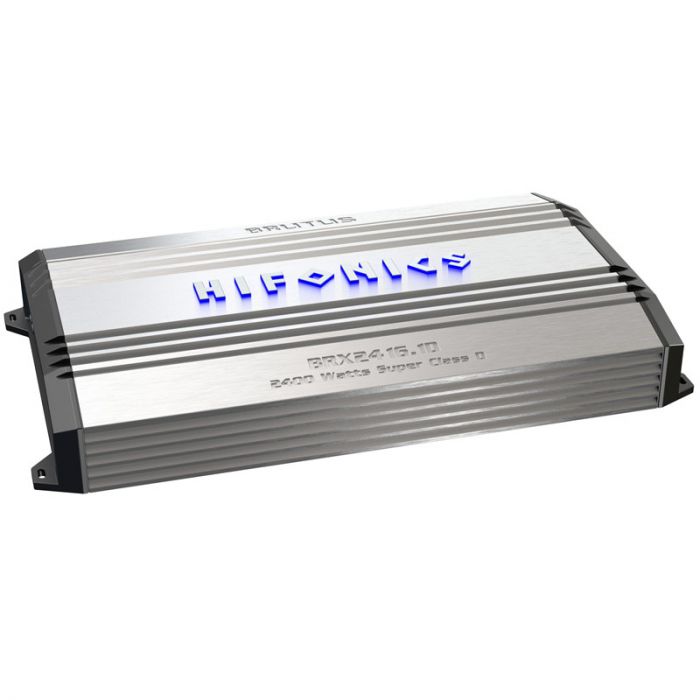

Hifonics BRX2416.1D Brutus Series 2400 Watts Class D Mono-Block Amplifier

$253.99
In stock
SKU
BRX24161D

Key Features

  • BRX2416.1D Brutus BRX Series Mono-Block Class-D Amplifier with 2400 Watts of power!
  • Ultra-Fi MOSFET power supply
  • Two LED indicators: green for power and red for protect
  • Bass EQ boosts from 0 to +10dB at 20 Hz - 80 Hz with variable width
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Requires 0 gauge power and ground wiring for installation
  • Provides three way protection circuitry, which includes thermal, overload, and speaker short protection
  • 4 ohms: 850 watts x 1 channel
Unit includes: Unit includes: Class D Mono-Block Car Amplifier, Bass control knob, Extension cable, Mounting hardware, and Instruction manual

Hifonics BRX2416.1D Brutus Series 2400 Watts Class D Mono-Block Amplifier
    Features:
  • Brutus BRX Series Mono-Block Class-D Amplifier with tons of power!
  • Designed with Ultra-Fi MOSFET power supply for high current levels and improved sound quality
  • Dual LED indicators: green for power and red for protection
  • Includes wired remote bass level control
  • Lighted connectors and blue wash of light from the underside of the heat-sink for an excellent look at night
  • Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation with illuminated Hifonics logo
  • Equipped with soft start turn-on that helps reduce the load and makes start-up easier
  • Maximum Power output is 2400 watts
  • Mono-Block channel operation
  • Provides three way protection circuitry, which includes thermal, overload, and speaker short protection
  • Built-in system diagnostics
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Low Level RCA Inputs and Outputs
  • Daisy-chain multiple amplifiers together without signal loss with integrated audio outputs
  • Master slave switch so all audio settings can be set by a single amplifier and reproduced by multiple other amplifiers
  • Requires 1/0 gauge power and ground wiring for installation
  • Input sensitivity is 200 mV to 9V (variable level)
  • Subwoofer phase: 0° - 180°
  • Variable low-pass filter: 30-250 Hz, 24 dB/ octave
  • Bass EQ boosts from 0 to +10dB at 20 Hz - 80 Hz with variable width
  • Variable sub-sonic filter from 15 Hz - 35Hz
  • Frequency response: 10 Hz - 250 Hz
  • Signal to Noise ratio: >90dB
  • Total Harmonic Distortion: <0.05%
  • 2400 Watts Class D Mono Block Brutus Series Amplifier for Vehicles
  • Use extreme caution when wiring this amplifier, it has the capability to destroy your vehicles electrical system and cause serious bodily harm if not properly installed
  • Dimensions: 14-7/8" (L) x 2-7/16" (H) x 9-7/8" (W)

Maximum Power Rating:
  • 4 ohms: 850 watts x 1 channel
  • 2 ohms: 1600 watts x 1 channel
  • 1 ohms: 2400 watts x 1 channel


More Information
Manufacturer Hifonics
Part Number BRX2416.1D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 2,400.00
Total RMS Power at 2 ohm 1,600.00
Total RMS Power at 4 ohm 850.00
Total Peak Power Output 2,400.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge 0 Gauge
CEA2006 Compliant No
UPC Code 806576223658
Return period 30 days
Exchange period 30 days
