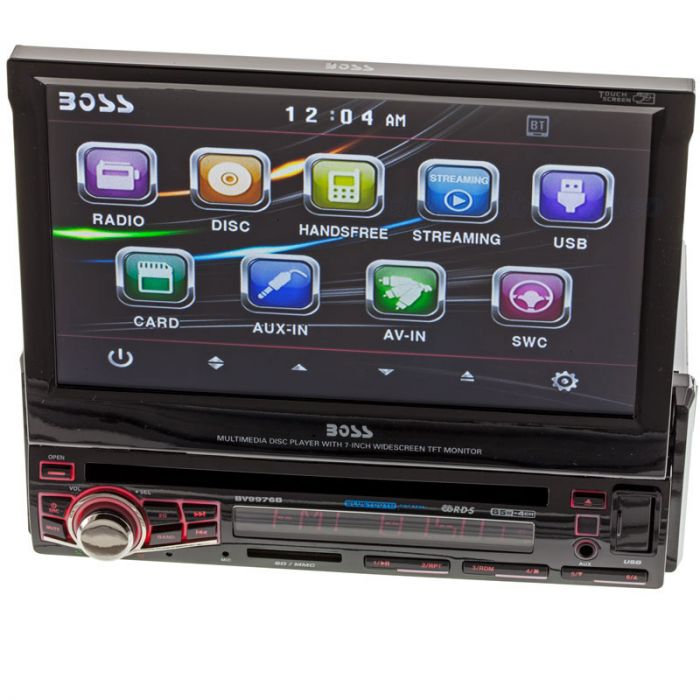

BOSS BV9976B Bluetooth Enabled Single DIN 7 Inches Drop Down Motorized Touchscreen Display Monitor with Media Receiver for Vehicles

Rating:
100% of 100
$145.99
Out of stock
SKU
BV9976B

Key Features

  • Single DIN oversized face In-Dash CD receiver
  • 7 inch Motorized drop down LCD Display with LED Backlight (800 x 480 pixels)
  • Detachable face plate
  • Blue button illumination
  • Built in Bluetooth with A2DP for wireless audio streaming
  • iPod and iPhone ready with Apple 30 pin to USB or USB to lightening cable

Unit includes: Single DIN Stereo, Wireless Remote Control, Wiring harness, Mounting hardware, and Instruction manual

BOSS BV9976B Bluetooth Enabled Single DIN 7 Inches Drop Down Motorized Touchscreen Display Monitor with Media Receiver for Vehicles features:

Features:

  • Single DIN oversized face In-Dash Car Stereo CD receiver
  • 7 inch Motorized drop down LCD Display with LED Backlight (800 x 480 pixels)
  • Detachable face plate
  • Blue button illumination
  • Built in Bluetooth with A2DP for wireless audio streaming
  • AM/FM radio tuner
  • iPod and iPhone ready with Apple 30 pin to USB or USB to lightening cable
  • Pandora support with interface cable, simply connect your iPhone or iPod touch and stream Pandora
  • Power Output: 4 channels x 85 watts peak
  • MP3, MP4, AVI, WAV & WMA playback from CD's
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Jpeg picture viewer



Music and videos:

  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, and AVI
  • Region free DVD player
  • Electronic shock protection with built in buffer
  • Includes PLL synthesized AM & FM tuner with 18 FM & 12 AM preset stations memory
  • Selectable USA and European radio frequencies sets
  • Controls: Volume, Fader, Bass, Treble, Balance
  • Variable subwoofer level control
  • CD text information, display artist and song information
  • MP3 ID3 tag information, display artist and song information



Bluetooth features:

  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • Internal microphone on the front of unit
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above



Inputs and outputs:

  • 3 Sets of 2V preamp outputs (front, rear and mono subwoofer)
  • Rear Input for Rear Camera
  • 1 Rear video output to connect to an external monitors
  • Rear Audio video input for connection to external source
  • Front USB connection accepts up to a 32Gb
  • Side SD memory card reader accepts up to a 32Gb memory card
  • Steering wheel interface compatible, requires the PAC SWI-PSv1 or the Axxess ASWC-1



Dimensions:

More Information
Manufacturer Boss Audio
Part Number BV9976B
Chassis Size Single DIN
Faceplate features Detachable face plate
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 7 inch - 8 inch
Illumination color Blue
LCD Screen Brightness 600 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480 Pixels
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input 3.5 mm audio/video input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
SD Card input Yes, SD Card
USB input Yes
HDMI input No
HDMI output No
Smartphone Compatible Yes
Modulation NTSC and PAL
Audio Formats Mpeg-3, WAV, WMA
Video Formats H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Navigation No
Steering Wheel Control Input Yes, Built in control
Wireless Remote Control Yes
Operation Voltage 12-15 Volt DC
Warranty 1 Year
UPC Code 791489121224
Return period 30 days
Exchange period 30 days
