DISCONTINUED - PAC C2A-CHY23 2006 and Up Chrysler / Dodge / Jeep / Volkswagen add an amplifier interface
DISCONTINUED - PAC C2A-CHY23 2006 and Up Chrysler / Dodge / Jeep / Volkswagen add an amplifier interface
Key Features
Fits 2006 and Up select Chrysler / Dodge / Jeep / Volkswagen vehicles Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections Provides front and rear low level outputs Provides full range audio output 20-20,000Hz

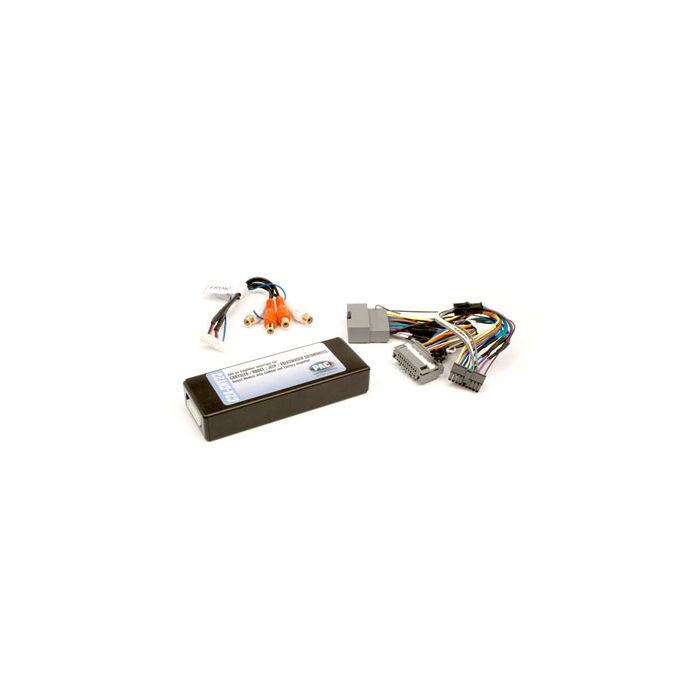

Unit includes: A) C2A-CHY23 interface, B) PAC Factory harness, C) Chrysler / Dodge / Jeep / Volkswagen harness, and Instruction manual
PAC C2A-CHY23 2006 and Up Chrysler / Dodge / Jeep / Volkswagen amplified audio system interface:
Interface Features:
Provides line level output for aftermarket amplifiers and makes adding or replacing an amplifier easy
Plugs into vehicle LSFT and MS-CAN-BUS and provides analog audio signal
Only compatible with premium amplified audio systems
Does not retain factory radio's bass, mid-range & treble adjustments
Not compatible with Navigation equipped vehicles
Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
4 - High level speaker inputs makes connections for aftermarket amplifier easy
Provides front and rear low level outputs
Retains balance and fader
Provides full range audio output 20-20,000Hz
Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier
Connections:
Black - Ground
Red - 12 volts (+)
Yellow - 12 volts Accessory (+)
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)
Kit Components:
A) C2A-CHY23 interface
B) RCA harness
C) Chrysler / Dodge / Jeep / Volkswagen harness
D) Instruction manual
Tools Required:
Vehicle Applications:
Chrysler:
2011 - 2014 200
2008 - 2010 300
2008 - 2009 Aspen
2007 - 2010 Sebring
2008 - 2015 Town & Country
Dodge:
2007 - 2013 Avenger
2009 - 2012 Caliber
2008 - 2014 Challenger
2008 - 2010 Charger
2008 - 2011 Dakota
2008 - 2013 Durango
2009 - 2015 Grand Caravan
2009 - 2010 Journey
2008 - 2008 Magnum
2007 - 2010 Nitro
2009 - 2011 Ram
Jeep:
2008 - 2010 Commander
2009 - 2013 Compass
2008 - 2013 Grand Cherokee
2008 - 2010 Liberty
2009 - 2013 Patriot
2007 - 2014 Wrangler
Volkswagen:
More Information
Manufacturer
PAC
Part Number
C2A-CHY23
Wiring harness function
Replace Factory Radio
Warranty
1 Year
UPC Code
606523109017
Return period
30 days
Exchange period
30 days
