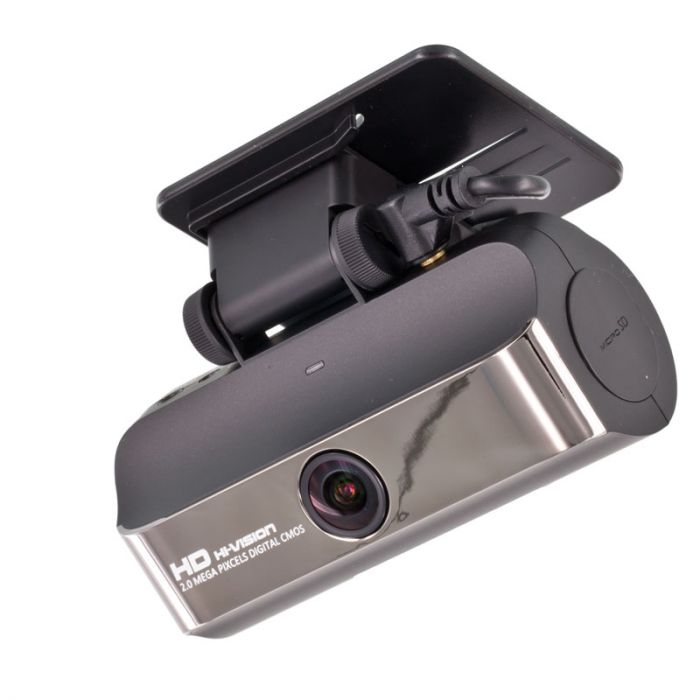

Carpa R1 Dashboard Camera with Mini DVR System
- Automated Driving Surveillance Recorder With GPS (Global Positioning System)
- 2.0 Mega-Pixel high quality camera
- 30 FPS real time recording
- 1280 x 720 Resolution
- International GPS Module with Google Maps overlay
- Internal 3 Axis G-Sensor
- System will auto delete and record over old data
- Simultaneously records interior audio with built in microphone
The CARPA R1 Dash cam is a new innovative product that records what is taking place outside the vehicle as it is seen through the windshield. The system records in glorious 720p at 30 frames per second for excellent detail and no skipping during playback. During playback you get GPS map data pinpointing your exact location as well as speed and rate of acceleration in G's all on a Google map view. The CARPA R1 even records the interior audio and has a playback resolution of 1280 x 720 HD quality. The system includes the cigarette lighter cord, and adhesive tape mounting plate so installing this in any vehicle takes less than 5 minutes. The optional hardwired cord makes permanent installation in fleet vehicles very easy and guarantees continued operation. Protect you and your business against frivolous law suits.
Carpa R1 Dashboard Camera with Mini DVR System
Features:
- Automated Driving Surveillance Recorder With GPS (Global Positioning System)
- The system provides a perfect eyewitness with irrefutable evidence. The R1 documents accidents, near-accidents or reckless / aggressive driving behavior
- Records exterior images as seen through the windshield of your vehicle
- Simultaneously records interior audio with built in microphone
- The unit can be set to record continuously, if an accident occurs as determined by the G-Force sensor (Rapid Acceleration Or Deceleration), or through a motion sense if the vehicle is parked in a bad location
- Motion sense and Security LED - System will change into park mode when no movement is sensed for 15 minutes. Park mode engages a 5 frames per second frame rate that allows for extended record times, and in the event motion is sensed the system will immediately begin to record at 30 frames per second. The system will also display a Red LED showing that this recording is taking place (Optional and can be turned off).
- Built-In G-Sensor with event triggering. The system will create an Event Video Data File with stores a recorded set period of time (User specified) and makes for easy and quick playback access
- System records at 30 frames per second which allows real time playback at normal speed. Most other records record at 10 - 15 frames per second so the footage is not real time and jumpy
- Dual CPU's for high quality audio and video will optimal image clarity
- System will auto delete and record over old data
- Voice guidance - System will verbally communicate its current status
- Auto back up power - System has dual condensers and stores electricity so that if power source is removed as in an accident, the system continues to record
- OSD (On Screen Display) system can be configured via a TV or navigation screen with optional cable
- PC viewable software is included on Micro SD card
Quick specifications:
- 2.0 Mega-Pixel high quality camera
- 30 FPS real time recording
- 1280 x 720 Resolution
- International GPS Module with Google Maps overlay
- Internal 3 Axis G-Sensor
- 8 GB Micro SD memory card included (Supports up to 32GB SDHC cards)
Recording modes
- Supports 24 hour continuous recording & shock monitoring
- Event recording - Sudden movement detected by G-Sensor system records 10 seconds prior and 10 seconds after event occurrence
- Normal recording - Automatic recording as vehicle is turned on
- Manual record mode - Press record button and unit immediately records 10 seconds prior and 50 seconds after button press
- CCTV mode - Systems records at 5 frames per second as vehicle is parked and switches to 30 frames per second if motion is detected
- Event file & data printing
Technical information:
- Wide voltage range DC 12V ~ 24V with low power consumption
- Power consumption: 260mA @ 12 volts; 130mA @ 24 volts
- Battery monitoring for vehicle battery drain to prevent full discharge of vehicle battery
- H.264 Video compression - AVI file
- International GPS module so unit can be used anywhere
- MT9D111 + Lucy dual CPU processor
- 98 degree horizontal viewing angle
- 55 degree horizontal viewing angle
- 1 - Red record LED indicator - required in some states
- 3 - Status LED's
Dimensions:
- Weight: 93g
- Size: 3-5/8 (W) x 1-1/2 (L) x 1-5/8 (H)
- Operation Temp.: -20'C ~ 80'C
Inputs and Outputs:
- 1 - 3.5 mm Audio Video input
- 1 - 3.5mm Rear camera input (Cable sold separately)
- 1 - 3.5mm Audio Video output (Cable sold separately) for connection to a TV or navigation system
- 1 - DC power connector
Recording Times:
- Normal write - 50 MB per second
- Event write - 20 MB for 20 seconds
- Parking write - 38 MB for 60 seconds
Memory card capacity | 4GB | 8GB | 16GB | 32GB |
Total Use Capacity | 3.3GB | 6.6GB | 13.21GB | 24.41GB |
Normal recording: | 1.9GB | 3.81GB | 7.61GB | 15.22GB |
Event recording: | 0.81GB | 1.62GB | 3.24GB | 6.48GB |
Parking recording: | 0.59GB | 1.18GB | 2.36GB | 4.71GB |
Total recording time: | 61 Minutes | 123 Minutes | 245 Minutes | 490 Minutes |
Normal recording time: | 32 Minutes | 65 Minutes | 129 Minutes | 258 Minutes |
Event recording time: | 14 Minutes | 27 Minutes | 54 Minutes | 108 Minutes |
Parking recording time: | 16 Minutes | 31 Minutes | 62 Minutes | 124 Minutes |
Manufacturer | Clarus |
---|---|
Part Number | R1 |
Recorder Type | Dashboard Camera |
Camera Sensor type | CMOS |
Infrared Illumination | No |
GPS Data | No |
Built in Microphone | Yes |
Built in Speakers | Yes |
Audio Video inputs | 1 Video Input |
Audio Video Outputs | 1 Audio/Video output |
USB input | No |
SD Card input | Yes, SD Card |
Auto on/off | Yes |
Mount included | Yes, Pedistal stand |
Operation Voltage | 12-24 Volt DC |
Warranty | 1 Year |
Color | Black |
Return period | 30 days |
Exchange period | 30 days |
