Chevrolet and GMC OEM Recessed Lip Camera with OnStar Mirror (10 Pin) 9002-8722

$748.99
In stock
SKU
9002-8722

Key Features

  • Fits GM vehicles with Onstar
  • 3.5 inch rear view mirror monitor
  • 14 millimeter Panasonic wide-angle lip mount camera
  • Plug & play system
Unit includes: Rear view mirror monitor, Emblem camera, Wiring harness, and Instruction manual

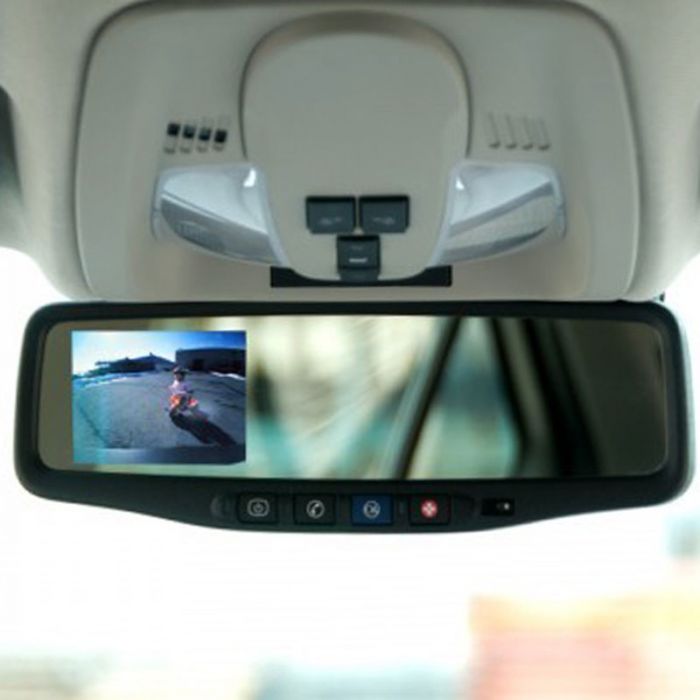

Prevent tragic back-over accidents with this complete universal Chevrolet or GMC complete rear vision kit with 10 pin connector. The OEM (original equipment manufactured) rear view mirror retains all vehicle features (OnStar included) and has a 3.5" color display that disappears when not in use.



This high quality Panasonic OEM Recessed Lip Camera is the latest generation and newest technology of cameras available. This new technology provides improved imaging contrast, enhanced depth of field and superior night illumination. The smaller overall size and mounting footprint accommodates a wide variety of vehicle applications. The unique Brandmotion designed bracket enables the OEM look and feel over other aftermarket cameras. This camera features a wide-angle view and includes a 26 foot vehicle harness.



This kit is the perfect solution for when it has to be OEM.

Quality Mobile Video 9002-8722 OEM Recessed Lip Camera with OnStar Mirror - Complete Kit
  • 3.5" TFT LCD (thin film transistor liquid crystal display) mirror monitor
  • High resolution display
  • OnStar buttons
  • No loss of features in your current mirror
  • Auto dimming mirror
  • 14 millimeter Panasonic wide-angle lip mount camera
  • 3 lux (40IRE) for illumination & sharper image
  • Video output: NTSC
  • Image sensor: CMOS
  • VGA 640 x 480 pixels
  • RGB color filter
  • Mirrored image orientation
  • Power off delay: Minimum 11 seconds after the back-up lamp input has gone
  • Operating voltage range: 9 to 16 volts
  • Operating current: 40mA
  • Color image with automatic white balance
  • Electronic auto iris
  • Improved field and depth of view from previous generation and any aftermarket camera
  • Waterproof case with anti-fog lens
  • Weatherproof OEM connectors
More Information
Manufacturer Quality Mobile Video
Part Number 9002-8722
Modulation NTSC and PAL
Warranty 1 Year
Color Black
Viewing Angle 120 degrees
Camera diameter 14 millimeter
Connector Type 5 Pin Connector
Built in Microphone No
Parking grid lines Yes
Reverse Image Yes - Reverse Image
Trigger wire Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Back up camera type Vehicle Specific Camera
Camera Sensor type CMOS
Infrared Illumination No
Operation Voltage 12-15 Volt DC
Auto Dimming Yes - Full Auto Dimming
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Chevrolet and GMC OEM Recessed Lip Camera with OnStar Mirror (10 Pin) 9002-8722
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?
This can be done by using a screen interface or add-a-camera harness.
