Quality Mobile Video RS101E 12 VDC Automotive 5-Pin Relay Socket with interlock, raw pins, without mounting tab
$2.99
In stock
SKU
RS101E
Expert Knowledge
Talk to a specialist
- Empty Relay socket without mounting tab
- Integrated male and female slide tracking allowing you to combine multiple relay sockets for neat installations
- 40 amp / 60 amp rated contacts
- SPDT - Single pole dual throw
- Includes (5) Empty crimp connectors
Unit includes: 12 volt relay socket and (5) Crimp Pins

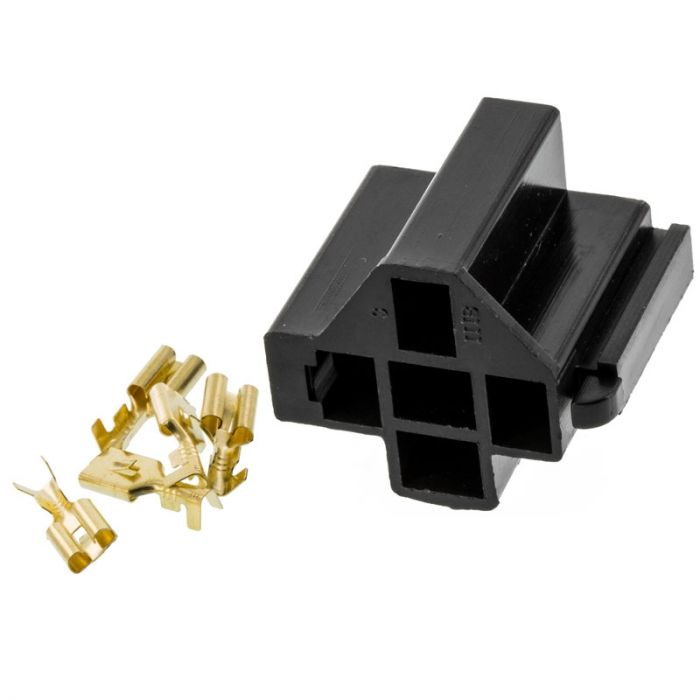

Quality Mobile Video RS101E 12 VDC Automotive 5-Pin Relay Socket with interlock, raw pins, without mounting tab
Quality Mobile Video RS101E 12 VDC Automotive 5-Pin Relay Socket with interlock, raw pins, without mounting tab
Relay sockets make installing a relay a snap. Our relay sockets features a slide track allowing you to combine multiple sockets together for neat installations. Relay sockets make it easy to replace a relay when they go bad without having to remove multiple connectors.
-
Features:
- Fit all automotive Bosch style relays regardless of manufacturer
- Integrated male and female slide tracking allowing you to combine multiple relay sockets for neat installations
- 40 amp / 60 amp rated contacts
- SPDT - Single pole dual throw
- (5) Raw crimp pins to configure socket as needed
- Conventional 87, 87a, 30, 86, and 85 pin locations
- Completely insulated terminals
- Dimensions 1 1/4" (w) x 1 1/16" (D) x 1-1/8" (H)
- No mounting tab
- Crimp connectors accept up to 12 Gauge wire
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | RS101E |
| Relay type | Full size 5 Pin relay |
| Tab type | No Tab |
| Warranty | 90 days |
| California Proposition 65 |  Warning:This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Item Returns | This item can be returned |
Write Your Own Review
Relay Sockets – Complete Guide
What is a Relay Socket?
A relay socket (also called a relay base or relay holder) is the plastic base that a relay plugs into. It provides secure electrical connections and makes it easy to install, replace, or service the relay without cutting or soldering wires directly to the relay pins.
Why Use a Relay Socket?
- Makes relay replacement quick and tool-free
- Protects the relay terminals
- Allows for cleaner, more professional wiring
- Easier to add fuses, diodes, or resistors
- Enables modular and expandable designs
Main Types of Relay Sockets
| Type | Size | Pins | Interlocking | Best For |
|---|---|---|---|---|
| Micro Relay Socket | Small | 5 | Yes/No | Tight spaces |
| Full-Size Relay Socket | Standard | 5 | Yes/No | High current, custom builds |
| ISO Relay | Large | 4/5 | Usually No | OEM replacements |
Key Features Explained
- Interlocking (BRSPC, BRS14PT, BRS14E, BRS12E, BRS14MR, BRSCP) – Can be connected together to form neat relay banks
- Non-Interlocking (BRSC, BRSP) – Individual sockets for flexible spacing
- Socket Only vs With Contacts (BRSCN comes with terminals)
- Solder Tab (BRSS) – Best for high-vibration environments
Standard 5-Pin Relay Socket Pinout
- 30 – Power Input (Common)
- 87 – Normally Open Output
- 87a – Normally Closed Output
- 85 – Coil Ground
- 86 – Coil Positive (+12V trigger)
Common Applications
- Custom car audio systems
- Auxiliary lighting (LED bars, fog lights)
- Cooling fans & fuel pumps
- Winches and horns
- Marine and race car electrical systems
Pro Tip: Always use a fuse on Pin 30 and consider dielectric grease for better corrosion protection.
Pro Tips for Using Relay Sockets
- Always use the correct wire gauge — Match wire size to your current load (e.g., 12–14 AWG for 20–30A applications).
- Add a fuse on Pin 30 — This is critical for safety. Place an appropriately rated fuse as close as possible to the power source.
- Use dielectric grease — Apply a small amount on the relay pins and inside the socket to prevent corrosion and improve electrical contact.
- Choose solder tab sockets for high vibration — For race cars, off-road vehicles, or marine use, the BRSS (solder tab version) offers superior vibration resistance.
- Take advantage of interlocking sockets — Models like BRSPC or RS102E allow you to create clean, professional-looking relay banks with minimal space.
- Label your relays and wires — Makes future troubleshooting much easier.
Bonus Tip: When using crimp terminals, always use a quality crimping tool and double-check for solid connections before final installation.
