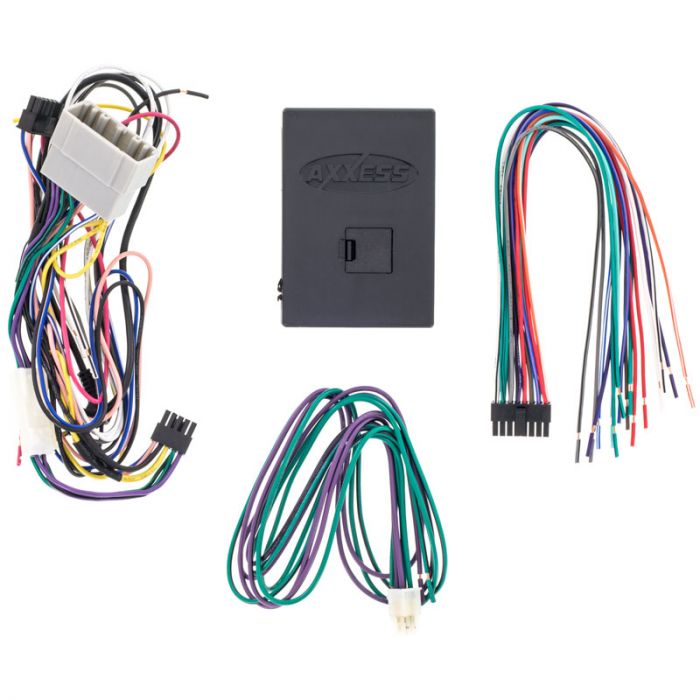

Metra CHTO-01 2004 - 2010 Chrysler, Jeep, Mitsubishi Car Stereo interface kit
- Easily remove the factory stereo in an otherwise impossible situation
- Interface provides accessory power
- Interface retains R.A.P. (retained accessory power)
- Compatible with amplified, non-amplified systems, or digital amplified factory audio systems
- Steering wheel control outputs
- Provides Navigation outputs for aftermarket navigation systems
Metra CHTO-01 2004 - 2010 Chrysler, Jeep, Mitsubishi Car Stereo interface kit
The CHTO-01 interface is designed to allow you to install an aftermarket radio into 2004 - 2010 and up select Chrysler vehicles. The CHTO-01 is designed to integrate the new radio to the factory amplifier and databus system. The interface retains full functionality of the factory blindspot detection system as well as all safety and warning chimes.
The CHTO-01 also provides navigation outputs so that you can easily install an aftermarket navigation system and not have to search for VSS, parking brake or backup lead. This interface has the capability of integrateing with amplified, non-amplified systems, or digital amplified systems while retaining the factory steering wheel controls.
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Interface provides accessory power in vehicle that use CAN-BUS to turn on the factory radio
- Interface retains R.A.P. (retained accessory power)
- Compatible with amplified, non-amplified systems, or digital amplified factory audio systems
- Provides navigation outputs for easy connection to aftermarket navigation systems (parking brake, reverse, mute, V.S.S.)
- Provides steering wheel control outputs and includes ASWC-1 harness (Metra ASWC-1 Steering wheel control sold separately)
- Adjustable gain control for overall volume (on amplified systems)
- Retains blind spot detection system (if equipped)
- Interface can be updated with USB
- High-level speaker input
- Retains balance and fade
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- Brown - Mute connection
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Fitments:
Chrysler:
- 2005 - 2007 300
- 2007 - 2007 Aspen
Dodge
- 2007 - 2008 Caliber
- 2006 - 2007 Charger
- 2005 - 2007 Dakota
- 2004 - 2007 Durango
- 2005 - 2007 Magnum
- 2006 - 2008 Ram 1500
- 2006 - 2009 Ram 2500 / Ram 3500
Jeep
- 2006 - 2007 Commander
- 2007 - 2008 Compass
- 2005 - 2007 Grand Cherokee
- 2007 - 2008 Patriot
Mitsubishi
- 2006 - 2007 Raider
Manufacturer | Metra |
---|---|
Part Number | CHTO-01 |
Wiring harness function | Replace Factory Radio |
Warranty | 1 Year |
UPC Code | 086429154883 |
Return period | 30 days |
Exchange period | 30 days |
