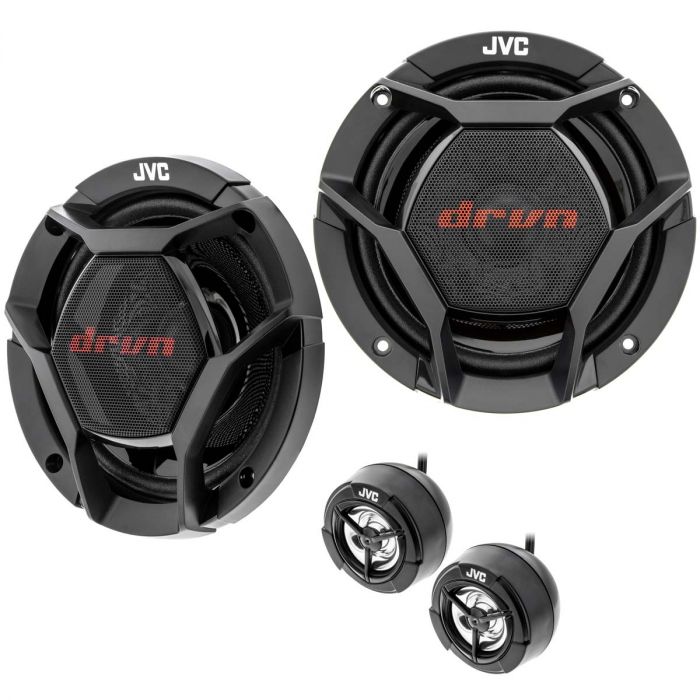

JVC CS-DR1700C 6 3/4 inch Component - 2 way Car Speakers
$129.99
In stock
Only 1 left
SKU
CSDR1700C
Expert Knowledge
Talk to a specialist
- JVC CS-DR1700C 6 3/4 inch Component - 2 way Car Speakers
- 6 3/4 inch cone woofer with rubber surround
- In-line crossover network for a compact installation
- 4 ohm impedance
- Mounting depth: 1.78 inches
Unit Includes: 6 3/4 inch Speakers, (2) Woofer Grilles, (2) 1 inch tweeters, (2) Mounting cups, (2) Mounting pods, Mounting hardware, Wiring leads, Warranty Card, and Instruction manual
JVC CS-DR1700C 6 3/4 inch Component - 2 way Car Speakers
JVC CS-DR1700C 6 3/4 inch Component - 2 way Car Speakers
-
Features
- Car coaxial speaker system for easy installation in factory speaker location
- High quality sound with individual tweeter and woofer
- 1 inch Poly-Ether Imide cone tweeter with Neodimium magnet with for crisp highs
- In-line crossover network for a compact installation without a bulky external crossover
- New shallower mount increasing vehicle and panel compatibillity with minimal tweeter protrusion
- Carbon Mica cone is robust and light weight providing clear undistorted sound
- Hybrid rubber coated surround provides excellent transient response and high efficiency with improvide sonic quality
- 6 3/4 inch Injection PP woofer cone
- Hybrid Rubber coated cloth woofer surround
- Black stamped steel woofer basket
- Ferrite woofer magnet
- 1" Poly-Ether Imide dome tweeter
- Neodymium tweeter magnet
- Woofer mount depth: 1.78 inches
- Crossover frequency: 4.9 kHz
-
Quick Specs
- Impedance: 4 ohms
- Sensitivity: 88 dB
- Frequency Response: 66 Hz - 23.8 KHz
-
Power Handling RMS
- 55 watts per speaker
-
Power Handling Max
- 360 watts per pair
-
Dimensions
- Cutout Diameter:
- Mounting Depth: 1.78
| Manufacturer | JVC |
|---|---|
| Part Number | CS-DR1700C |
| Speaker Size | 6 3/4 inch |
| Frequency Response | 66 Hz - 23.8 KHz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling Peak | 360 Watts |
| Sensitivity | 88 dB |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 046838073397 |
| Return period | 30 days |
| Exchange period | 30 days |
