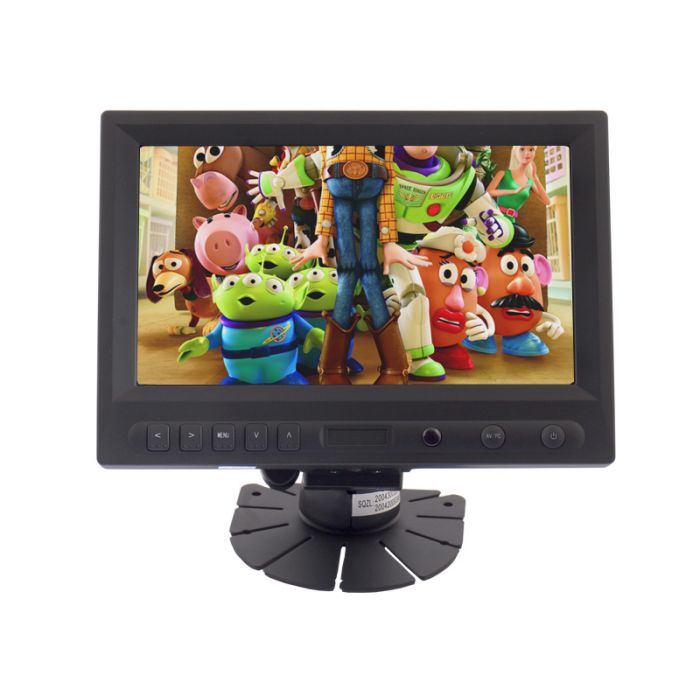

Quality Mobile Video CVFQ-E118 8 Inch Touchscreen LCD Monitor with VGA, AV, HDMI, Car Kit and Mounting Stand

$199.99
In stock
SKU
39513

Key Features

  • Touchscreen
  • VGA and Video Input
  • Built in Speaker
  • HDMI Input
  • Fan Mount Included
Unit includes: Remote Control and Mounting Accessories

Quality Mobile Video CVFQ-E118 8 Inch Touchscreen LCD Monitor with VGA, AV, HDMI, Car Kit and Mounting Stand
  • Main Function: 8 Inch LCD Touchscreen Monitor
  • Screen: 8 Inch TFT LCD Touchscreen (1440000 Pixels)
  • Native Screen Resolution: 800 x 480 (VGA)
  • UP Resolution: 1920 x 1440 (VGA)
  • Brightness: 300cd/m2 (without touchscreen)
  • Contrast: 500:1
  • Viewing Angle: 70 Degrees/70 Degrees; 50 Degrees/60 Degrees (Left/Right; Up/Down)
  • Video Signal Input: 0.7 - 1.4Vp-p/75 Ohms
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: >250mW/8 Ohms
  • Color System: PAL-4.43, NTSC-3.58
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Display Ratio: 16:9, 4:3
  • Power Consumption: <8w
  • Working Temperature: -20 to +55 °C
  • Storage Temperature: -30 to +65 °C
  • Input: VGA
  • Input: AV1 with mono sound
  • Input: AV2 no sound (for rear view camera)
  • Input: Camera Switch Remote Wire
  • Input: HDMI
  • Remote Controller: Yes
  • Supported Operating Systems for Touchscreen Software: Windows 98SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: (8.2" x 5.7" x 1.37") W 209mm x L 145mm x D 35mm

  • Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • User friendly and Low Energy Consumption
  • Mounting plate has a foam rubber adhesive bottom so you can stick it on any flat surface or even a work desk.
  • If you need to make use of the LCD touch screen monitor somewhere else, is can be easily detached from the base and taken out of the car.
  • By rotating the screen left, right, up or down for viewing angle preferences.
  • Also a great tool for location and studio filming. It provides flexible viewing in a size that is easy to mount on top of cameras or hold in your hands.
  • 4, 9 and 25 point touchscreen calibration
  • Detachable & Adhesive stand, can be placed on dashboard

  • Remote Control
  • Car Cigar Lighter Power Adapter
  • SKS Cable (USB Cable, AV 9PIN VGA
  • Stand
  • Stand Sticky Pad
  • Power Adapter (100-240v)

More Information
Manufacturer Quality Mobile Video
Part Number CVFQ-E118
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 300 Nit
Touchscreen Yes
Modulation NTSC and PAL
Headphone Transmitter Single channel
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 2 Audio Video Inputs
USB input No
SD Card input No
Mounting thread for stand mount No
Mount included Yes, Pedistal stand
Ac Adapter included Yes
Headrest Shroud included No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
