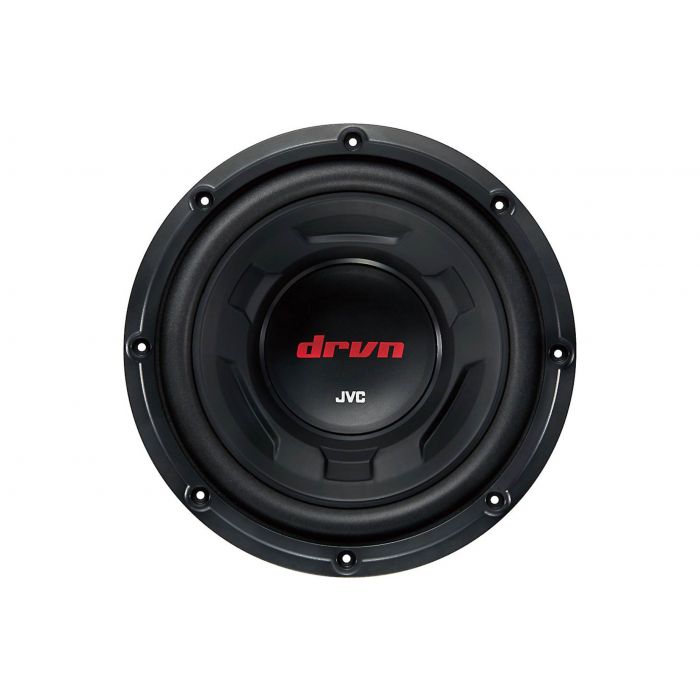

JVC CW-DR104 10 Inch Single Voice Coil Subwoofer with 1300 Watts Max Power

$119.99
In stock
SKU
CW-DR104

Key Features

  • 10" Subwoofer with single 4 ohm voice-coil
  • Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
  • 6-layer copper voice coil with aluminum former, improves heat resistance
  • 300 Watt nominal continuous power handling RMS
  • Sensitivity: 82 dB @ 1Watt / 1meter
Unit includes: 10 inch Car subwoofer driver and Instruction manual

JVC CW-DR104 10 Inch Single Voice Coil Subwoofer with 1300 Watts Max Power
    Features:
  • 10" Subwoofer with single 4 ohm voice-coil
  • Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
  • 6-layer copper voice coil with aluminum former, improves heat resistance
  • Large yoke with air convection generated from the vibration of the diaphragm is effectively used to cool the voice coil
  • Graduated Pleat Damper that minimizes mechanical damage and dramatically improves the damper’s durability
  • Nickel plated 8 gauge spring compression wire terminal
  • Polypropylene cone to produce more accurate sound
  • High-Density Foam Surround to keep the cone in precise alignment
  • Stamped Steel Frame to ensure durability
  • High-temperature tolerance adhesives resist thermal failure
    Power Handling Max:
  • 1,300 Watt maximum power handling
    Power Handling RMS:
  • 300 Watt nominal continuous power handling RMS
    Quick Specs:
  • Impedance: 4 Ohm per coil
  • Frequency response: 44 Hz– 300 Hz
  • Sensitivity: 82 dB @ 1Watt / 1meter
    Dimensions:
  • Mounting depth: 5-1/4 inches
  • Cutout diameter: 9-1/16 inches
  • Diameter: 10-3/16 inches
    Optimum enclosures:
  • Ported: 0.8 cubic feet
  • Sealed: 0.65 cubic feet
More Information
Manufacturer JVC
Part Number CW-DR104
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 34
QES 0.362
QMS 9.53
QTS .0348
RE 4
VAS 1.10 ft3
Xmax (millimeters) 6.3
Sensitivity 82 dB
Frequency Response 44Hz - 300 Hz
Sub enclosure type Ported / Vented, Sealed
Power Handling RMS 300 Watts
Power Handling Peak 1300 watts
Shallow Mount Subwoofer No
Mounting Depth 5.25 Inches
Cutout Dimensions 9.06 Inches
Sealed Enclosure Recommended Size 0.65
Ported Enclosure Recommended Size 0.80
Color Black
Warranty 1 Year
Sold as Individually
Return period 30 days
Exchange period 30 days
