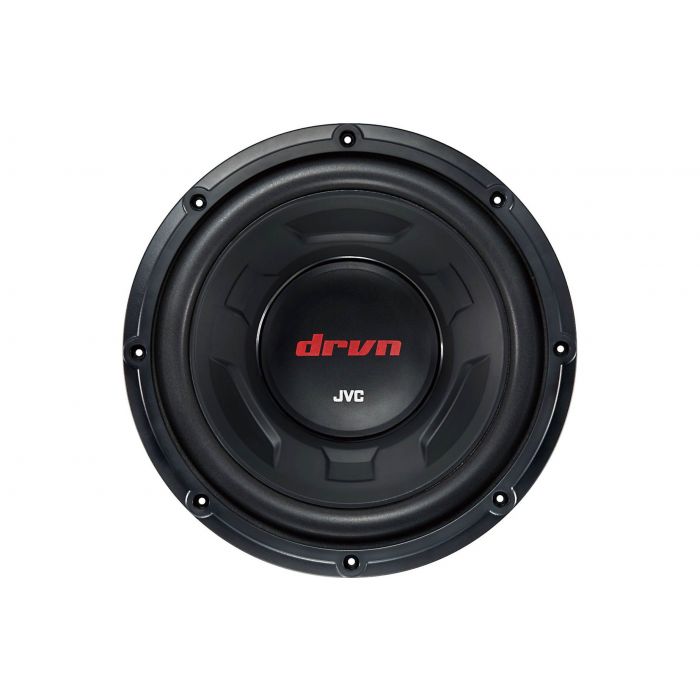

JVC CW-DR124 12 Inch Single Voice Coil Subwoofer with 1800 Watts Max Power
$119.99
In stock
SKU
CW-DR124
Expert Knowledge
Talk to a specialist
- 12" Subwoofer with single 4 ohm voice-coil
- Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
- 6-layer copper voice coil with aluminum former, improves heat resistance
- 350 Watt nominal continuous power handling RMS
- Sensitivity: 82 dB @ 1Watt / 1meter
Unit includes: 12 inch Car subwoofer driver and Instruction manual
JVC CW-DR124 12 Inch Single Voice Coil Subwoofer with 1800 Watts Max Power
JVC CW-DR124 12 Inch Single Voice Coil Subwoofer with 1800 Watts Max Power
-
Features:
- 12" Subwoofer with single 4 ohm voice-coil
- Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
- 6-layer copper voice coil with aluminum former, improves heat resistance
- Large yoke with air convection generated from the vibration of the diaphragm is effectively used to cool the voice coil
- Graduated Pleat Damper that minimizes mechanical damage and dramatically improves the damper’s durability
- Nickel plated 8 gauge spring compression wire terminal
- Polypropylene cone to produce more accurate sound
- High-Density Foam Surround to keep the cone in precise alignment
- Stamped Steel Frame to ensure durability
- High-temperature tolerance adhesives resist thermal failure
- Power Handling Max:
- 1,800 Watt maximum power handling
- Power Handling RMS:
- 350 Watt nominal continuous power handling RMS
- Quick Specs:
- Impedance: 4 Ohm per coil
- Frequency response: 38 Hz– 300 Hz
- Sensitivity: 82 dB @ 1Watt / 1meter
- Dimensions:
- Mounting depth: 6-3/16 inches
- Cutout diameter: 11-1/8 inches
- Diameter: 12-3/16 inches
- Optimum enclosures:
- Ported: 1.5 cubic feet
- Sealed: 1 cubic feet
| Manufacturer | JVC |
|---|---|
| Part Number | CW-DR124 |
| Driver Size | 12 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 3 ohm |
| FS | 28.0 |
| QES | 0.354 |
| QMS | 8.86 |
| QTS | 0.340 |
| RE | 4.4 |
| VAS | 2.79 ft3 |
| Xmax (millimeters) | 6.8 |
| Sensitivity | 82 dB |
| Frequency Response | 38Hz - 300 Hz |
| Sub enclosure type | Ported / Vented, Sealed |
| Power Handling RMS | 301 - 500 Watts |
| Power Handling Peak | 1800 watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | 6.19 Inches |
| Cutout Dimensions | 11.12 Inches |
| Sealed Enclosure Recommended Size | 1.0 ft3 |
| Ported Enclosure Recommended Size | 1.5 ft3 |
| Color | Black |
| Warranty | 1 Year |
| Sold as | Individually |
| Return period | 30 days |
| Exchange period | 30 days |
