Tview D75TSB Double DIN 7 Inch Wide Motorized Touch Screen Head Unit with Built-in Bluetooth for Vehicles

Tview D75TSB Double DIN 7 Inch Wide Motorized Touch Screen Head Unit with Built-in Bluetooth for Vehicles

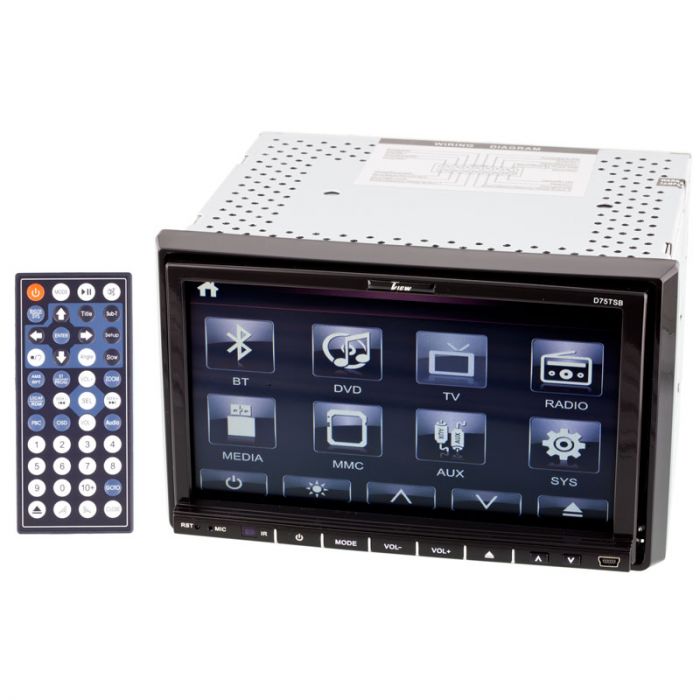

Tview D75TSB Double DIN 7 Inch Car Stereo with Bluetooth - Main

More Views

Tview
Ships Free!

Overall Rating 3.8 (Based on 1 reviews)

Tview D75TSB Product Highlights

  • 7 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Double DIN In-Dash CD receiver
  • Built-in A2DP Bluetooth facilitates hassle-free wireless connection
  • Easy plug-and play feature with the integrated USB slot and SD memory card reader
  • Supports AM & FM tuner with memory of 30 radio stations & auto scan feature
  • Region Free DVD player
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: Double DIN Stereo, Wireless Remote Control, Wiring harness, Mounting hardware, and Instruction manual

Tview D75TSB Double DIN 7 Inch Wide Motorized Touch Screen Head Unit with Built-in Bluetooth for Vehicles features:

Features:
  • Double DIN In-Dash CD receiver
  • 7 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Motorized flip down faceplate 4 angle positions
  • Blue button illumination
  • Built in Bluetooth for wireless phone calls
  • Bluetooth with A2DP for wireless audio streaming
  • AM/FM radio tuner
  • Front mount Mini-USB with full size adapter for access your entire music library on thumb drives
  • Front mount SD card slot for access your entire music library on thumb drives
  • Power Output: 4 channels x 50 watts peak and 4 channels x 25 watts RMS
  • DVD, VCD, MP3, MP4, DIVX, WAV, AVI, JPEG & WMA playback
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote
  • Built in Steering wheel control needs no interface
  • Switchable USA/Europe radio frequencies
  • Region Free DVD player
  • Last position memory so DVD resumes in the same place once vehicle is turned back on


Audio features:
  • Plays CD-RW, CD-R, DVD, VCD, MP3, MP4, DIVX, WAV, AVI, JPEG & WMA
  • Electronic shock protection with built in buffer
  • Includes AM & FM tuner with 30 station preset memory
  • Controls: Volume, Fader, Bass, Treble, Balance
  • CD text information, display artist and song information
  • MP3 ID3 tag information, display artist and song information


Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Internal microphone for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above


Inputs and outputs:
  • 3 Sets of 2V preamp outputs (front, rear and subwoofer)
  • Front USB connection accepts up to a 32Gb and directly controls iPod
  • Front SD card input behind motorized panel accepts up to a 32Gb and directly controls iPod
  • Steering wheel interface control input - Requires Axxess ASWC-1 Universal Steering Wheel Control
  • Back up camera input
  • 1 - Audio Video output
  • 1 - Audio Video input


Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 6-1/2"D x 4"H

Technical Specifications

Manufacturer Tview
Part Number D75TSB
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 7 inch - 8 inch
Illumination color Blue
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input None
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection No
iPod Video Connection No
SD Card input Yes, SD Card
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology N/A
NTSC/PAL NTSC and PAL
Audio Formats Mpeg-3, WAV, WMA
Video Formats Divx, JPEG, MPEG-2, MPEG-4, WMV
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS No
Satellite Radio No
Navigation No
GPS Maps No
Text to Speech No
Traffic Tuner No
Points of Interest No
Integration Module N/A
Steering Wheel Control Input Yes, Built in control
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 754168683772

Customer Reviews

It's good for the money
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
It was a decent unit for the price. The Bluetooth connected, but was slow to pick up from time to time. The stereo is low to boot. It did play CDs and DVDs well. I really like that the steering wheel controls worked well. The unit is quite a bit bigger than a standard double din. I had to modify my bezel to make it fit. The interface is incredibly boring and I wish they spent a little more time on it. All in all, I may buy this unit again but it maybe wise to spend the extra money and get a better one. (Posted on 5/30/2014)

Write Your Own Review

You're reviewing: Tview D75TSB Double DIN 7 Inch Wide Motorized Touch Screen Head Unit with Built-in Bluetooth for Vehicles

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by info@yahoo.com, Saturday, June 12, 2055

Question:

Will this Double Din radio fit my vehicle?

Answers:

  • Posted by Store Owner on Wednesday, June 13, 2018
    A:
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit www.metraonline.com
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
