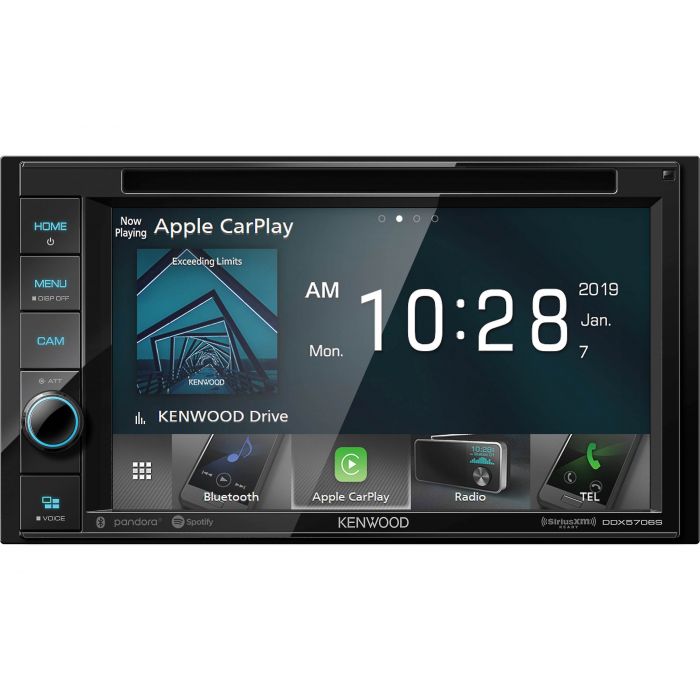

DISCONTINUED - Kenwood DDX5706S Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth, SiriusXM Ready and Apple CarPlay
$427.99
Out of stock
SKU
DDX5706S
Expert Knowledge
Talk to a specialist
Unit includes: Double DIN radio, Wiring harness, GPS Receiver, Parking brake extension, Mounting hardware, Back strap, USB cable, External microphone, and Instruction manual
-
Kenwood DDX6705S Double DIN 6.8" In-Dash DVD/CD/AM/FM Receiver with Bluetooth, Built-in HD Radio and Apple CarPlay
- 6.2 inch wide Double DIN LCD Touchscreen stereo with Apple CarPlay
- Clear Resistive Touch screen control
- LCD screen Resolution: 800 x 480 Pixels
- No Apple CarPlay
- Variable button illumination for perfect matching of your factory button color
- Customizable background and menus (JPEG / PNG / BMP file support)
- Multi-language menu (18 Languages (English, Spanish, French and others)
- Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
- App Mode for iPhone allows you to directly control compatible apps from the radio
- Optional remote control KNA-RCDV331
- Compatible with iDataLink Maestro RR for full integration with your vehicle systems
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Security key feature to prevent use after theft
- iPod and Iphone interface control with Apple USB cable
- Built in adjustable parking grid lines with color coded guide
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX, and AVI
- Region 1 DVD player
- Electronic shock protection with built in buffer
- MP3/WMA/iTunes AAC Audio Playback on CD/DVD/USB Card
- MP3 ID3 tag information, display artist and song information
- JPEG / PNG / BMP image playback on USB or DVD
- H.264/WMV Video Playback on CD/DVD/USB/SD Card
- Linear PCM decoder for excellent digital audio quality
- MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
- FLAC Audio Playback for high definition audio downloads
- Pandora Radio App Compatible from iPod touch, iPhone, Android or Blackberry
- 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
- 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
- High-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 220 Hz) and (Adjustable from -6dB / -12dB / -18dB / -24dB)
- Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
- Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
- Loudness function (Boost bass and upper frequencies)
- Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
- Digital time alignment with independent front, rear, and subwoofer delay
- Built in Navigation via Apple Maps and Waze
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Includes HD Radio AM & FM tuner with 24 preset stations memory
- RDS (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- SSP: Secure Simple Pairing
- SDP: Service Discovery Profile
- GAP: Generic Access Profile
- External microphone with 10 foot cord for optimal placement
- Bluetooth 3.0+ EDR certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Full text message support during calls
- Siri Eyes Free voice support
- Dual Phone connection capable
- Android Rapid Charge
- Bluetooth Auto Pairing
- Wireless Music Browsing
- 3 - 4V preamp outputs (Front, Rear and Subwoofer)
- 1 - Rear Camera input
- 1 - Front Camera input
- 1 - Rear Video output to connect to an external monitors
- 1 - 3.5mm rear audio video input for connection to external source
- 1 - 3.5mm iPod audio video input
- 1 - iDatalink input and output
- 1 - SiriusXM radio tuner input
- 1 - Rear USB connection
- 1 - Rear microphone input
- 1 - Rear GPS receiver input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Double DIN chassis
- Dimensions: 7"W x 7-1/8"D x 3-15/16"H
Features:
Media playback features:
Audio features:
- Apple Car Play features:
Bluetooth features:
Inputs and outputs:
Dimensions:
| Manufacturer | Kenwood |
|---|---|
| Part Number | DDX5706S |
| Chassis Size | Double DIN |
| Faceplate features | None |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 4 volts |
| LCD Screen Size | 5 inch - 6 inch |
| Illumination color | Full Color |
| Touchscreen | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 800 x 480 |
| Back up camera input | Yes |
| Audio Video inputs | 1 Audio Video Input |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Dual Zone Control | Yes |
| SD Card input | No |
| USB input | Yes |
| Smartphone Compatible | Yes |
| Smartphone Technology | Apple CarPlay |
| Built in Crossover | High-pass, Low-pass |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Navigation | via Smartphone |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Optional |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
