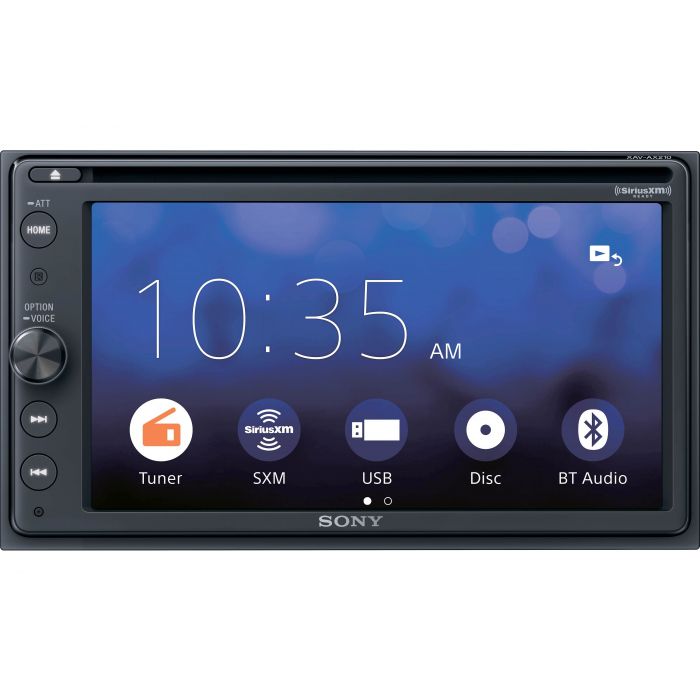

Sony XAV-AX210SXM 6.4" Double DIN DVD Receiver with Apple Carplay, Android Auto and free SiriusXM satellite radio tuner
$588.99
Out of stock
SKU
XAV-AX210SXM
Expert Knowledge
Talk to a specialist
- In Dash 6.4 inch Resistive touchscreen receiver
- Built in Bluetooth for phone calls and audio streaming
- Apple Car Play compatible
- Android Auto compatible
- Built in AM/FM radio tuner
- Includes Sirius XM radio tuner
- Single Rear USB Ports
- Steering wheel control compatible
Unit Includes: Double DIN receiver, Bluetooth Microphone, Remote control, Wiring harness, USB extension, Mounting hardware, and Instruction manual
Sony XAV-AX200 Double DIN CD Receiver with 6.4" Display, Apple Carplay and Android Auto
- Features
- Full-color 6.4" inch 17:9 Widescreen Double DIN In-Dash TFT and LCD Touch screen monitor
- Apple CarPlay and Android Auto make it easier than ever to use your smartphone's helpful features on the road
- Support Android Auto
- Supports Apple Carplay
- High power 4-channel amplifier: 4 channels x 55 watts Peak and 4 channels x 20 watts RMS (CEA rated)
- Built in Bluetooth with HFP, A2DP, AVRCP for wireless audio streaming and wireless phone operation
- Includes Sirius XM radio tuner
- (3) Camera inputs for reverse camera, front camera and side camera
- Adjustable parking grid lines
- LCD screen Resolution: 800 x 480 Pixels
- Dimmer and brightness control
- Ergonomic rotary dial for distraction-free operation
- Create virtual speakers on your dashboard with the Dynamic Stage Organizer
- White button illumination
- Steering wheel control input
- Includes wireless remote control
- Audio Features
- 10-band parametric equalizer with 8 preset and custom options (R & B / Rock / Pop / Hip-Hop / Electronica / Jazz / Soul / Country / Custom)
- DSO: Dynamic Stage Organizer adjusts the signal, improving the stereo positioning so music sounds like it's coming from right in front of you
- Intelligent Extrabass: Level1 / Level2 / Off
- Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±6dB Adjustments
- High-Pass filter with variable crossover frequencies (Adjustable: 50 Hz / 60 Hz / 80 Hz / 100 Hz / 120 Hz)
- Low-Pass filter with variable crossover frequencies (Adjustable from 50 Hz / 60 Hz / 80 Hz / 100 Hz / 120 Hz)
- Variable subwoofer level control (-10dB to +10dB)
- Subwoofer phase control 0° - 180°
- Media Playback
- Plays DVD, CD, FLAC, AAC, WMV, WAV, MP3, Xvid, MKV, FLV, JPEG and WMA
- Electronic shock protection with built in buffer
- MP3/WMA/AAC/FLAC/WMA Audio Playback on CD/USB
- MP4/WMV/MKV/FLV/Xvid Audio Playback on DVD/USB
- MP3 ID3 tag information, display artist and song information
- FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
- Sony Music Center App Compatible
- 24-bit Digital to Analog Converter
- AOA 2.0-compatible USB
- Tuner features:
- Includes HD Radio AM & FM tuner with 30 preset stations memory
- RDSB (Radio data service) Tuner
- SiriusXM radio ready (Includes Sirius XM tuner)
- 18 SiriusXM Satellite Radio station presets
- Category Search searches for channels in a certain category
- Inputs and Outputs
- 3 - 4V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 2 - Additional camera inputs
- 1 - Sirius XM radio tuner input
- 1 - Optional navigation input
- 1 - Rear USB input
- 1 - Bluetooth Microphone
- 1 - Steering wheel control input requires ASWC steering wheel interface
- 1 - iDataLink Maestro Rr input
- Android Auto features:
- Built in Navigation via Google Maps
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Google Assistant
- Place and receive hands-free text messages using Google Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Apple Car Play features:
- Built in Navigation via Apple Maps
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Internal Navigation ready
- Navigation ready - Nav sold separately
- Requires Sony XA-NV400 add-on navigation
- Sony XA-NV400 add-on navigation has mapping information with US, Alaska, Hawaii, Canada, and Puerto Rico
- Sony XA-NV400 offers hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
- 2-D and 3-D map views
- Utilizes TomTom NavApp technology
- Advanced lane guidance
- Bluetooth
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- NFC: Near Field Communication auto pairing
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.1: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 3.0 certified
- Siri Eyes Free voice support
- Voice control for Android
- Full voice recognition with SMS text response
- Supports dual simultaneous phone connections
- Dimensions:
- Single DIN chassis, Double DIN Display
- Chassis Dimensions: 7"W x 7-1/8"D x 3-15/16"H
- Display Dimensions (W X H X D): 7.01 x 3.94 x 6.36 in
| Manufacturer | Sony |
|---|---|
| Part Number | XAV-AX210SXM |
| Chassis Size | Double DIN |
| Faceplate features | None |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 4 volts |
| LCD Screen Size | 5 inch - 6 inch |
| Illumination color | White |
| Swivel Screen | No |
| Touchscreen | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 800 x 480 |
| Front camera input | Yes |
| Back up camera input | Yes |
| Audio Video inputs | 1 Audio Video Input |
| Front mounted auxiliary input | None |
| Audio Video Outputs | 1 Audio output (Stereo) |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Dual Zone Control | No |
| SD Card input | No |
| USB input | Yes |
| Smartphone Compatible | Yes |
| Smartphone Technology | Apple CarPlay and Android Auto |
| Built in Crossover | High-pass, Low-pass |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius/XM |
| Navigation | via Smartphone |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Yes |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| UPC Code | 027242299818 |
| Return period | 30 days |
| Exchange period | 30 days |
