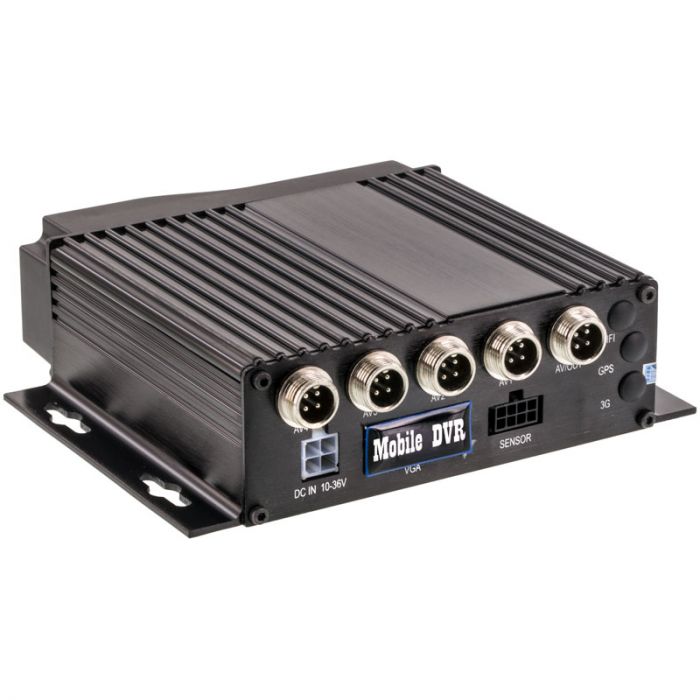

Safesight DVR720P AHD 720p 4-Channel Mobile DVR with Motion Sensor Recording

Safesight DVR720P AHD 720p 4-Channel Mobile DVR with Motion Sensor Recording

Safesight DVR720P 720p 4-Channel Mobile DVR - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight DVR720P Product Highlights

  • 720p (1280 x 720) H.264 Mobile DVR system
  • Records 4 Channel video and 2 Channel audio
  • Time and Date stamp option
  • Dual SD card slots for maximum record time
  • Lockable front to prevent tampering with media storage
  • 8 - 36 VDC operation, perfect for commercial vehicles
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


DVR720P HD DVR for vehicles

Record everything that is taking place as you drive. The Safesight DVR720P is the first DVR recorder that can simultaneously records 4 cameras in 720p HD! This makes it perfect for fleet vehicles such as busses, commercial vehicles and other applications where all areas of the vehicle need to be monitored and recorded. The lockable front cover prevents drivers from removing or tampering with either of the dual SD cards. The dual SD cards allow up to 128 GB of storage perfect for days worth of recording. The DVR will record over the oldest footage first once the SD cards fill up.

DVR inputs and outputs

The DVR720P also has a video output with quad screen display so the driver can use a connected display to see what is behind or around the vehicle. The DVR720P records in H.264 and can playback all recorded data directly on a computer without software.

Safesight DVR720P 720p 4-Channel Mobile DVR
  • 720p (1280 x 720) H.264 Mobile DVR system with high quality recording of everything as it happens in your vehicle or truck
  • Utilizes AHD signal type for excellent video quality
  • Records 4 Channel video and 2 Channel audio
  • Real-time HD Video Recording, 720P / D1 / HD1 / CIF record modes with adjustable frame rate quality
  • Dual SD card slots for a maximum capacity of 128GB of recording media
  • Vibration and dust resistant housing to prevent corruption and damage to SD cards
  • Variable ignition delay so unit will not power down when vehicle is being started, can be set for diesel and gasoline engines
  • Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
  • Timer record options (7-day with on and off time)
  • Uninterrupted cycle recording, unit will record over oldest stored footage
  • Quad screen output for use with any LCD monitor
  • Vehicle identification menu for embedded vehicle information
  • Time and Date stamp option
  • Built in clock
  • Password protect settings - User and Administrator level passwords
  • Lockable front panel to prevent someone from removing the SD cards
  • UPS Technology: All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged
  • Over-load / Over-voltage / Short Circuit / Reverse Protection
  • Records onto 2Gb - 64Gb Micro SD card (2 slots)
  • Video Recording format: H.264
  • Audio Recording format: G.726
  • Playback video on any computer
  • Video recording modes: HD (1280 x 720)
    4 Recording methods:
  • Normal Mode: Continuous recording will automatically start after booting
  • Time Mode: Recording by day of week and time of day
  • Alarm Mode: Recording by alarm input (Optional harness required)

    Video Bit rates:
  • PAL: 100 FPS @ 50Hz
  • NTSC: 120 FPS @ 60Hz
  • CIF: 256Kbps - 1.5Mbps (8 levels of video quality)
  • HD1: 600Kbps - 2.5Mbps (8 levels of video quality)
  • D1: 800Kbps - 3Mbps (8 levels of video quality)
  • 720P: 4Mbps - 6Mbps (8 levels of video quality)
    Playback methods:
  • Search Mode: Search video files anytime per day
  • Support forward and backward play at the speed of: 2x / 4x / 8x / 16x
    Inputs and outputs:
  • 4 - Camera inputs
  • 1 - Monitor output for audio and video
  • 1 - Front IR sensor
  • Alarm inputs: Cam 1, Cam 2, Cam 3, Cam 4 (Optional harness required)
  • Alarm output: Alarm 1, Alarm 2 (Optional harness required)
    Power requirements:
  • Power input: 8 VDC - 36 VDC
  • Power output: 12 VDC @ 2.5 amps
  • Internal capacitor for data protection
  • Includes 4 metal heavy duty mounting brackets
  • Includes allen keys
  • Dimensions without mount: 4-3/8" (W) x 1-3/8" (H) x 5-3/8" (D)
    What's in the box:
  • 4-Channel 720p HD DVR recorder
  • Remote control
  • 4 - Camera input adapter cables
  • 1 - Video output adapter cable
  • Mounting hardware
  • Locking keys
  • Instruction manual

Note: Cameras must be used in pairs, unit can record 4 channels of 720p HD or 2 Channels in SD and 2 Channels in HD. You cannot use three HD cameras and one SD camera

Technical Specifications

Manufacturer Safesight
Part Number DVR720P
Recorder Type DVR Recorder
Camera Sensor type No
Camera diameter No
Infrared Illumination No
GPS Data No
Built in Microphone No
Built in Speakers No
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
LCD back light type No
LCD Screen Brightness No
Touchscreen No
Headphone Jack No
Built in FM Modulator No
Audio Video inputs 4 Audio Video Input
Audio Video Outputs 1 Audio/Video output
HDMI output No
USB input No
SD Card input Yes, SD Card
Cigarette Lighter Cord Included No
Auto on/off Yes
Slide track on back No
Stand Mount included No
Mounting thread for stand mount No
Operation Voltage 12 - 32 Volt DC
Housing material No
Trigger wire Yes
Image Flip Function No
Quad Screen Yes
Warranty 1 Year
Color Black
UPC Code No
