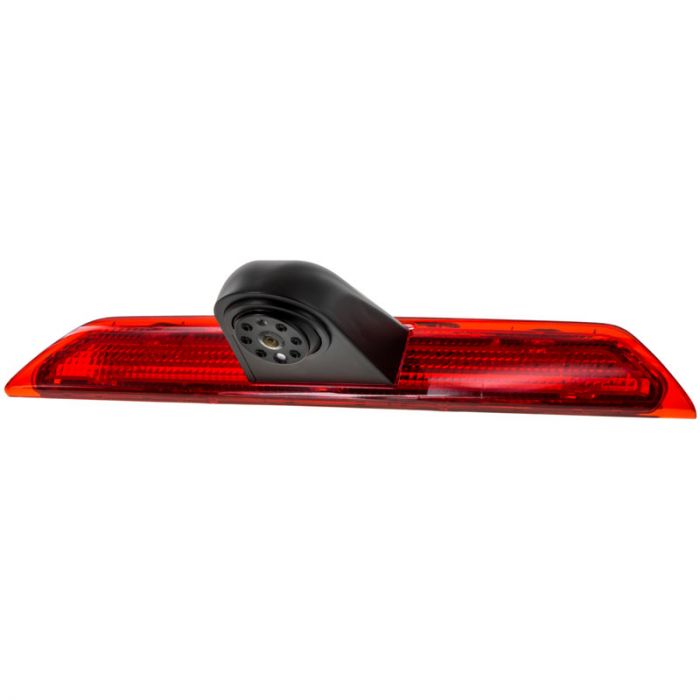

Safesight TOP-SS-6013 Vehicle Specific Reverse Back up Camera for 2014 - 2016 Ford Transit Full Size Van
Safesight TOP-SS-6013 Vehicle Specific Reverse Back up Camera for 2014 - 2016 Ford Transit Full Size Van
Key Features
Factory fit for 2014 and up Ford Transit Cargo Van 2014 - and up Ford Transit 150/250/350 170° viewing angle for extra wide angle 1/3" Sony CCD Lens Integrated LED Brakelight Factory fit in place of factory brake light
Unit includes: Back up camera, Factory brake light harness, 4-pin adapter, and Instruction manual
Safesight TOP-SS-6013 Vehicle Specific Reverse Back up Camera for Ford Transit Full Size Van
Features:
Factory fit for 2014 and up Ford Transit Cargo Van
2014 - and up Ford Transit 150/250/350
4-Pin connector for back up camera
Utilizes OEM reflector and factory brake lights for easy installation of factory brake light components
No drilling or modification neccessary, mounts in exisiting location
6 Infrared LED's of nightvision illumination
Includes 4-Pin to RCA adapter for use with non-commercial grade monitors
Waterproof IP68
170° viewing angle for extra wide angle
1/3" Sony CCD camera sensor
NTSC video signal
Effective pixels: 510 x 492
0 Lux with IR
More Information
Manufacturer
Safesight
Part Number
TOP-SS-6013
Modulation
NTSC only
Warranty
1 Year
Color
Black
Viewing Angle
170 degrees
Camera diameter
2.96 mm
Connector Type
4 Pin Connector
Built in Microphone
No
Parking grid lines
No
Reverse Image
Yes - Reverse Image
Trigger wire
Yes
Waterproof ingress protection
IP67 - Dust; Immersion up to 1 m
Back up camera type
Vehicle Specific Camera
Camera Sensor type
CCD
Infrared Illumination
Yes
Operation Voltage
12-15 Volt DC
Vehicle Year
2014, 2015, 2016, 2017
Vehicle Brand
Ford
Vehicle Model
Transit, Transit 1500, Transit 2500, Transit 3500, Transit 4500
Return period
30 days
Exchange period
30 days
