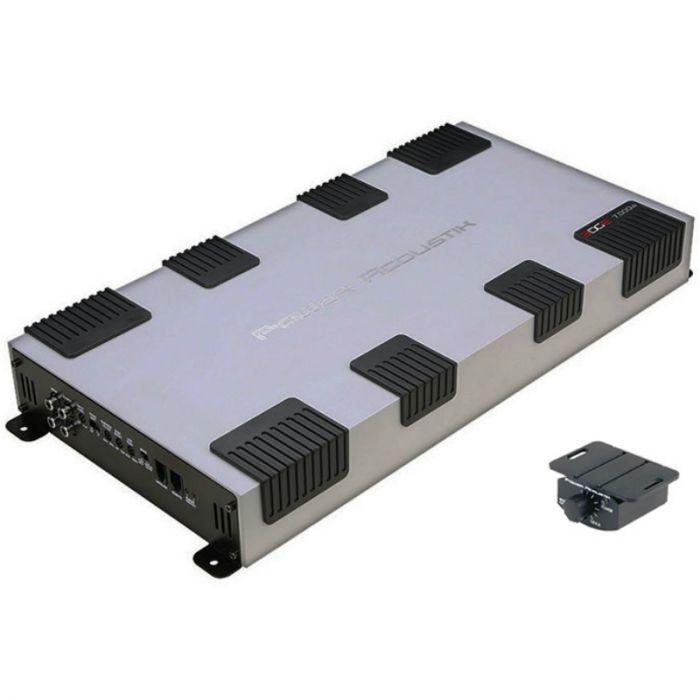

Power Acoustik EG1-7000D 1 Channel Class D Amplifier - 7000 Watts

$224.99
In stock
SKU
EG17000D

Key Features

  • Power Acoustik EG1-7000D Class D Monoblock Amplifier
  • Designed as a dedicated subwoofer amplifier
  • 1 Ohm stable for for optimal subwoofer wiring
  • 3500 Watts RMS x 1 channels @1-Ohms
  • 2300 Watts RMS x 1 channels @2-Ohms
  • RCA level inputs

The EG1-7000D is an elegantly designed amplifier with 7000 watts of maximum power output. The 1-ohm Monoblock Operation delivers a insane output with and allows you to configure your subwoofers the way you want. The MOSFET Power Supply houses a robustly constructed PCB with PWM. The internal circuitry is protected from direct shortages, thermal hazards and overload of power. If you have a factory stereo system, you can further enhance its audio levels with the High/Speaker level that accepts the speaker signal and Low level RCA inputs which accepts signal from the pre-amp outputs of the source unit.

4 Gauge Power wiring and 8 Gauge speaker wire outputs enables a higher and stable flow of current. Enjoy the pure audio quality with variable 12dB High and Low Pass crossovers. Feel the beats with the 12dB Bass Boost system that increases the Low Octave melodies. The 180° Phase Shift on the other hand is designed to improve the Low Octave Dynamics. Control the your bass level easily with the included dash mount remote control.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Power Acoustik EG1-7000D 1 Channel Class D Amplifier - 7000 Watts
    Features:
  • Power Acoustik EG1-7000D Class D Monoblock Edge Series Amplifier
  • Class-D Dedicated Subwoofer Mono-block Amplifier
  • Robust MOSFET Power Supply with Military grade PCB with PWM
  • 1 ohms Stable for insane power outputs
  • Strappable for double power output by linking two amplifiers together
  • 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
  • High Speaker Level and Low Level RCA Input
  • Variable input gain control with low level input voltage up to 6 Volts
  • Nickel plated low level RCA inputs
  • Variable low-pass crossover: 30 - 250Hz, 12 dB/octave
  • Variable sub-sonic filter: 20 - 50Hz, 12 dB/octave
  • Variable bass boost: 0dB - +12dB
  • Output phase control: 0° - 180°
  • Dash Mounted Remote Control (included)
  • Gain Control (included)
  • Color: Satin Silver Chassis
    Inputs and Outputs:
  • 2 - Nickel-plated RCA low level inputs (250 mV - 6 V)
  • 2 - Nickel-plated RCA level outputs
  • Input sensitivity is 250 mV to 6V
  • 8 AWG to 18 AWG speaker connections
  • 4 AWG to 8 AWG power connections
    Max Power Output:
  • 1-Ohms: 7,000 watts x 1 channel
  • 2-Ohms: 4,600 watts x 1 channel
  • 4-Ohms: 2,200 watts x 1 channel
    RMS Power Output:
  • 1-Ohms: 3,500 watts x 1 channel
  • 2-Ohms: 2,300 watts x 1 channel
  • 4-Ohms: 1,100 Watts x 1 channel
    Built in Crossover:
  • Variable low-pass crossover: 30 - 250Hz, 12 dB/octave
  • Variable sub-sonic filter: 20 - 50Hz, 12 dB/octave
  • All Pass
    Dimensions:
  • Overall Dimensions: 2.25” (H) x 9” (D) x 16.25” (W)
    Current consumption:
  • Recommended Fuse: 200 amp
More Information
Manufacturer Power Acoustik
Part Number EG17000D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 3,500.00
Total RMS Power at 2 ohm 2,300.00
Total RMS Power at 4 ohm 1,100.00
Total Peak Power Output 7,000.00 (Watts)
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output 14000 Watts
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 709483052833
Return period 30 days
Exchange period 30 days
