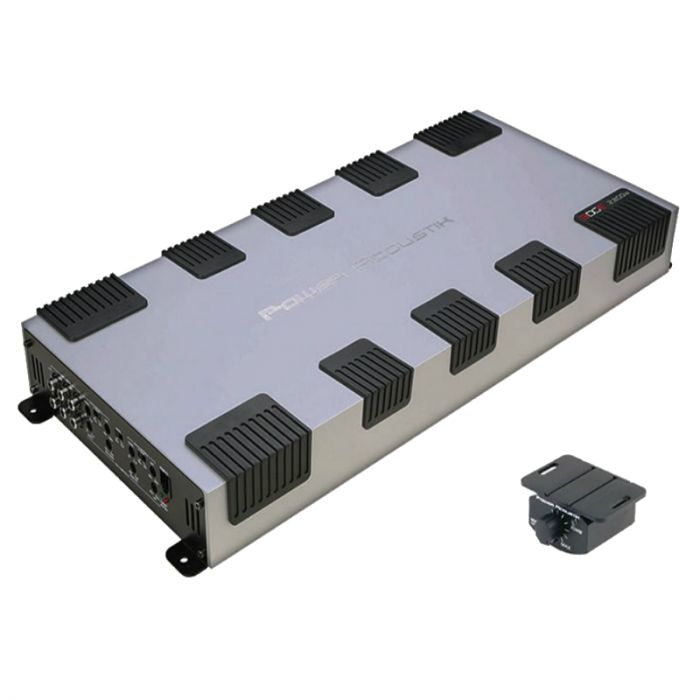

DISCONTINUED - Power Acoustik EG5-2800 5 Channel Class AB Amplifier - 2800 Watts

The EG5-2800 is an elegantly designed amplifier with 2,800 watts of maximum power output. This 5-channel amplifier provides 4-channel stereo plus one subwoofer output with possible impedances of 2-ohms and 4-ohms. The amplifier can dual bridged for 3-channel operation with an impedance of 4 ohms and a single subwoofer output of 2 ohms. The MOSFET Power Supply houses a robustly constructed PCB with PWM. The internal circuitry is protected from direct shortages, thermal hazards and overload of power. If you have a factory stereo system, you can further enhance its audio levels with the High/Speaker level that accepts the speaker signal and Low level RCA inputs which accepts signal from the pre-amp outputs of the source unit.

4 Gauge Power wiring and 8 Gauge speaker wire outputs enables a higher and stable flow of current. Enjoy the pure audio quality with variable 12dB High and Low Pass crossovers.

Features:
• Power Acoustik EG5-2800 Class AB 5-Channel Edge Series Amplifier
• Designed as a dedicated full audio system amplifier with full range audio for door speakers and subwoofers
• Robust MOSFET Power Supply with Military grade PCB with PWM
• 2 ohms stable in stereo and 4 ohm stable in mono for high power output
• 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
• High Speaker Level and Low Level RCA Input
• Variable input gain control with low level input voltage up to 6 Volts
• Nickel plated low level RCA inputs
• Variable subsonic filter: 15 - 55Hz, 12 dB/octave (Channels 5)
• Variable low-pass crossover: 30 - 150Hz, 12 dB/octave (Channels 5)
• Variable high-pass crossover: 10 - 150Hz, 12 dB/octave (Channels 1 - 4)
• Variable bass boost: 0dB - +12dB
• Includes subwoofer level controller
• Gain Control
• Color: Satin Silver Chassis

Inputs and Outputs:
• 6 - Nickel-plated RCA low level inputs (250 mV - 6 V)
• Input sensitivity is 250 mV to 6V
• 8 AWG to 18 AWG speaker connections
• 4 AWG to 8 AWG power connections

Max Power Output:
• 4-Ohms Dual Bridged: 640 watts x 2 channel and 1520 watts x 1 channel
• 2-Ohms Stereo: 320 watts x 4 channel and 1520 watts x 1 channel
• 4-Ohms Stereo: 160 watts x 4 channel and 760 watts x 1 channel

RMS Power Output:
• 4-Ohms Dual Bridged: 320 watts x 2 channel and 760 watts x 1 channel
• 2-Ohms Stereo: 160 watts x 4 channel and 760 watts x 1 channel
• 4-Ohms Stereo: 80 watts x 4 channel and 380 watts x 1 channel

Built in Crossover:
• Variable subsonic filter: 15 - 55Hz, 12 dB/octave (Channels 5)
• Variable low-pass crossover: 30 - 150Hz, 12 dB/octave (Channels 5)
• Variable high-pass crossover: 10 - 150Hz, 12 dB/octave (Channels 1 - 4)
• All Pass

Dimensions:
• Overall Dimensions: 2.25” (H) x 9” (D) x 19.75” (W)

Current consumption:
• Recommended Fuse: 200 amp
