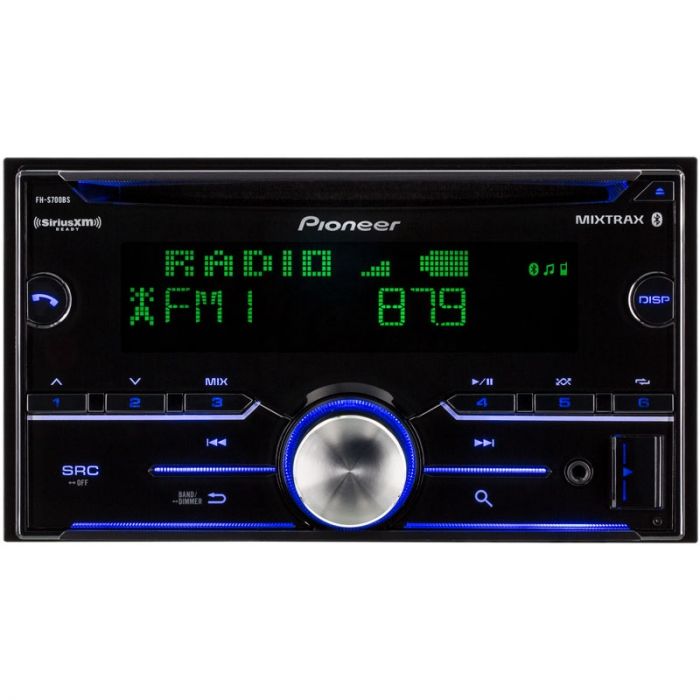

Pioneer FH-S700BS Double-DIN In-Dash CD Receiver with USB control for iPod / iPhone, Bluetooth, Pandora and Pioneer ARC App
- Double-DIN in-dash CD receiver
- Dual Zone color illumination
- Compatible with Pioneer ARC App for advanced music control
- Built-In MOSFET 50W x 4 Amplifier
- Pandora and Spotify support
- 3 sets of 2 volt RCA outputs
- Built in Bluetooth with A2DP for wireless audio streaming
- MP3, WAV, AAC, WMA playback from CD's and USB; FLAC playback from USB
-
Pioneer FH-S700BS Double-DIN In-Dash CD Receiver
- Double DIN In-Dash CD receiver
- Multi-Segmented LCD Display with LED Backlight (13+4 characters)
- Dual Zone color illumination
- Full color custom illumination, 210,000 possible colors
- Built in Bluetooth with A2DP for wireless audio streaming
- Compatible with Pioneer ARC App for advanced music control
- iPhone and Android compatibility via USB
- AM/FM radio tuner
- Voice control for iPhone, tell your car stereo who to call or what station to listen to
- iPod with USB, simply connect your iPhone or iPod touch and access your entire music library
- Pandora support with USB, simply connect your iPhone or iPod touch and stream Pandora
- App Mode for direct control of your iPhone and iPod apps
- Power Output: 4 channels x 50 watts peak and 4 channels x 17 watts RMS
- MP3, WAV, AAC, WMA playback from CD's and USB; FLAC playback from USB
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Enjoy Your Favorite Music in a Non-Stop Mix with MIXTRAX
- Plays CD-RW, CD-R, MP3, AAC, WAV, FLAC and WMA
- MP3 ID3 tag information, display artist and song information
- Electronic shock protection with built in buffer
- CD text information, display artist and song information
- Includes Supertuner IIID AM & FM tuner with 24 station 6 presets memory
- Controls: Volume, Fader, Bass, Treble, Balance
- 13-band Graphic equalizer with preset and custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
- High-Pass filter with variable slopes and crossover frequencies
- Bass Boost
- Loudness: 3 Modes
- Built in time-alignment
- Listening Position
- Advanced Sound Retriever
- Built-in MOSFET 50W x 4 Amplifier
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- 3 - Sets of 2V preamp outputs (front, rear and subwoofer)
- 1 - Front USB connection
- 1- Front 3.5mm Audio connection for connection to multiple devices
- 1 - Satellite Radio Input - SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
- 1 - Steering wheel control requires ASWC steering wheel interface
- Double DIN chassis
- Dimensions: 7"W x 7-1/8"D x 3-15/16"H
Features:
Media Playback features:
Audio features:
Bluetooth features:
Inputs and outputs:
Dimensions:
Manufacturer | Pioneer |
---|---|
Part Number | FH-S700BS |
Chassis Size | Double DIN |
Illumination color | Full Color |
Disc Playback | CD |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Radio Data Service - RDS | Yes |
Satellite Radio | Sirius XM Ready |
Front mounted auxiliary input | 3.5 mm audio input |
Audio Video inputs | 1 Audio Input |
USB input | Yes |
SD Card input | No |
Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 2 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | High-pass, Low-pass |
Wireless Remote Control | Yes |
Warranty | 1 Year |
UPC Code | 884938369251 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
