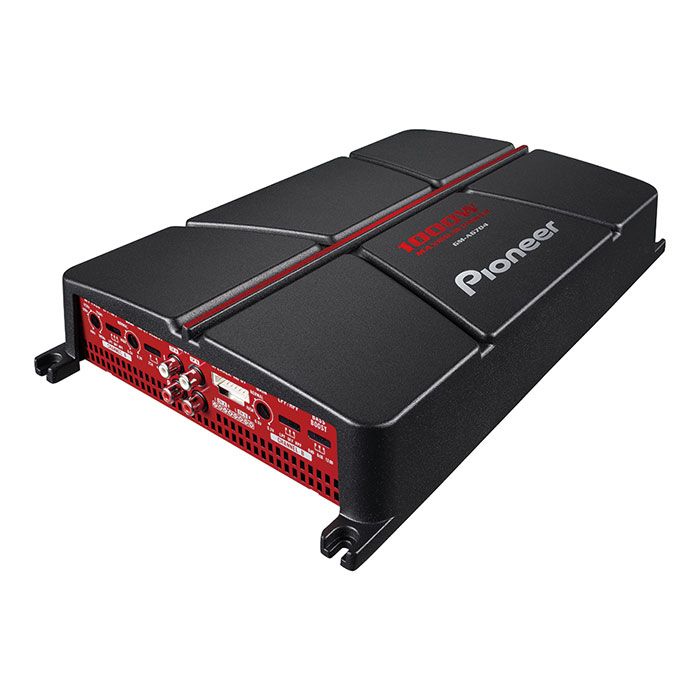

Pioneer GM-A6704 1000 Watt Class AB 4-Channel Car Amplifier
$117.99
In stock
SKU
GMA6704
Expert Knowledge
Talk to a specialist
- 4-Channel Car Amplifier
- Speaker level inputs with auto turn-on
- Class AB for High-Quality Sound
- RMS Power Output - 4 ohms: 60 W x 4
- RMS Power Output - 2 ohms: 95 W x 4
Unit includes: 4-Channel power amplifier, Mounting hardware, and Instruction manual
Pioneer GM-A6704 1000 Watt Class AB 4-Channel Car Amplifier
Pioneer GM-A6704 1000 Watt Class AB 4-Channel Car Amplifier
- Features:
- 1000 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Compact Design for Versatile Installation Options without compromising sound quality
- Class-AB design for excellent sound quality
- CEA-2006 Compliant amplifier for true power output
- 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
- Bridge mode allows to run this as a three channel or two channel amplifier
- 4-channel RCA inputs accepts up to 6 volt input signals
- Frequency Response of 10 Hz - 70 Khz
- Signal to Noise Ratio: >75dB
- Dimensions: 13-3/4" (W) x 2-3/8" (H) x 8-1/2" (D)
- Fuse rating: 30 amp x 1
- Audio controls:
- Variable high-pass filter: 12dB/octave Variable 40 - 500 Hz (Channels 1 - 2)
- Variable low-pass filter: 12dB/octave Variable 40 - 500 Hz (Channels 1 - 2)
- Fixed high-pass filter: 12dB/octave Variable 80 Hz (Channels 3 - 4)
- Fixed low-pass filter: 12dB/octave Variable 80 Hz (Channels 3 - 4)
- Variable Bass Boost: 0dB/6dB/12dB @ 40Hz
- RMS Power Rating:
- 4 ohms: 60 watts x 4 channels
- 2 ohms: 95 watts x 4 channels
- 4 ohms: 190 watts x 2 channel (Bridged)
- Maximum Dynamic Power Rating:
- 4 ohms: 170 watts x 4 channels
- 2 ohms: 250 watts x 4 channels
- 4 ohms: 500 watts x 2 channel (Bridged)
| Manufacturer | Pioneer |
|---|---|
| Part Number | GM-A6704 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 6 volts |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 884938340267 |
| Return period | 30 days |
| Exchange period | 30 days |
