DISCONTINUED - Sound Storm Laboratories FR1600.4 1,600 Watts Max Force Series Class AB 4-Channel Amp
$80.99
Out of stock
SKU
FR1600.4
Expert Knowledge
Talk to a specialist
- Full Range Class AB car amplifier
- 4 channel output to drive stereo speakers or run bridged to power a subwoofer
- MOSFET power supply
- Variable low and high-pass crossovers
- Variable bass boost: 0dB-18dB
- Includes remote subwoofer level control
- 4-Ohms: 150 watts RMS x 4 channel
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

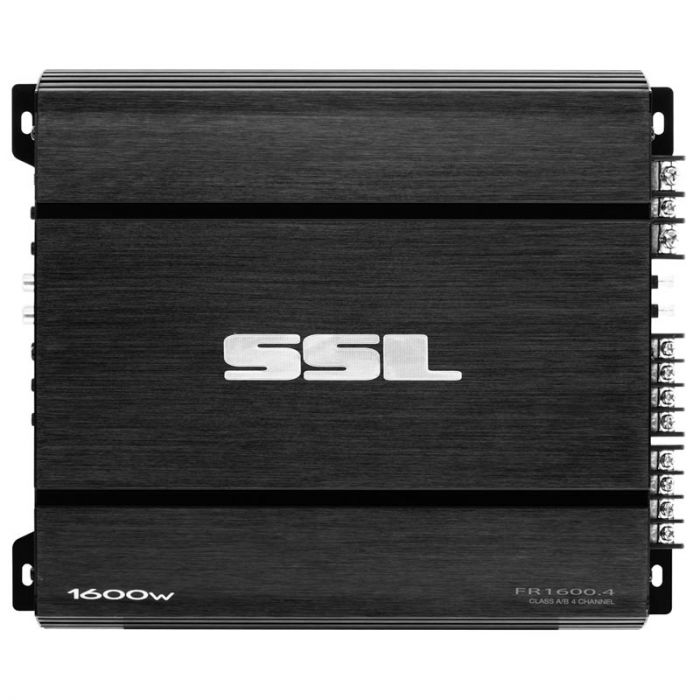

Sound Storm Laboratories FR1600.4 FORCE Series 4-Channel Class AB Amp
Sound Storm Laboratories FR1600.4 FORCE Series 4-Channel Class AB Amp
-
Features:
- Full Range Class AB car amplifier
- 4 channel output to drive stereo speakers or run bridged to power two subwoofers
- MOSFET power supply
- Low and high-level inputs
- Variable-input gain control
- Variable low and high-pass crossovers
- Variable bass boost: 0dB-18dB
- Includes remote subwoofer level control
- Frequency resp: 9 Hz to 50 kHz ± 1 dB
- Signal to noise ratio: 102 dB
- Channel seperation: 90 dB
-
Inputs and Outputs:
- 4 - Nickel-plated RCA low level inputs (150 mV - 4 V)
- 2 - 4 Wire speaker level inputs (5V - 10 V)
- Input sensitivity is 150 mV to 4V
- 10 AWG to 18 AWG speaker connections
- 4 AWG to 8 AWG power connections
-
Max Power Output:
- 2-Ohms: 400 watts x 4 channel
- 4-Ohms: 400 watts x 4 channel
-
RMS Power Output:
- 2-Ohms: 300 watts x 4 channel
- 4-Ohms: 150 watts x 4 channel
- 4-Ohms: 600 Watts x 2 (Bridged)
-
Built in Crossover:
- Fixed high-pass filter: 80 Hz @ 12 dB/octave
- Variable low-pass filter: 35 Hz - 160 Hz @ 12 dB/octave
- All Pass
-
Dimensions:
- Overall Dimensions: 9.8125” (L) x 2.375” (H) x 9.688” (W)
-
Current consumption:
- Recommended Fuse: 30 amp
| Manufacturer | Sound Storm Laboratories |
|---|---|
| Part Number | FR1600-4 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 5 volts |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 791489123143 |
| Return period | 30 days |
| Exchange period | 30 days |
