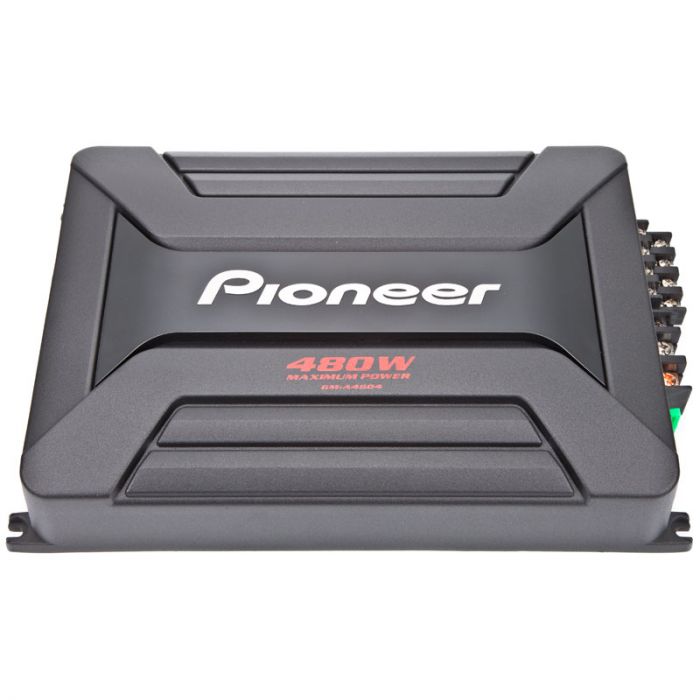

DISCONTINUED - Pioneer GM-A4604 480 Watt Class AB 4-Channel Car Amplifier
$90.99
Out of stock
SKU
GM-A4604
Expert Knowledge
Talk to a specialist
Unit includes: Power Car Amplifier, and Instruction manual
Pioneer GM-A4604 480 Watt Class AB 4-Channel Car Amplifier features:
Pioneer GM-A4604 480 Watt Class AB 4-Channel Car Amplifier features:
- 480 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Compact Design for Versatile Installation Options without compromising sound quality, Efficient Class-AB digital Car Amplifiers are 50% smaller that the Pioneer GM-Series Car Amplifiers.
- Improved Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Stability circuitry allows connection to 1 ohm subwoofer systems which allows connection of large or multiple subwoofers.
- Variable Low Pass filters and high pass filters allow you to adjust the playback frequencies from 40 Hz to 500 Hz with 12dB per octave slopes
- Speaker level inputs allow you to connect this Car Amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
- Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
- Bridge mode allows to run this as a three channel or two channel amplifier
- 4 channel RCA inputs accepts up to 6.5 volt input signals
- RCA Pass through outputs to connect multiple amplifiers in series
- Bass boost 0-18dB
- Gold plated screw terminal connections for Power Inputs and Speaker level outputs
- Continuous Power Output (2 Ω, ≤ 1% THD+N): 60 W x 4
- Continuous Power Output (4 Ω, ≤ 1% THD+N): 40 W x 4
- Frequency Response: 10Hz to 35kHz
- Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
- Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB
- Dimensions: 8 1/2" (W) x 2 3/8" (H) x 12 1/2" (D)
| Manufacturer | Pioneer |
|---|---|
| Part Number | GM-A4604 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 884938219709 |
| Return period | 30 days |
| Exchange period | 30 days |
