Metra GMOS-LAN-01 Onstar Interface for 2006 and Up GM LAN Data Bus for Buick, Chevrolet, GMC, Pontiac, Saturn and Suzuki Vehicles

$123.99
In stock
SKU
GMOS-LAN-01

Key Features

  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in amplified audio systems
  • Retains chimes
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)

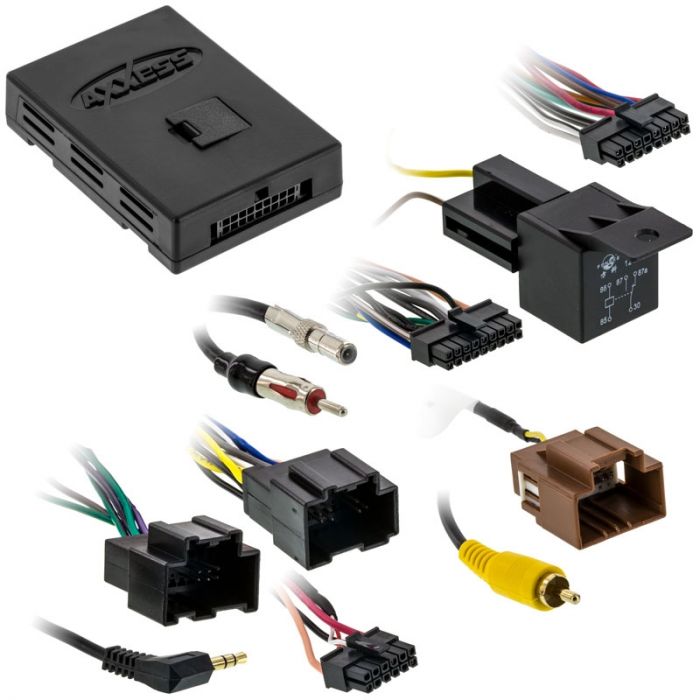

Unit includes: GMOS-LAN-06 Interface control box, 16 pin wire harness, 18 pin to 30 pin GM harness, Backup camera harness, Antenna adapter, and Instruction manual

Metra GMOS-LAN-01 Onstar Interface for 2006 and Up GM LAN Data Bus for Buick, Chevrolet, GMC, Pontiac, Saturn and Suzuki Vehicles

The GMOS-LAN-01 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle and OnStar system. The GMOS-LAN-01 is designed for 2006 and Up Saturn GM vehicles that use the new GMLAN data bus system. The interface retains full functionality of the OnStar system as well as all safety and warning chimes.

The GMOS-LAN-01 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting chime and OnStar volumes as well. In addition to these features, the GMOS-LAN-01 now has the required outputs for the installation of a navigation radio.



Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Used in amplified audio systems
  • Retains chimes
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • ASWC-1 harness included (ASWC-1 not included)
  • Retains OnStar and OE Bluetooth if equipped
  • Adjustable volume for chimes and OnStar
  • Interface is designed for non-amplified audio systems
  • High level speaker input
  • USB updatable
  • Retains balance and fade
  • Retains OE satellite and OE backup camera
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange/White – Dash Light Dimmer/Illumination
  • Blue/White – Amplifier turn on
  • Brown - Mute connection
  • Light green – (-) Parking brake lead
  • Blue/Pink – VSS (Vehicle speed sensor)
  • Green/Purple – (+) Reverse trigger
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Fitments:

Buick:
  • Buick Enclave 2007 - and Up
  • Buick Lucerne 2006 - and Up


Chevrolet:
  • Chevrolet Avalanche 2007 and Up
  • Chevrolet Equinox 2007 - 2009
  • Chevrolet Express 2008 and Up
  • Chevrolet Impala 2006 and Up
  • Chevrolet Monte Carlo 2006 - 2007
  • Chevrolet Silverado 2007 and Up
  • Chevrolet Suburban 2007 and Up
  • Chevrolet Tahoe 2007 and Up
  • Chevrolet Traverse 2009 and Up


GMC
  • GMC Acadia 2007 and Up
  • GMC Savanna 2008 and Up
  • GMC Sierra 2007 and Up
  • GMC Yukon 2007 and Up


Pontiac
  • Pontiac Torrent 2007 - 2009
  • Pontiac Vibe 2009 (Only required for retention of Onstar - NAV outputs not applicable)
  • Saturn Outlook 2007 - 2009
  • Saturn Vue 2008 - 2009


Suzuki
  • Suzuki XL-7 2007 - 2008


More Information
Manufacturer Metra
Part Number GMOS-LAN-01
Wiring harness function Replace Factory Radio
Warranty 1 Year
UPC Code 086429079223
Return period 30 days
Exchange period 30 days
