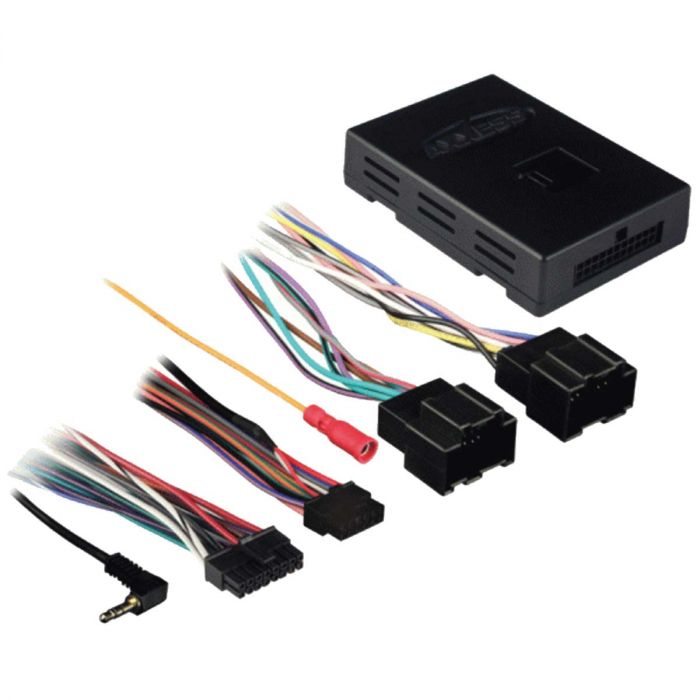

Metra GMOS-LAN-02 GM OnStar Interface for factory amplified sound systems for 2006 and up vehicles

The GMOS-LAN-02 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle. The GMOS-LAN-02 is designed for 2006 and up GM vehicles with amplified audio systems that use the new GMLAN data bus system. The interface retains full functionality of the OnStar system as well as all safety and warning chimes.

The GMOS-LAN-02 will also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting chime and OnStar volumes as well. In addition to these features, the GMOS-LAN-02 now has the required outputs for the installation of a navigation radio.

• Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in amplified systems or non-amplified systems
• Retains chimes
• Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
• ASWC-1 harness included (ASWC-1 not included)
• Retains OnStar and OE Bluetooth
• Adjustable volume for chimes and OnStar
• High level speaker input
• USB updatable
• Retains balance and fade
• Retains OE satellite and OE backup camera

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange/White – Dash Light Dimmer/Illumination
• Blue/White – Amplifier turn on
• Brown - Mute connection
• Light green – (-) Parking brake lead
• Blue/Pink – VSS (Vehicle speed sensor)
• Green/Purple – (+) Reverse trigger
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

• Enclave 2008 - and Up
• Lucerne 2006 - 2011

• DTS 2006 - 2011
• Escalade 2007 - 2012
• Escalade ESV 2007 - 2012
• Escalade EXT 2007 - 2012
• SRX 2007 - 2009

• Avalanche* 2007 - 2012
• Cheyenne* 2012 - 2013
• Equinox 2007 - 2009
• Express van (full size) 2008 - 2012
• Impala 2006 - 2013
• Monte Carlo 2006 - 2007
• Silverado Pickup* 2007 - 2013
• Silverado 2500/3500 2014 - and Up
• Suburban* 2007 - 2014
• Tahoe* 2007 - 2014
• Traverse 2009 - 2012

• Acadia 2007 - 2012
• Savanna Full Size Van 2008 - 2010
• Sierra* 2007 - 2013
• Sierra 2500/3500 2014 - and Up
• Yukon* 2007 - 2014


Hummer:
• H2 2008 - 2009


Pontiac:
• Torrent 2007 - 2009
• Vibe 2009-2009


Saturn:
• Outlook 2007 - 2010
• VUE 2008 - 2010


Suzuki:
• XL-7 2008 - 2009


*Note

*In 2012 and up, if the vehicle is equipped with OE navigation you must use the GMOS-LAN-07.
