Axxess AX-GMLAN29-SWC 2006 - and Up GM radio replacement LAN-BUS interface with steering wheel and navigation outputs

$139.99
Out of stock
SKU
AX-GMLAN29-SWC

Key Features

  • Buick, Cadillac, Chevrolet, GMC, Hummer, Pontiac, Saturn, Suzuki complete radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Retains factory audio system and vehicle chimes
  • Retains steering wheel controls
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Interface is designed for amplified and non-amplified audio systems

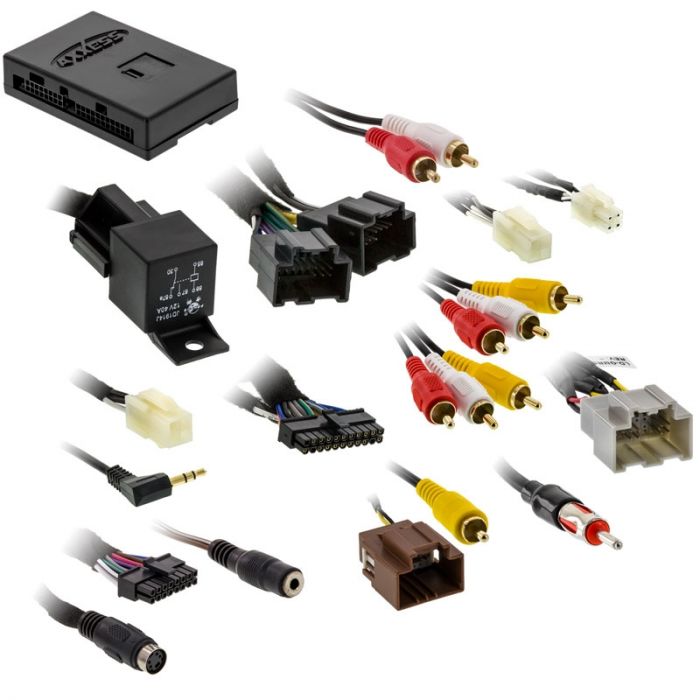

Unit includes: AX-GMLAN29-SWC Interface control box, AX-GMLAN29-SWC harness, 16-pin harness with stripped leads, 4-pin to 4-pin resistor pad harness, Female 3.5mm connector with stripped leads, Backup camera harness, RSE harness, Antenna adapter and Instruction manual

Axxess AX-GMLAN29-SWC 2006 - and Up GM radio replacement LAN-BUS interface with steering wheel and navigation outputs
    Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Provides NAV outputs (parking brake, reverse, speed sense)
  • Retains chimes
  • Retains audio controls on the steering wheel
  • Retains OnStar / OE Bluetooth
  • Adjustable OnStar level
  • Retains the factory AUX-IN jack
  • Retains the factory backup camera
  • Retains RSE (rear seat entertainment)
  • Retains SAT (satellite radio)
  • Can be used in non-amplified, or analog/digital amplified models
  • Retains balance and fade (excluding digital amplified models)
  • Includes an antenna adapter
  • Micro “B” USB updatable
  • Axxess AX-GMLAN29-SWC 2006 - and Up GM radio replacement LAN-BUS interface Instruction manual
Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Brown - Mute connection
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Yellow RCA - Factory back up camera output
  • White RCA - Left audio input (Overhead monitor)
  • Red RCA - Right audio input (Overhead monitor)
  • Yellow RCA - Factory overhead video input
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)


Fitments:

Buick
  • 2008 - 2017 Enclave
  • 2006 - 2011 Lucern
    Cadillac
  • 2006 - 2011 DTS
  • 2007 - 2011 Escalade
  • 2007 - 2011 Escalade ESV
  • 2007 - 2011 Escalade EXT
  • 2007 - 2009 SRX
    Chevrolet
  • 2007 - 2013 Avalanche
  • 2012 - 2015 Captiva Sport
  • 2007 - 2009 Equinox
  • 2008 - and Up Express (without factory navigation)
  • 2006 - 2013 Impala
  • 2014 - 2016 Impala Limited
  • 2006 - 207 Monte Carlo
  • 2007 - 2013 Silverado 1500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2014 - 2014 Silverado 2500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2014 - 2014 Silverado 3500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2007 - 2014 Suburban (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2007 - 2014 Tahoe (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2009 - 2017 Traverse
    GMC
  • 2007 - 2016 Arcadia
  • 2017 - 2017 Arcadia Limited
  • 2008 - and Up Savana (For 2013-2015 models equipped with NAV use the AX-GMLAN44-SWC)
  • 2007 - 2013 Sierra 1500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2014 - 2014 Sierra 2500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2014 - 2014 Sierra 3500 (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2007 - 2014 Yukon (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
  • 2007 - 2014 Yukon XL (For 2012-up models equipped with NAV use the AX-GMLAN44-SWC)
    Hummer
  • 2008 - 2009 H2
    Pontiac
  • 2007 - 2009 Torrent
    Saturn
  • 2007 - 2010 Outlook
  • 2008 - 2010 Vue
    Suzuki
  • 2007 - 2009 XL-7
More Information
Manufacturer Axxess
Part Number AX-GMLAN29-SWC
Integration Module Radio Replacement and Steering Wheel
Wiring harness function Replace Factory Radio
Steering Wheel Control Yes, Built in control
Speaker level inputs Yes
Warranty 1 Year
Return period 30 days
Exchange period 30 days
