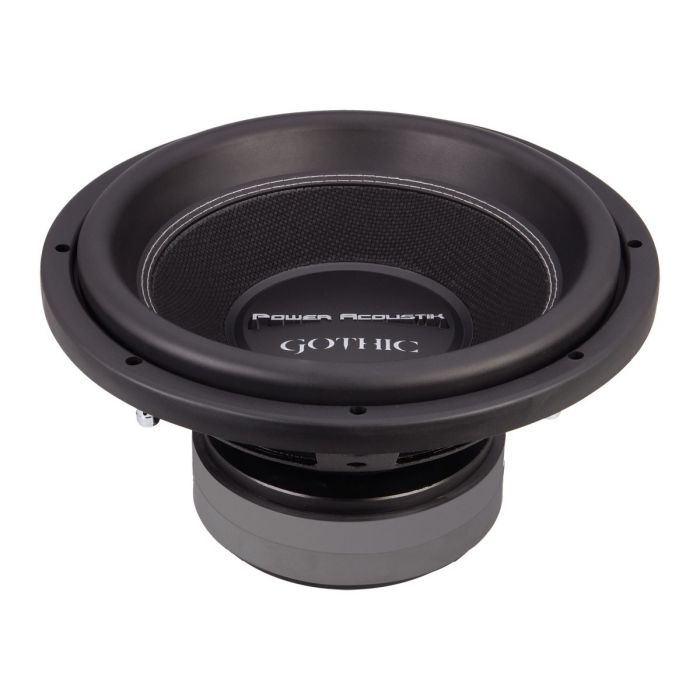

Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil
$109.99
Out of stock
SKU
GW312
Expert Knowledge
Talk to a specialist
- 12 inch Subwoofer with 2 ohm Dual voice coil
- Oversized 254 ounce magnet and motor structure for extreme power handling
- Twisted & Woven Flax Fiber Cone
- Extended Excursion NBR Surround
- 1001 - 1500 Watts RMS power handling
Unit Includes: 12 inch Dual 2 ohm voice coil subwoofer, Mounting Hardware, and Instruction manual
Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil
Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil
-
Features:
- 12 inch Subwoofer with dual 2 ohm voicecoils
- Oversized 254 ounce magnet and motor structure for extreme power handling and output
- Overcompensating Motor Structure for Increased Magnetic Strength
- 12mm T-Yoke & Top Plate Improve Low-Frequency Dynamics
- Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
- Die Cast Aluminum Heat Sink Dust Cap Absorbs Voice Coil Heat
- Aluminum Dust Cap Fins Dissipate Heat & Strengthen Cone
- Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
- 5” 4-Layer Voice Coil w/ Large Gauge Wire Increases Power
- High-Temperature Tolerance Adhesives Resist Thermal Failure
- Nickel Plated 8ga Spring-Loaded Compression Wire Terminals
- Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
- High-Density Polyether Foam Surround w/ UV & Chemical Protection
- Dual Poly-Cotton Suspension Dampen Violent Accelerations
- Stitched Voice Coil Leads Prevent Potential Damage
- 1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
- Instruction Manual - Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer
- Sold Individually
-
Power Handling Max:
- 2500 Watts maximum power handling
-
Power Handling RMS:
- 1001 - 1500 Watts nominal continuous power handling RMS
-
Quick Specs:
- Impedance: 2 ohm Ohm per coil
- Frequency response: 25Hz - 250Hz
- Sensitivity: 83.6 dB @ 1Watt / 1meter
-
Dimensions:
- Mounting Depth:6.5 inches
- Mounting Diameter: 11.5inches
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | GW3-12 |
| Driver Size | 12 inch |
| Subwoofer Shape | Round |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | 2 ohm |
| FS | 34.29 |
| QES | 1.57 |
| QMS | 5.29 |
| QTS | 1.21 |
| RE | 2.14 |
| VAS | 2.14 ft3 |
| Xmax (millimeters) | 0 |
| Sensitivity | 83.6 dB |
| Frequency Response | 25Hz - 250Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 1001 - 1500 Watts |
| Power Handling Peak | 2500 Watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | $6.50 |
| Cutout Dimensions | $11.50 |
| Sealed Enclosure Recommended Size | 1.5 |
| Ported Enclosure Recommended Size | 2.25 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 709483046450 |
| Return period | 30 days |
| Exchange period | 30 days |
