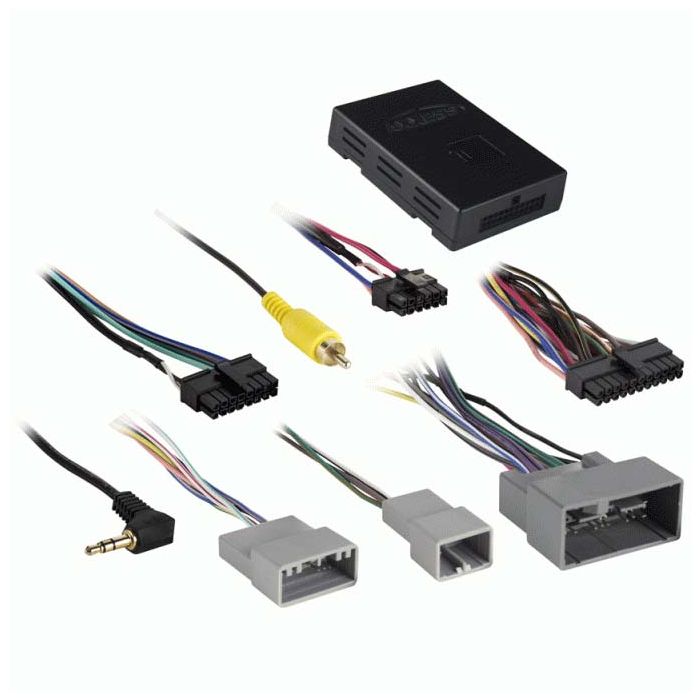

Metra HDCC-02 Honda LaneWatch camera retention interface
Expert Knowledge
Talk to a specialist
- Fits 2014 - 2015 select Honda vehicles
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in non-amplified audio systems
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
Metra HDCC-02 Honda LaneWatch camera retention interface
The HDCC-02 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM Honda vehicle and LaneWatch system. The HDCC-02 is designed for 2014 - 2015 Honda Civic and 2015 CRV vehicles that use have the LaneWatch system. The interface retains full functionality of the OEM Clock, Backup camera, and LaneWatch system as well as all safety and warning chimes.
The HDCC-02 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting fader and blanace as well. In addition to these features, the HDCC-02 now has the required outputs for the installation of a navigation radio.
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified or non-amplified systems
- Retains LaneWatch camera
- Retains ability to change factory clock and date
- Retains factory AUX-IN jack
- Retains factory backup camera
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- ASWC-1 harness included (ASWC-1 not included)
- High level speaker input
- USB updatable
- Retains balance and fade
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Black/Yellow - OnStar volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe - Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Fitments:
Honda
- 2014 - 2015 Civic
- 2015 - 2015 CR-V
| Manufacturer | Metra |
|---|---|
| Part Number | HDCC-02 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
