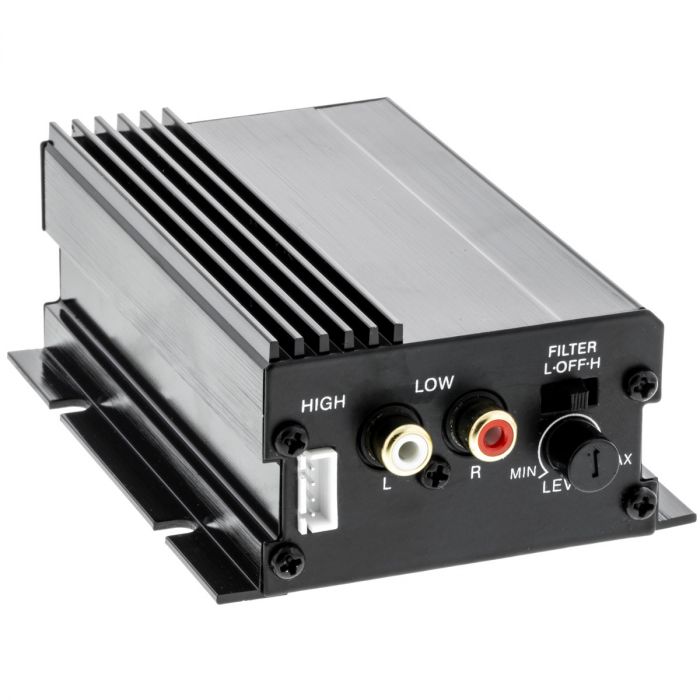

Quality Mobile Video HMA100 Compact 2-Channel Class-AB Power Amplifier
- Compact Class-AB amplifier for compact size excellent efficiency
- 15 Watts x 2 at 4 ohms
- RCA and speaker level input for easy integration to factory audio systems
- 4-3/8" (L) x 1-1/2" (H) x 3-1/4" (W)
Quality Mobile Video HMA100 Compact 2-Channel Class-AB Power Amplifier
- Features
- Class-AB amplifier for compact size excellent efficiency
- Amplifier is ideal for motorcycles and other vehicles where conventional amplifiers will not fit
- Extruded aluminum heat sink design
- Speaker Level Input for easy integration to factory audio systems
- Frequency Response: 20Hz - 20KHz, -12dB/oct (A/B)
- Signal to Noise Ratio: 90dB
- Stereo separation: 55dB
- Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
- Variable Low-pass electronic crossover (50 - 200 Hz)
- Variable High-pass electronic crossover (50 - 200 Hz)
- Pre-Amp features:
-
Max Power Output
- 60 Watts
- RMS Power Output
- 15 Watts x 2 at 4 ohms
- Inputs and Outputs
- 1 - Speaker Level input (Stereo)
- 1 - Pair of RCA Audio Inputs (Stereo)
- Dimensions
- 102mm x 31mm x 78mm
- 4-3/8" (L) x 1-1/2" (H) x 3-1/4" (W)
Manufacturer | Quality Mobile Video |
---|---|
Part Number | HMA100 |
Amplifier Topology Class | Class AB |
Number of Channels | 2 Channel |
Total RMS Power at 1 ohm | 0.00 |
Total RMS Power at 2 ohm | 0.00 |
Total RMS Power at 4 ohm | 35.00 |
RMS Output per Channel (x1 at 4 ohms) | 0.00 Watts |
RMS Output per Channel (x2 at 4 ohms) | 17.50 Watts |
RMS Output per Channel (x4 at 4 ohms) | 0.00 Watts |
Total Peak Power Output | 60.00 (Watts) |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Bridged Mode | Not Bridgeable |
Minimum Impedance in Un-Bridged Mode | 4 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
RCA Pre-amp Audio outputs | None |
Preamp voltage | 200 mV - 6 V |
Speaker level inputs | Yes |
Gain Control | Yes |
Bass Knob / Remote Gain | No |
Built in Crossover | High-pass, Low-pass |
Cooling Fan | No |
Color | Black |
Warranty | 90 days |
Recommended Power Wire Gauge | 10 Gauge |
Overall Height | 1.50 inches |
Overall Length | 4.38 inches |
Overall Width | 3.13 inches |
CEA2006 Compliant | No |
Return period | 30 days |
Exchange period | 30 days |
