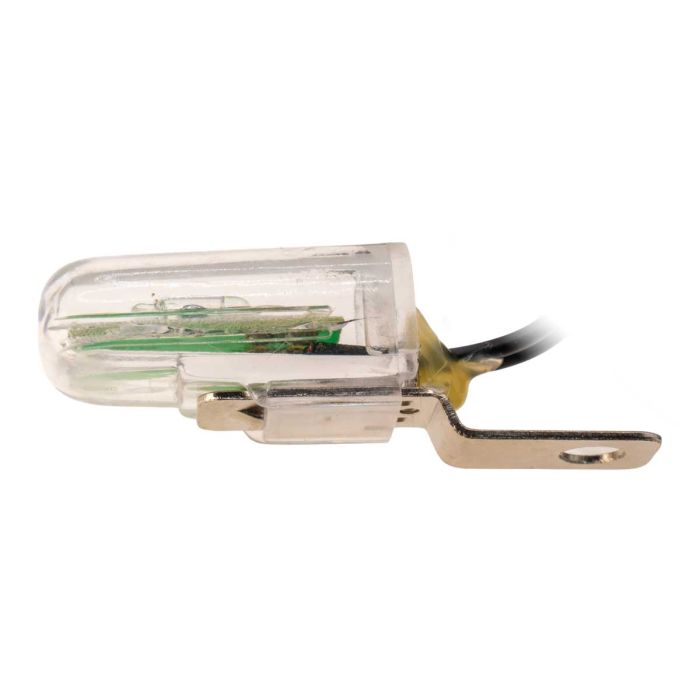

Metra IBMS-5 Clear View Mercury Tilt Switch
$10.99
In stock
SKU
IBMS-5
Expert Knowledge
Talk to a specialist
- Tilt design SPST mercury switch that opens and closes as the switch is tilted in opposite directions
- Includes metal mounting bracket with single mounting holes
- 5 Amp 12 Volt DC rated
The Metra IBMS-5 is a clear-view SPST mercury tilt switch designed to open and close an electrical circuit when tilted in opposite directions. It operates from 8 to 15 volts DC and is ideal for car alarm triggers, trunk lights, hood lights, and custom automotive projects. Rated for up to 5 amps at 12 volts DC, the switch includes a metal mounting bracket for secure installation. A relay is required when controlling loads that draw more than 5 amps.
Unit includes: (1) SPST Mercury tilt switchMetra IBMS-5 Clear View Mercury Tilt Switch
Features:
- Tilt design SPST mercury switch that opens and closes as the switch is tiled in opposite directions
- Low voltage design, will need to be used with a relay to switch larger amounts of current
- Includes metal mounting bracket with single mounting holes
- Designed for 12 volt applications
- Made in the China
- 5 Amp 12 Volt DC rated
Dimensions:
- Overall with bracket: 2-1/4" (D) x 1/2" (W) x 7/8" (H)
- Without bracket: 1-3/4" (D) x 1/2" (W) x 5/8" (H)
| Manufacturer | Metra |
|---|---|
| Part Number | IBMS-5 |
| Pole switching type | SPST (Single pole Single throw) |
| Current capacity | 5 Amp |
| Operation Voltage | 8-15 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
